10PM
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Diodes
- Documentation score
- 1/5
- Last edited
- 09 OCT 2026
Specifications
- Type
- single-phase rectifier bridge
- Repetitive peak reverse voltage (VRRM)
- 50–400 V (see Variants)
- Surge forward current (IFSM, 10 ms)
- 180 A
- I²t
- 162 A²s
- DC output current (Id)
- 10 A
- Package
- 10PM
Sources: [1]
Variants (4)
| Compare | ||
|---|---|---|
| 10PM05 | 50 | |
| 10PM1 | 100 | |
| 10PM2 | 200 | |
| 10PM4 | 400 |
Click a column heading to sort. „+” adds a variant to the comparison (10PM).
Description

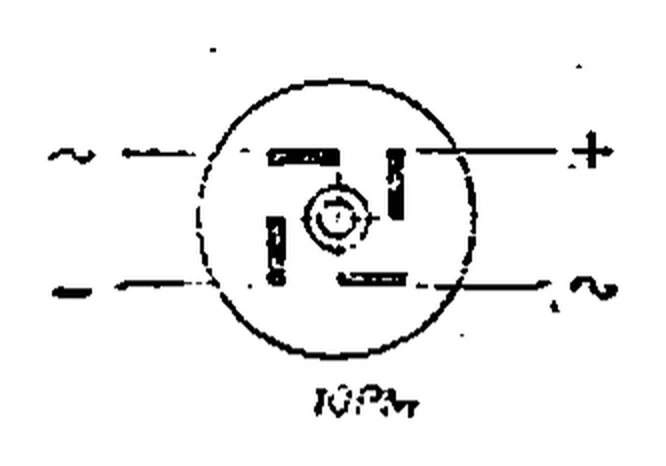

The 10PM is a series of single-phase rectifier bridges made in Romania by IPRS Băneasa, listed in the Agenda radioelectronistului (2nd edition, 1989) with a repetitive peak reverse voltage VRRM of 50–400 V and a DC output current Id of 10 A [1]. Its codes are in the Variants table; the package drawing is in the Gallery.
The codes are printed „10 PM05” … „10 PM4”; the table gives no VRSM, IFRM, Vd or Vef for them [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 27.1.2 „Diode redresoare produse în R.S.R.”, „Punți redresoare”, pp. 500–501
