B40C1500…B500C1500
IPRS Băneasa
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Diodes
- Documentation score
- 1/5
- Last edited
- 09 OCT 2026
Specifications
- Type
- single-phase rectifier bridge
- Repetitive peak reverse voltage (VRRM)
- 80–1000 V (see Variants)
- Surge forward current (IFSM, 10 ms)
- 50 A
- I²t
- 12.5 A²s
- DC output current (Id)
- 1.5 A
- Package
- B…C1500
Sources: [1]
Variants (5)
| Compare | ||
|---|---|---|
| B40C1500 | 80 | |
| B80C1500 | 160 | |
| B125C1500 | 250 | |
| B250C1500 | 500 | |
| B500C1500 | 1000 |
Click a column heading to sort. „+” adds a variant to the comparison (B40C1500…B500C1500).
Description
The B40C1500…B500C1500 is a series of single-phase rectifier bridges made in Romania by IPRS Băneasa, listed in the Agenda radioelectronistului (2nd edition, 1989) with a repetitive peak reverse voltage VRRM of 80–1000 V and a DC output current Id of 1.5 A [1]. Its codes are in the Variants table; the package drawing is in the Gallery.

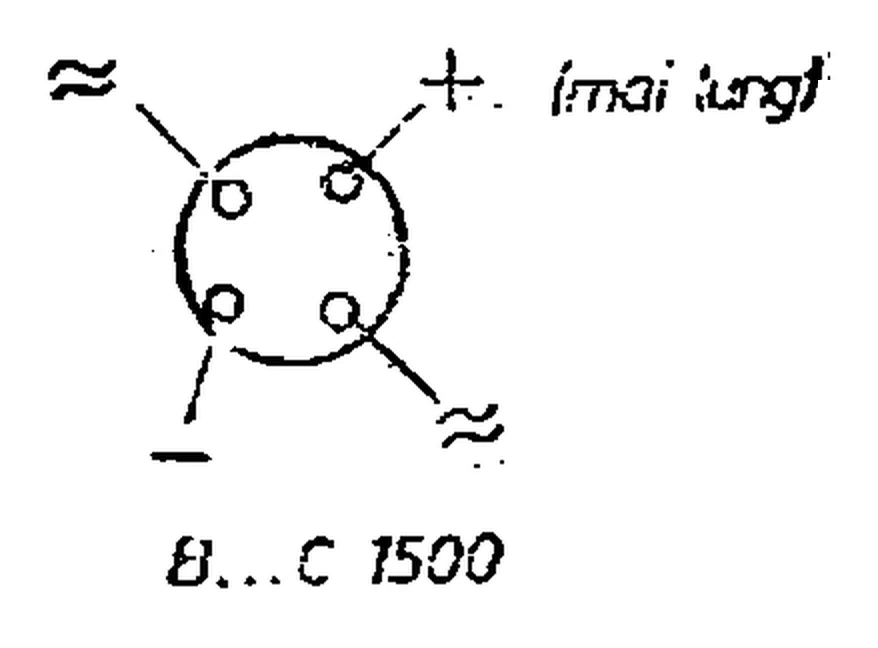

The codes are printed „B40 C1500” … „B500 C1500”; the table gives no VRSM, IFRM, Vd or Vef for them [1]. The package drawing („B…C 1500”) is a round case with four leads, two marked ≈ and the + lead marked „(mai lung)” (longer) [1].
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 27.1.2 „Diode redresoare produse în R.S.R.”, „Punți redresoare”, pp. 500–501
