RA032…RA420
IPRS Băneasa
- Also known as
- RA120, RA120R, RA220, RA220R
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Diodes
- Documentation score
- 1/5
- Last edited
- 25 OCT 2026
Specifications
- Material
- Si
- Type
- rectifier diode
- Repetitive peak reverse voltage (VRRM)
- 30–400 V (see Variants)
- Max. RMS forward current (IFRMSM)
- 26 A
- Max. average forward current (IFAVM)
- 20 A
- IFAVM given at
- TC = 90 °C (see Variants)
- Repetitive peak forward current (IFRM)
- 180 A
- Surge forward current (IFSM, 10 ms)
- 250 A
- I²t
- 312 A²s
- Forward voltage (VF)
- 1.4 V
- VF measured at IF
- 60 A (see Variants)
- Threshold voltage (VF0)
- 1.25 V (see Variants)
- Slope resistance (rF)
- 2.5 mΩ (see Variants)
- Reverse current (IR)
- 3 mA
- Max. junction temperature (Tj)
- 150 °C (see Variants)
- Package
- P auto
Variants (10)
| Note | Compare | |||||||
|---|---|---|---|---|---|---|---|---|
| RA032 | 30 | — | — | — | — | — | ||
| RA032R | 30 | — | — | — | — | — | reverse polarity | |
| RA052 | 50 | — | — | — | — | — | ||
| RA052R | 50 | — | — | — | — | — | reverse polarity | |
| RA120 | 100 | TC = 90 °C | 60 | 1.25 | 2.5 | 150 | ||
| RA120R | 100 | TC = 90 °C | 60 | 1.25 | 2.5 | 150 | reverse polarity | |
| RA220 | 200 | TC = 90 °C | 60 | 1.25 | 2.5 | 150 | ||
| RA220R | 200 | TC = 90 °C | 60 | 1.25 | 2.5 | 150 | reverse polarity | |
| RA420 | 400 | — | — | — | — | — | ||
| RA420R | 400 | — | — | — | — | — | reverse polarity |
Click a column heading to sort. „+” adds a variant to the comparison (RA032…RA420).
Description
The RA032…RA420 is a series of silicon rectifier diodes made in Romania by IPRS Băneasa, listed in the Agenda radioelectronistului (2nd edition, 1989) with a repetitive peak reverse voltage VRRM of 30–400 V and a maximum average forward current of 20 A [1]. Its codes are in the Variants table; the package drawing is in the Gallery.
The package drawing is not named in the 2nd edition; the 1st edition of the Agenda (1983) calls the same package of the RA diodes „P auto” [1][2].

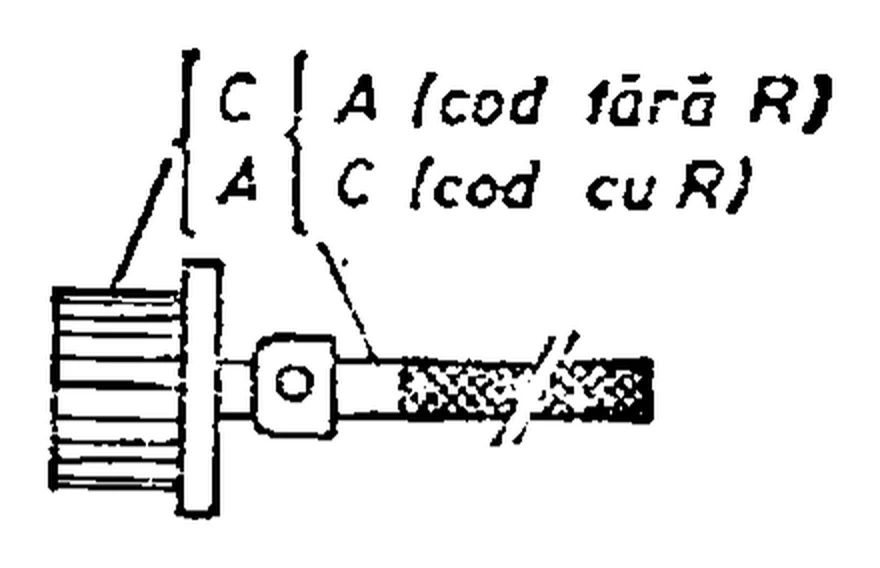

Each code also exists with R at the end (printed „(R)”); on the package drawing the stud is the cathode for the codes without R and the anode for the codes with R [1].

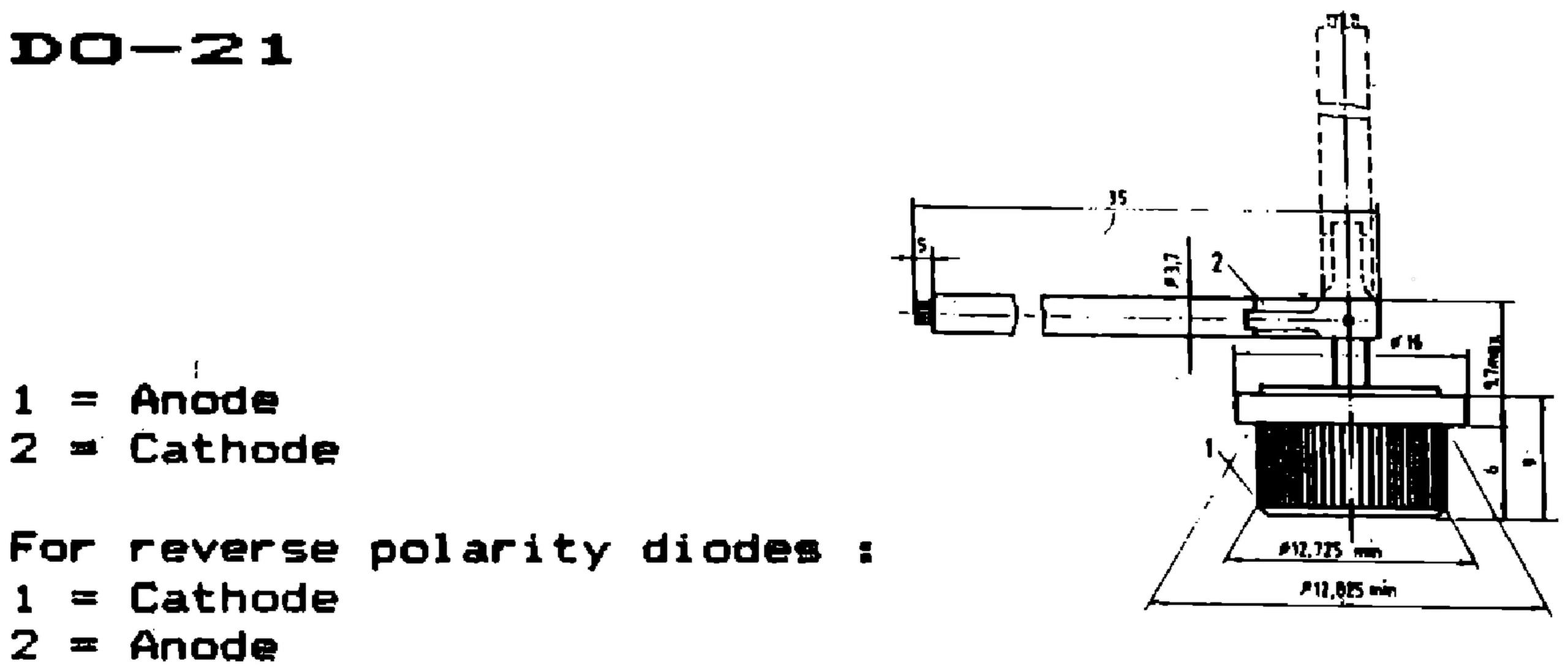

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the RA120 and RA220 among the „Standard rectifiers ( IFAVM < 100 A )” of its „Rectifiers” section [3]. The catalog values this page did not have (IFAVM temperature, IF of VF, VF0, rF, TJM) are under Variants [3]. In this table VF and IR are maximum values (at the IF and TJ given), VF0 is a maximum and i²t is printed in kA²s; the codes marked „(R)” are also made with reverse polarity [3]. For all the codes of this table the catalog gives IFRM 70 A; package DO-21 (elsewhere on this page: IFRM 180 A; package P auto) [3].
Measurement conditions (as printed in the table): IFRMSM at Tamb = 90 °C; IFAVM at Tamb = 90 °C; VF at IF = 60 A; IR at Tamb = 150 °C; IFSM for 10 ms.
