74LS161

IPRS Băneasa

Also known as
54LS161
Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
synchronous 4-bit counters (binary, direct clear)
Package
MP-117
Logic family
TTL-LS
Operating temperature range
−55…+125 °C, 0…+70 °C (see Variants)
Supply voltage (VS)
4.50…5.50 V, 4.75…5.25 V (see Variants)

Sources: [1][2]

Variants (2)

Note
54LS161−55…+125 °C4.50…5.50 Vpreliminary data
74LS1610…+70 °C4.75…5.25 Vpreliminary data

Click a column heading to sort. „+” adds a variant to the comparison (74LS161).

Description

The 74LS161 is a TTL-LS digital integrated circuit of the 54/74LS series of IPRS Băneasa: synchronous 4-bit counters (binary, direct clear) [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the 54LS161 and 74LS161 (both marked as preliminary data), as synchronous 4-bit counters (binary, direct clear) in an MP-117 package [1]. By the catalog’s table of families, the 74LS161 works at 0…+70 °C from a 4.75…5.25 V supply, and the 54LS161 at −55…+125 °C from 4.50…5.50 V [2].

Gallery

IPRS Băneasa 74LS161: Pinout (1990 catalogue)No image available

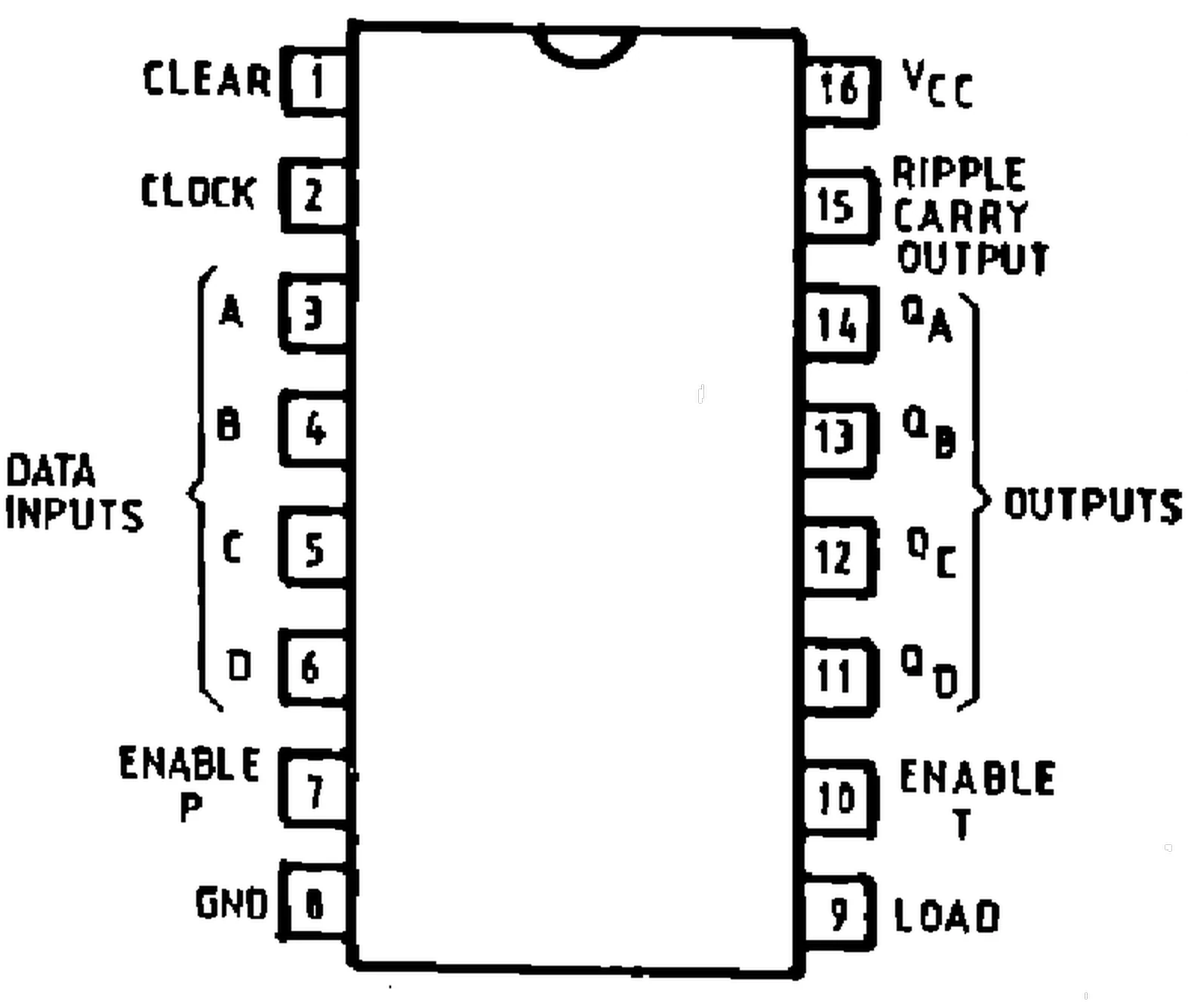

Pinout (1990 catalogue)
