General view

74LS174

IPRS Băneasa

Also known as
54LS174
Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
hex D-type flip-flops (single-rail outputs, common direct clear)
Package
MP-117
Logic family
TTL-LS
Operating temperature range
−55…+125 °C, 0…+70 °C (see Variants)
Supply voltage (VS)
4.50…5.50 V, 4.75…5.25 V (see Variants)

Sources: [1][2]

Variants (2)

Note
54LS174−55…+125 °C4.50…5.50 Vpreliminary data
74LS1740…+70 °C4.75…5.25 Vpreliminary data

Click a column heading to sort. „+” adds a variant to the comparison (74LS174).

Description

The 74LS174 is a TTL-LS digital integrated circuit of the 54/74LS series of IPRS Băneasa: hex D-type flip-flops (single-rail outputs, common direct clear) [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the 54LS174 and 74LS174 (both marked as preliminary data), as hex D-type flip-flops (single-rail outputs, common direct clear) in an MP-117 package [1]. By the catalog’s table of families, the 74LS174 works at 0…+70 °C from a 4.75…5.25 V supply, and the 54LS174 at −55…+125 °C from 4.50…5.50 V [2].

Gallery

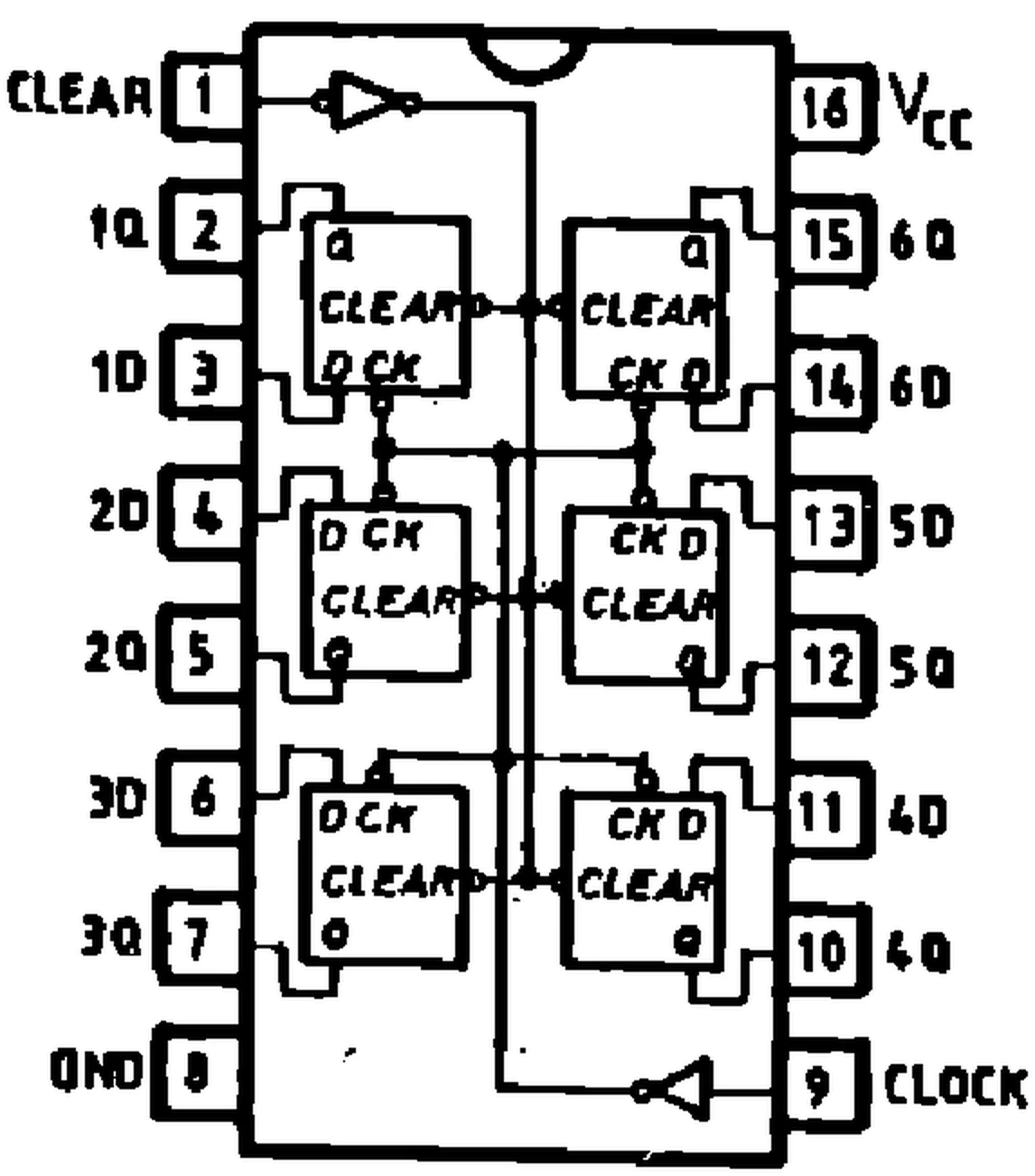

IPRS Băneasa 74LS174: Pinout (1990 catalogue)No image available
Pinout (1990 catalogue)
IPRS Băneasa 74LS174: MP-117 case outline (dimensions in mm)No image available
MP-117 case outline (dimensions in mm)

Documents

No documents available yet.

References

  1. [1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „T.T.L. families”, p. 1-24
  2. [2]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „General informations”, „Basic characteristics”, p. 1-XX
