74LS21

IPRS Băneasa

Also known as
54LS21
Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
dual 4-input AND gates
Package
TO-116
Logic family
TTL-LS
Operating temperature range
−55…+125 °C, 0…+70 °C (see Variants)
Supply voltage (VS)
4.50…5.50 V, 4.75…5.25 V (see Variants)

Sources: [1][2]

Variants (2)

Note
54LS21−55…+125 °C4.50…5.50 Vpreliminary data
74LS210…+70 °C4.75…5.25 V

Click a column heading to sort. „+” adds a variant to the comparison (74LS21).

Description

The 74LS21 is a TTL-LS digital integrated circuit of the 54/74LS series of IPRS Băneasa: dual 4-input AND gates [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the 54LS21 (marked as preliminary data) and the 74LS21, as dual 4-input AND gates in a TO-116 package, with the logic function Y = A·B·C·D [1]. By the catalog’s table of families, the 74LS21 works at 0…+70 °C from a 4.75…5.25 V supply, and the 54LS21 at −55…+125 °C from 4.50…5.50 V [2].

Gallery

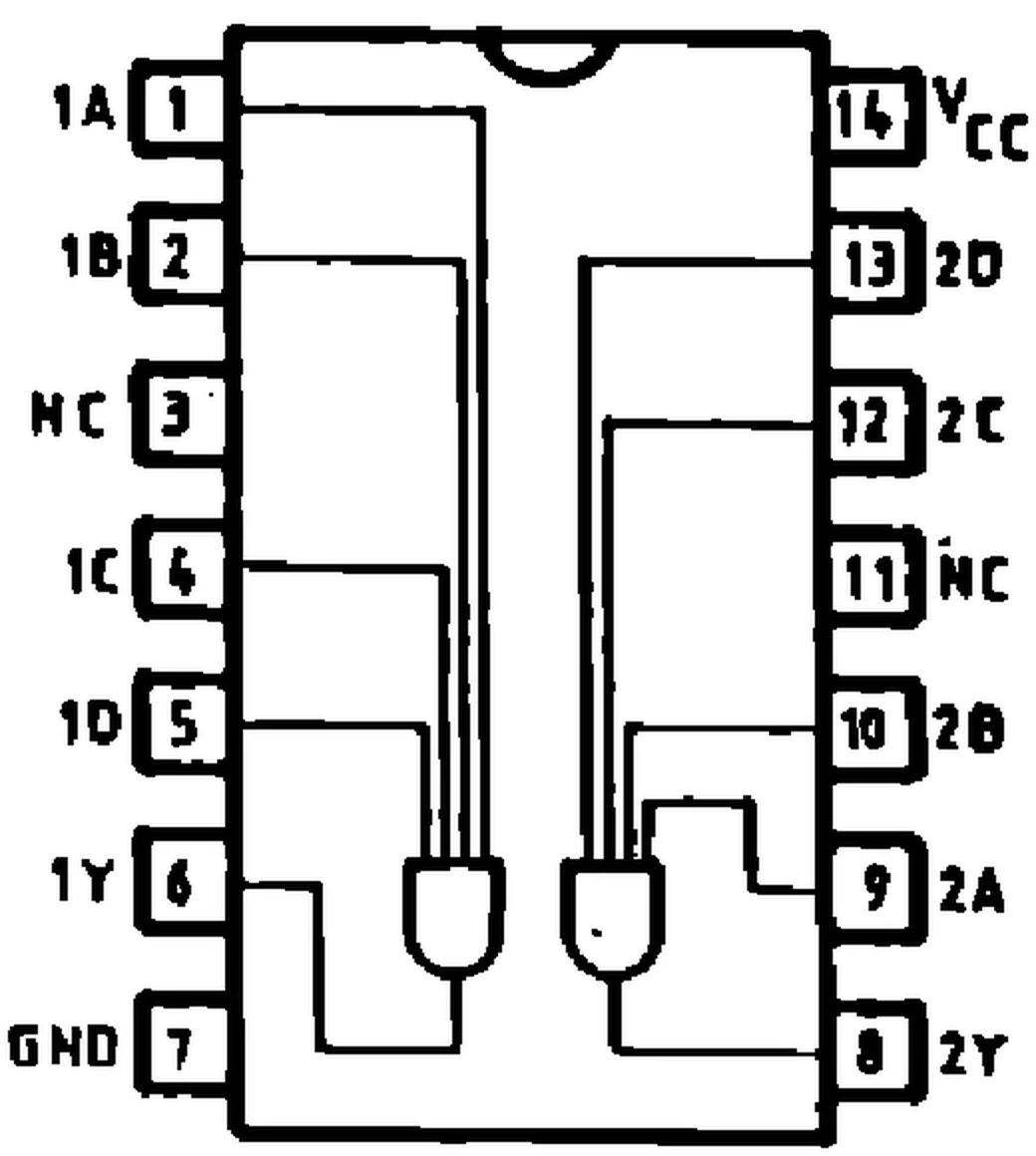

IPRS Băneasa 74LS21: Pinout (1990 catalogue)No image available
