General view

74LS266

IPRS Băneasa

Also known as
54LS266
Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
quad 2-input exclusive-NOR gates with open-collector outputs
Package
TO-116
Logic family
TTL-LS
Operating temperature range
−55…+125 °C, 0…+70 °C (see Variants)
Supply voltage (VS)
4.50…5.50 V, 4.75…5.25 V (see Variants)

Sources: [1][2]

Variants (2)

Note
54LS266−55…+125 °C4.50…5.50 Vpreliminary data
74LS2660…+70 °C4.75…5.25 Vpreliminary data

Click a column heading to sort. „+” adds a variant to the comparison (74LS266).

Description

The 74LS266 is a TTL-LS digital integrated circuit of the 54/74LS series of IPRS Băneasa: quad 2-input exclusive-NOR gates with open-collector outputs [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the 54LS266 and 74LS266 (both marked as preliminary data), as quad 2-input exclusive-NOR gates with open-collector outputs in a TO-116 package, with the logic function Y = ¬(A ⊕ B) = A·B + ¬A·¬B [1]. By the catalog’s table of families, the 74LS266 works at 0…+70 °C from a 4.75…5.25 V supply, and the 54LS266 at −55…+125 °C from 4.50…5.50 V [2].

Gallery

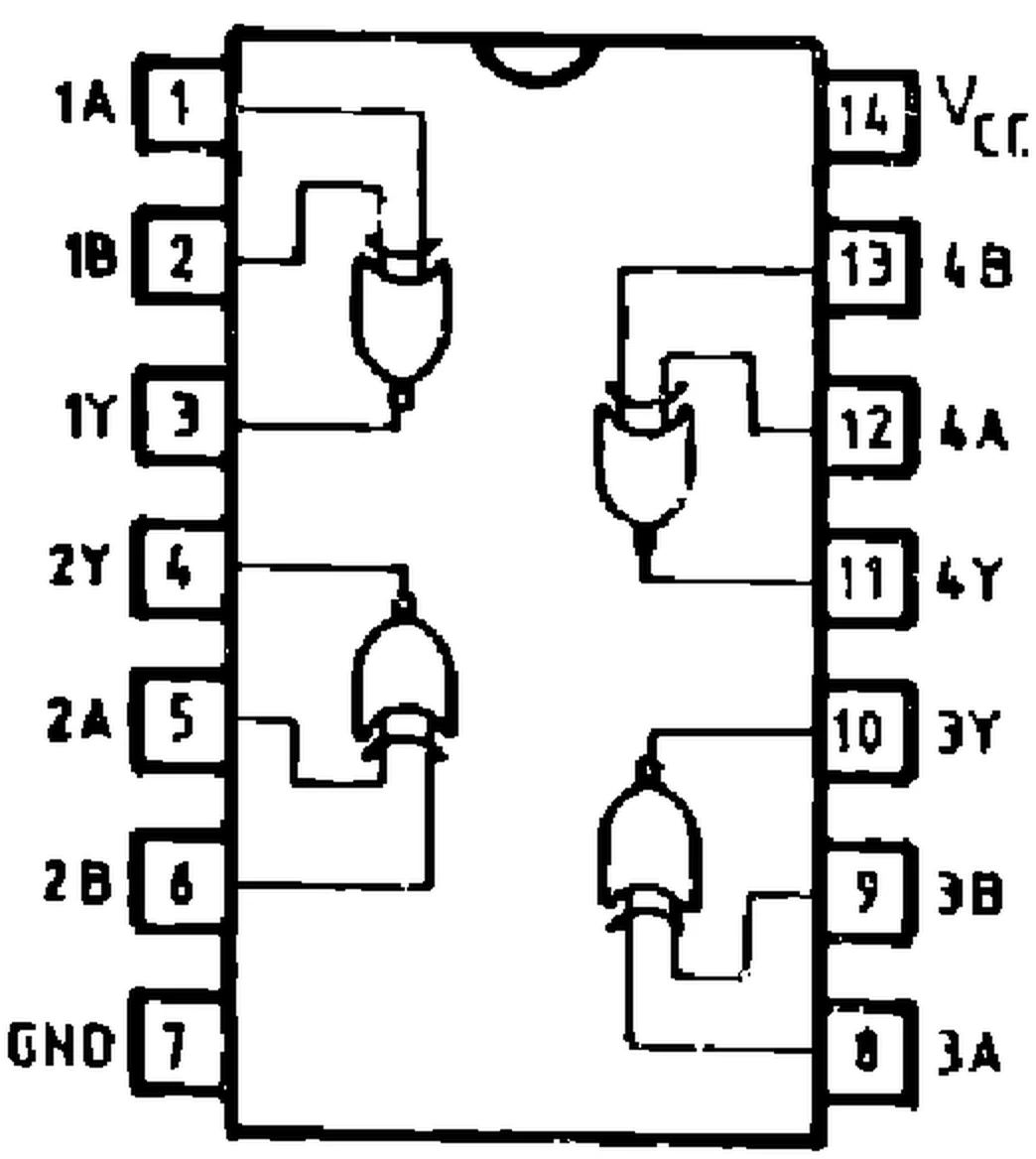

IPRS Băneasa 74LS266: Pinout (1990 catalogue)No image available
Pinout (1990 catalogue)
IPRS Băneasa 74LS266: TO-116 case outline (dimensions in mm)No image available
TO-116 case outline (dimensions in mm)

Documents

No documents available yet.

References

  1. [1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „T.T.L. families”, p. 1-26
  2. [2]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „General informations”, „Basic characteristics”, p. 1-XX
