74LS27

IPRS Băneasa

Also known as
54LS27
Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
triple 3-input NOR gates
Package
TO-116
Logic family
TTL-LS
Operating temperature range
−55…+125 °C, 0…+70 °C (see Variants)
Supply voltage (VS)
4.50…5.50 V, 4.75…5.25 V (see Variants)

Sources: [1][2]

Variants (2)

Note
54LS27−55…+125 °C4.50…5.50 Vpreliminary data
74LS270…+70 °C4.75…5.25 V

Click a column heading to sort. „+” adds a variant to the comparison (74LS27).

Description

The 74LS27 is a TTL-LS digital integrated circuit of the 54/74LS series of IPRS Băneasa: triple 3-input NOR gates [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the 54LS27 (marked as preliminary data) and the 74LS27, as triple 3-input NOR gates in a TO-116 package, with the logic function Y = ¬(A+B+C) [1]. By the catalog’s table of families, the 74LS27 works at 0…+70 °C from a 4.75…5.25 V supply, and the 54LS27 at −55…+125 °C from 4.50…5.50 V [2].

Gallery

IPRS Băneasa 74LS27: Pinout (1990 catalogue)No image available

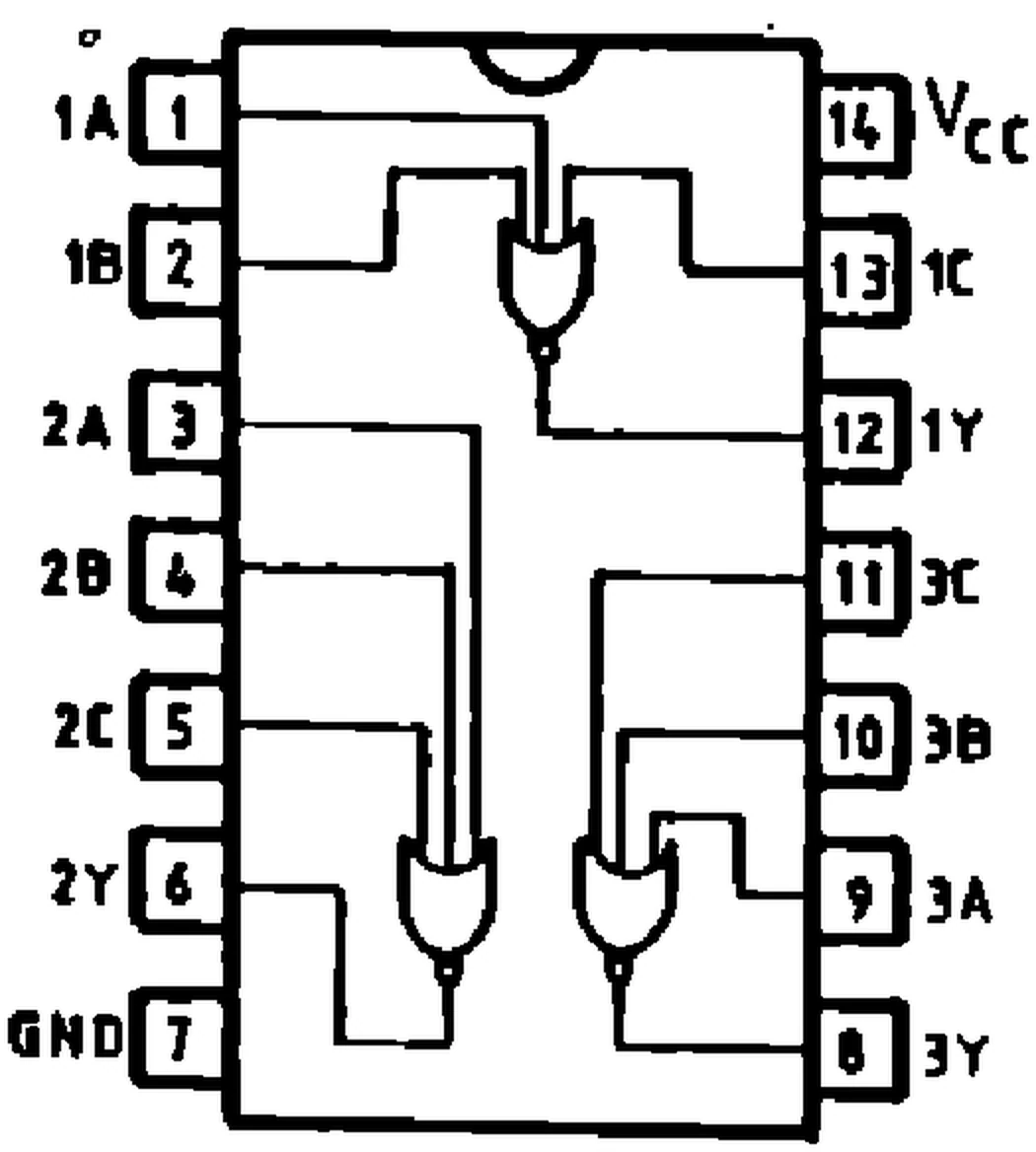

Pinout (1990 catalogue)
