74LS33

IPRS Băneasa

Also known as
54LS33
Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
quadruple 2-input NOR buffers with open-collector outputs
Package
TO-116
Logic family
TTL-LS
Operating temperature range
−55…+125 °C, 0…+70 °C (see Variants)
Supply voltage (VS)
4.50…5.50 V, 4.75…5.25 V (see Variants)

Sources: [1][2]

Variants (2)

Note
54LS33−55…+125 °C4.50…5.50 Vpreliminary data
74LS330…+70 °C4.75…5.25 Vpreliminary data

Click a column heading to sort. „+” adds a variant to the comparison (74LS33).

Description

The 74LS33 is a TTL-LS digital integrated circuit of the 54/74LS series of IPRS Băneasa: quadruple 2-input NOR buffers with open-collector outputs [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the 54LS33 and 74LS33 (both marked as preliminary data), as quadruple 2-input NOR buffers with open-collector outputs in a TO-116 package, with the logic function Y = ¬(A+B) [1]. By the catalog’s table of families, the 74LS33 works at 0…+70 °C from a 4.75…5.25 V supply, and the 54LS33 at −55…+125 °C from 4.50…5.50 V [2].

Gallery

IPRS Băneasa 74LS33: Pinout (1990 catalogue)No image available

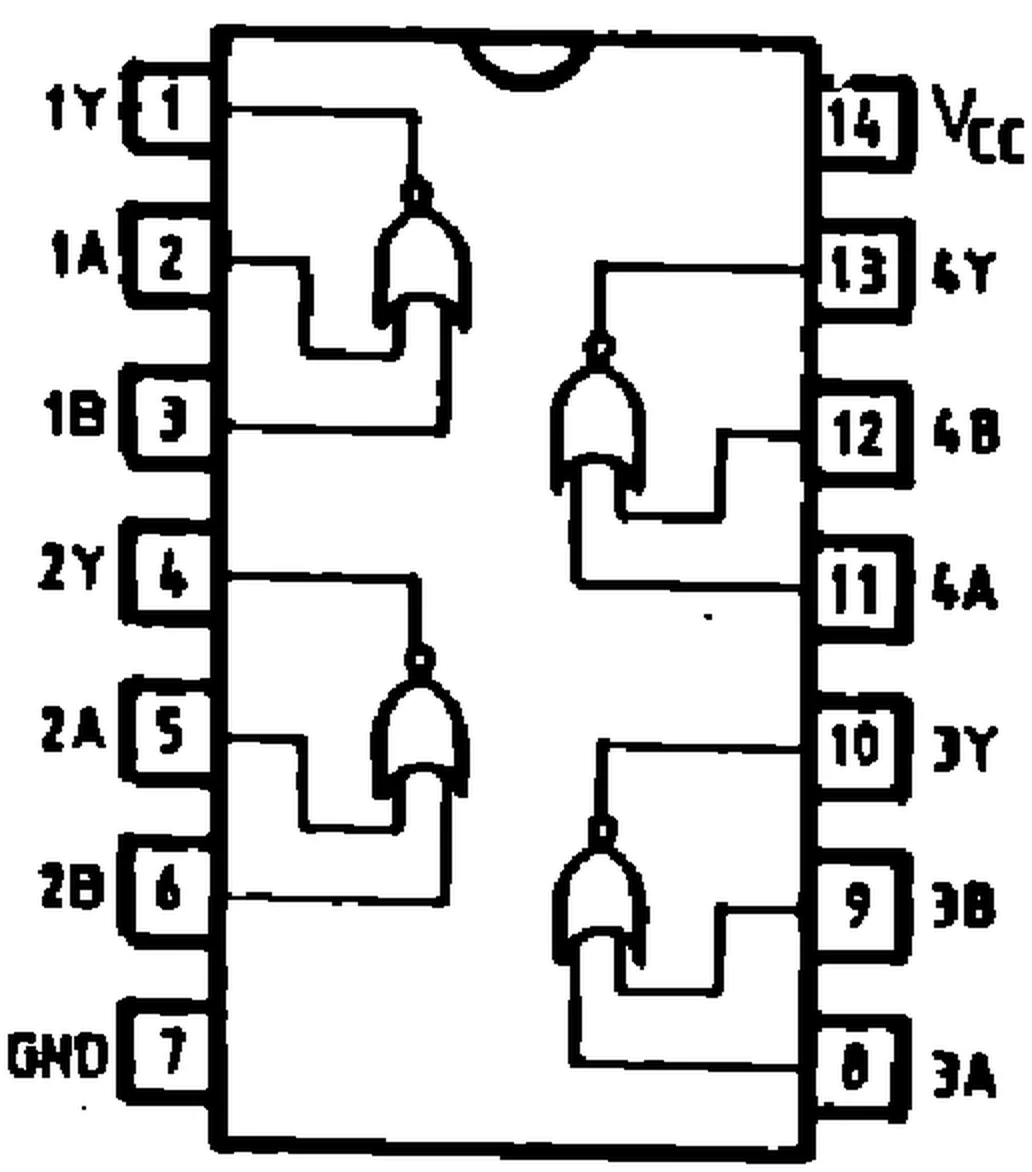

Pinout (1990 catalogue)
