βH1
IPRS Băneasa
- Also known as
- βH 1, βH2, βH 2
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Integrated circuits
- Documentation score
- 1/5
- Last edited
- 25 OCT 2026
Specifications
- Type
- linear integrated circuit
- Function
- Hall magnetic transducer
- Package
- MP-24
- Operating temperature range
- 0…+70 °C
- Supply voltage (VS)
- 0…+18 V
Sources: [1]
Variants (2)
| Note | Compare | |
|---|---|---|
| βH1 | preliminary data | |
| βH2 | preliminary data |
Click a column heading to sort. „+” adds a variant to the comparison (βH1).
Description
The βH1 is a Hall magnetic transducer integrated circuit made by IPRS Băneasa [1].
The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the βH1 and βH2, marked as preliminary data, as linear integrated circuits with a built-in transducer processed on the silicon chip: in a magnetic field, the differential output of the circuit is proportional to the magnetic field induction vector, and the circuit is meant for all the applications where a magnetic field has to be measured [1].

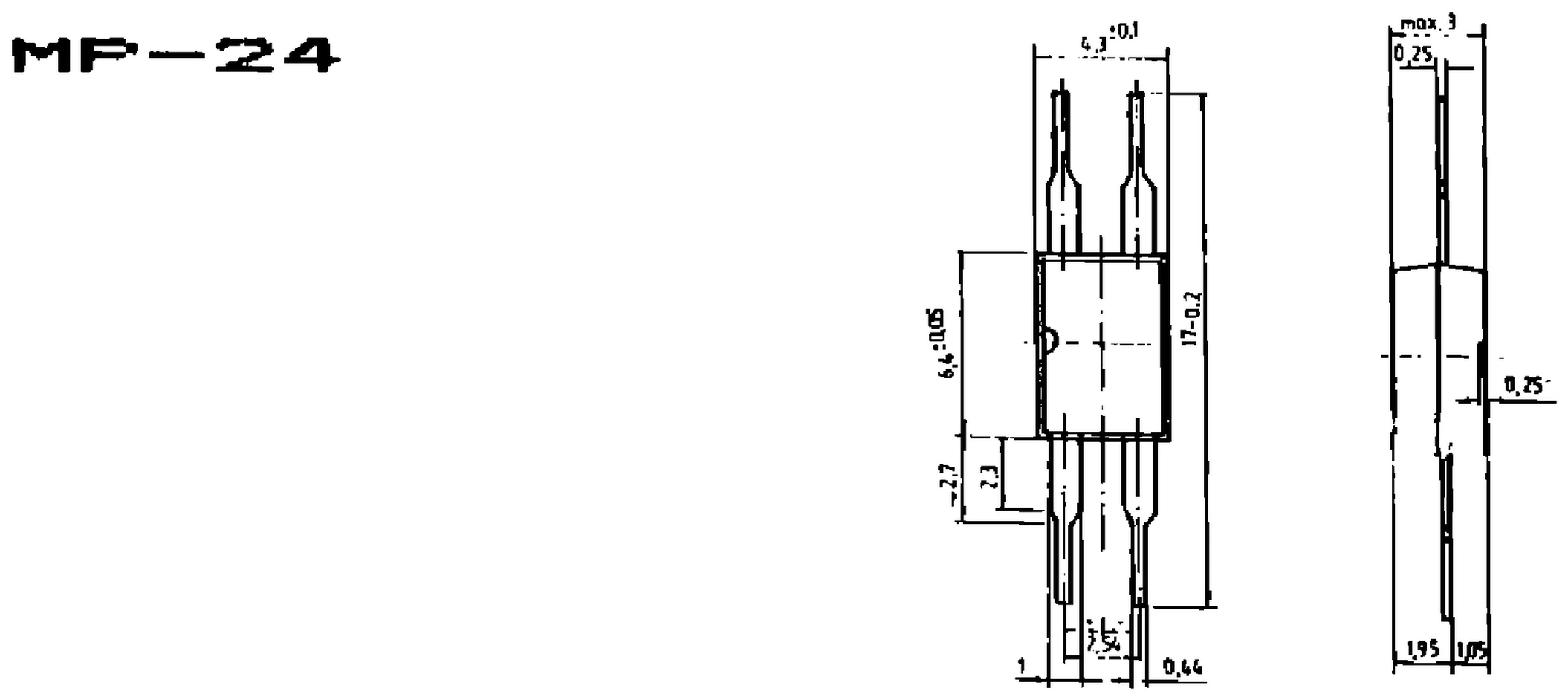

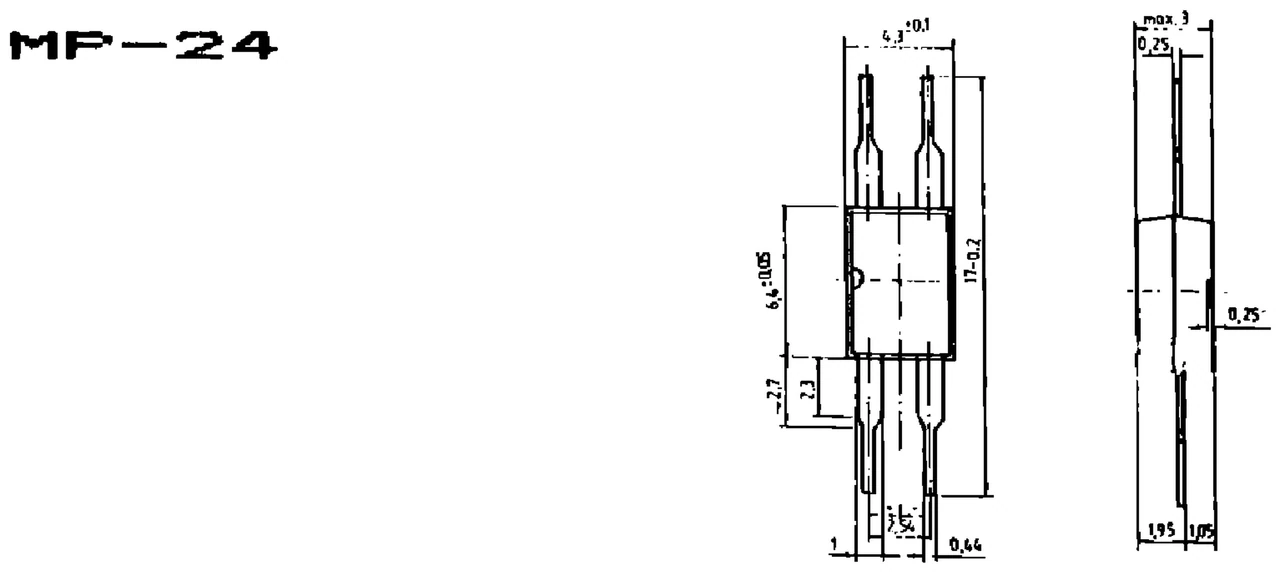

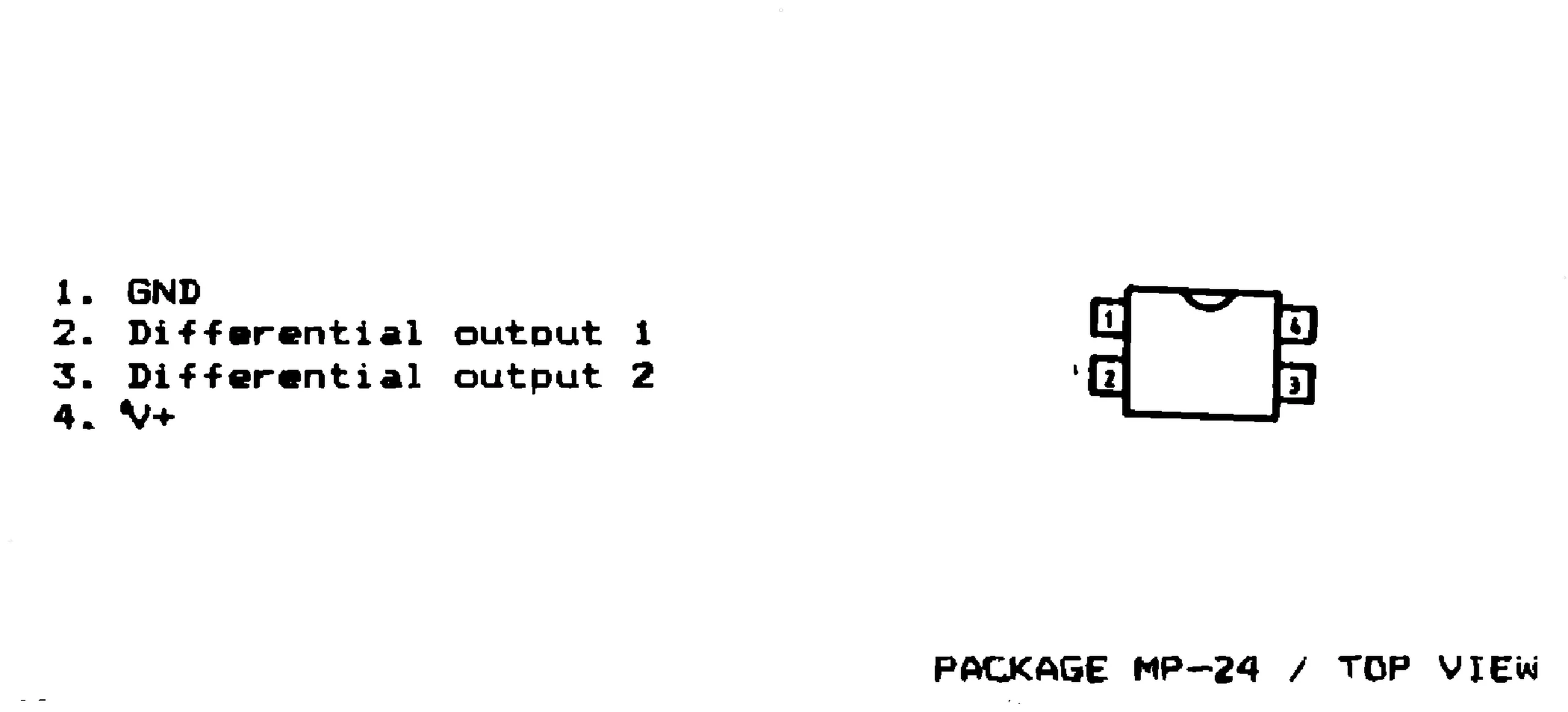

The catalog gives an operating temperature of 0…+70 °C (storage −25…+125 °C), a supply voltage of 0…+18 V, a supply current (V+ = 5 V) of at most 3 mA, an output offset voltage (V+ = 5 V) of −2…+12 mV for the βH1 and −12…+2 mV for the βH2, and an output voltage (V+ = 5 V, B = 40 mT) of at least ±8 mV [1]. Pins (MP-24, top view): 1 GND, 2 differential output 1, 3 differential output 2, 4 V+ [1].
