βP14151
IPRS Băneasa
- Also known as
- βP 14151, βPC14151
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Integrated circuits
- Documentation score
- 1/5
- Last edited
- 23 OCT 2026
Specifications
- Type
- TTL digital integrated circuit
- Function
- 3-state 8-to-1 multiplexer
- Package
- MP-117
- Logic family
- TTL
Variants (2)
| Compare | |
|---|---|
| βP14151 | |
| βPC14151 |
The sources give the same data for all these codes; they do not say how the versions differ.
Click a column heading to sort. „+” adds a variant to the comparison (βP14151).
Description
The βP14151 is a 3-state 8-to-1 multiplexer of the βP 14000 series of IPRS Băneasa, the input port of the programmable controllers built around the βP14500 1-bit controller [1].

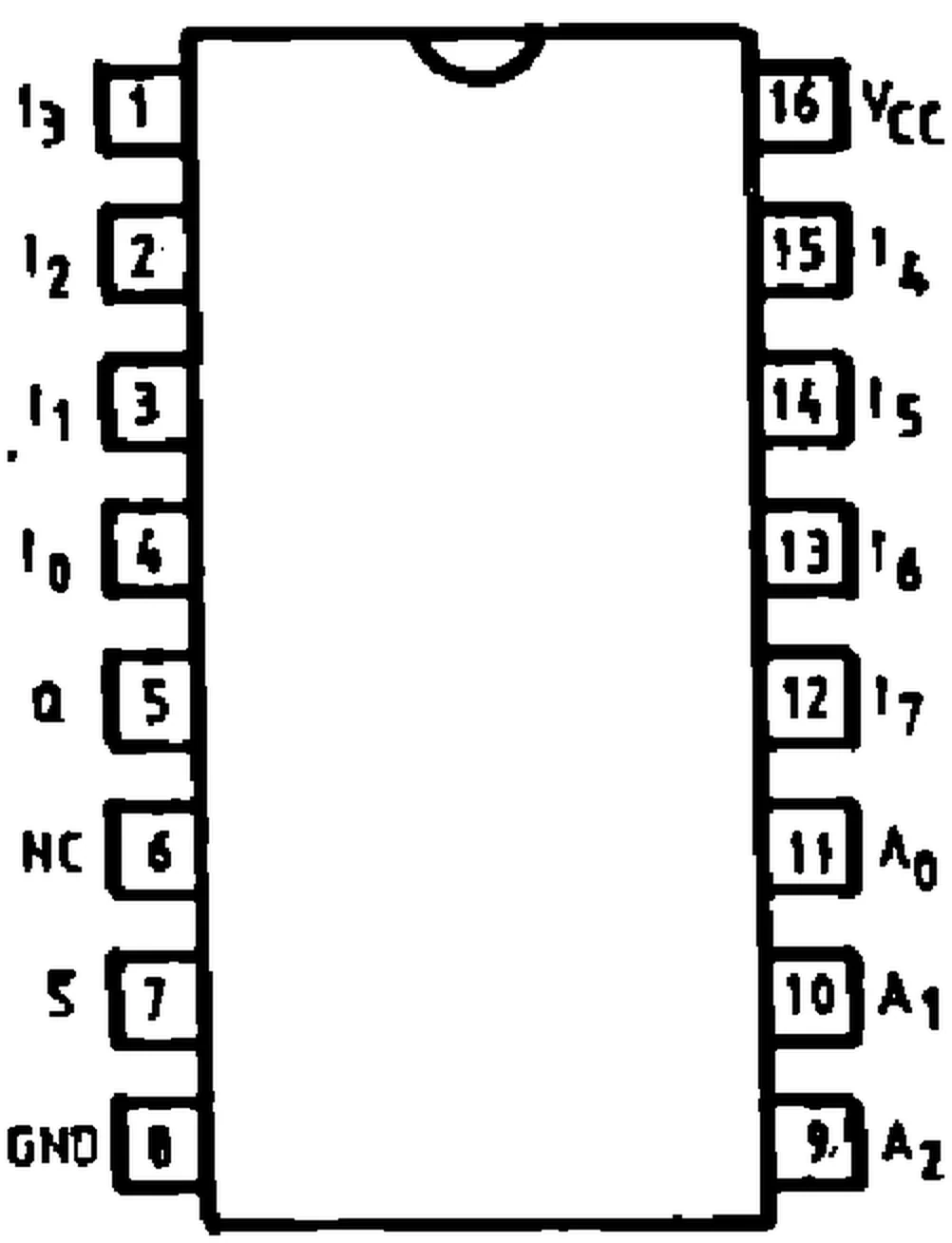

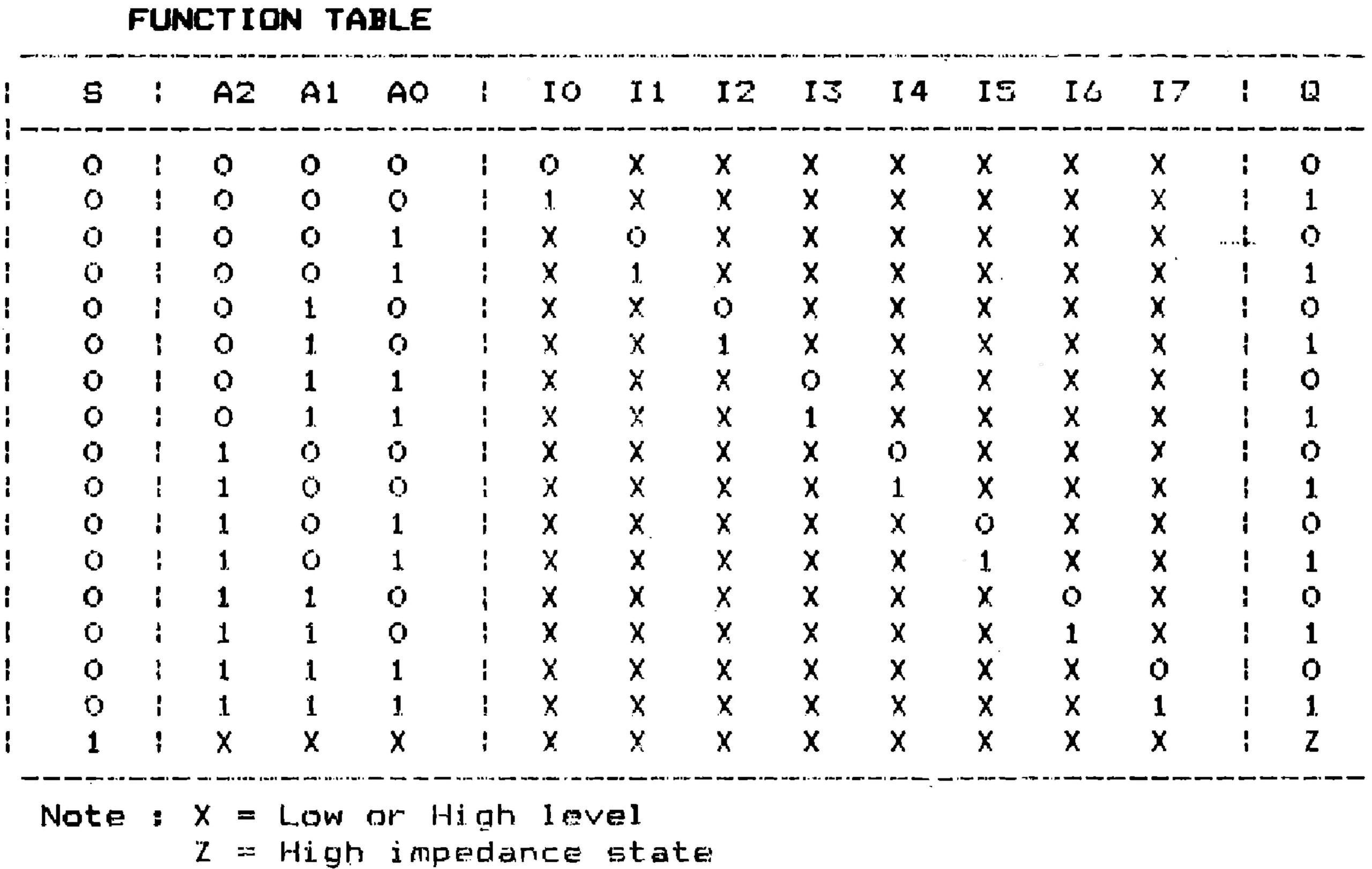

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the βP14151 and βPC14151 as 3-state 8-to-1 multiplexers in an MP-117 package (16 pins: 1–4 I3…I0, 5 Q, 6 NC, 7 S, 8 GND, 9 A2, 10 A1, 11 A0, 12–15 I7…I4, 16 VCC) [1]. Unlike the other circuits of the series, made in IIL technology, the βP14151 is a TTL circuit; in a controller, one or more βP14151 connected in parallel on the 1-bit DATA line give the sequential access to the input data, by multiplexing [2]. By its function table (in the Gallery), with S = 0 the Q output takes the input selected by A2, A1, A0, and with S = 1 it is in the high-impedance state [1].
