General view

CDB402E

IPRS Băneasa

Also known as
54LS02, 74LS02
Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
quadruple 2-input NOR gates
Package
TO-116
Logic family
TTL (standard), TTL-LS (see Variants)
Operating temperature range
0…+70 °C, −55…+125 °C (see Variants)
Supply voltage (VS)
4.75…5.25 V, 4.50…5.50 V (see Variants)

Sources: [1][2]

Variants (4)

Note
CDB402ETTL (standard)0…+70 °C4.75…5.25 V
CDB402EMTTL (standard)−55…+125 °C4.50…5.50 V
54LS02TTL-LS−55…+125 °C4.50…5.50 Vpreliminary data
74LS02TTL-LS0…+70 °C4.75…5.25 V

Click a column heading to sort. „+” adds a variant to the comparison (CDB402E).

Description

The CDB402E is a TTL digital integrated circuit of the CDB series of IPRS Băneasa: quadruple 2-input NOR gates [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the CDB402E and CDB402EM together with the 54LS02 (marked as preliminary data) and the 74LS02, as quadruple 2-input NOR gates in a TO-116 package, with the logic function Y = ¬(A+B) [1]. By the catalog’s table of families, the CDB402E and 74LS02 work at 0…+70 °C from a 4.75…5.25 V supply, and the CDB402EM and 54LS02 at −55…+125 °C from 4.50…5.50 V [2].

Gallery

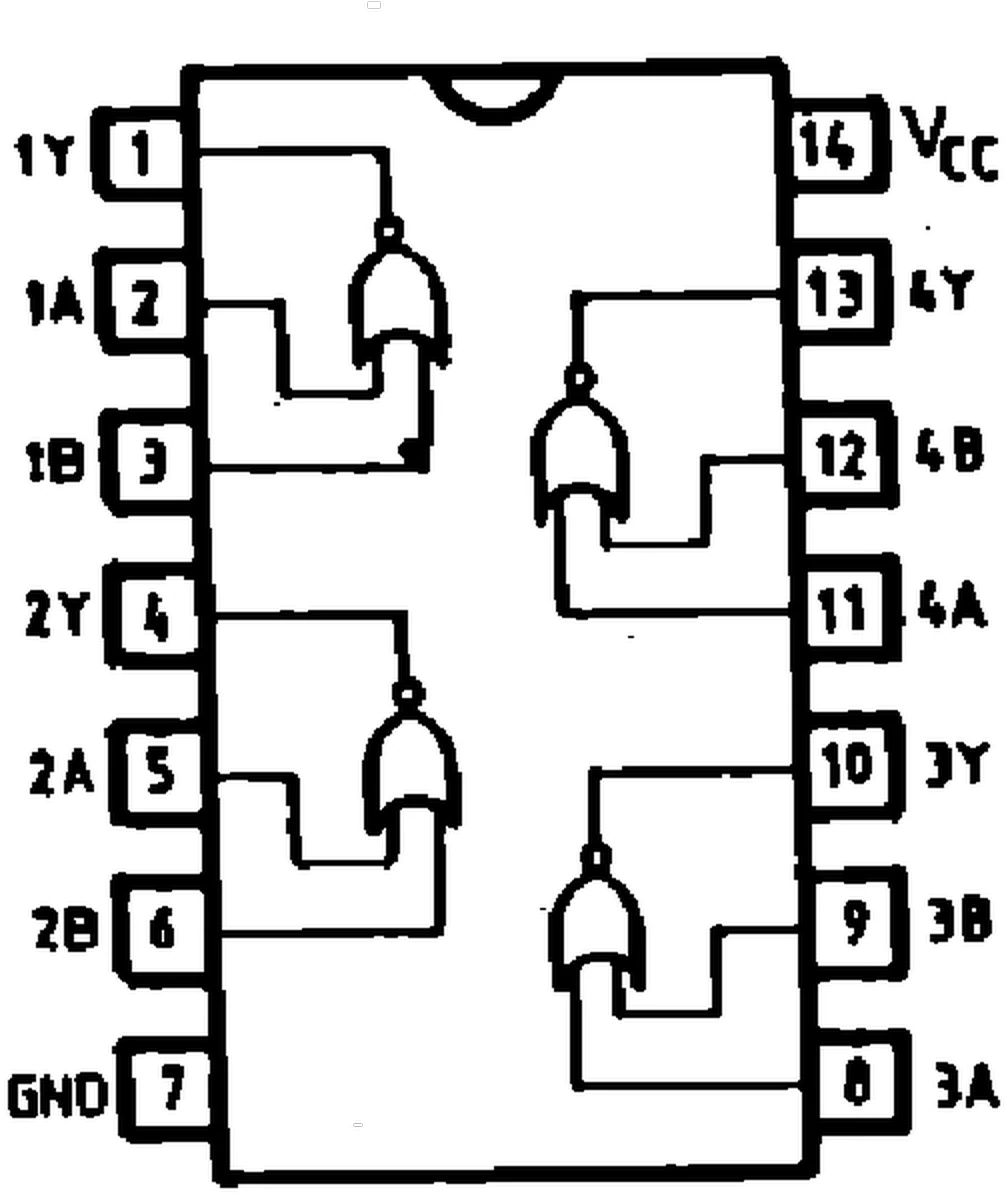

IPRS Băneasa CDB402E: Pinout (1990 catalogue)No image available
