CDB404E

IPRS Băneasa

Also known as
54LS04, 74LS04
Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
hex inverter
Package
TO-116 (see Variants)
Logic family
TTL (standard), TTL-LS (see Variants)
Operating temperature range
0…+70 °C, −55…+125 °C (see Variants)
Supply voltage (VS)
4.75…5.25 V, 4.50…5.50 V (see Variants)

Sources: [1][2][3][4]

Variants (5)

Note
CDB404ETO-116TTL (standard)0…+70 °C4.75…5.25 V
CDB404EMTO-116TTL (standard)−55…+125 °C4.50…5.50 V
CII236————printed under the CDB codes in the panel
54LS04TO-116TTL-LS−55…+125 °C4.50…5.50 Vpreliminary data
74LS04TO-116TTL-LS0…+70 °C4.75…5.25 Vpreliminary data

Click a column heading to sort. „+” adds a variant to the comparison (CDB404E).

Description

The CDB404E is a TTL logic integrated circuit, a hex inverter, listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by IPRS Băneasa, in a TO-116 package [1]. Its codes (CDB404E, CDB404EM and CII236) are in the Variants table; the pinout is in the Gallery.

Under the CDB codes the panel also prints the code „CII 236” [1].

Coded as (IPRS Băneasa code for logic integrated circuits) [2]:

Part Meaning
CDB characteristic prefix of IPRS Băneasa for logic integrated circuits
404 serial number of the circuit (2–4 digits)
E package: E = dual-in-line (plastic DIL)
–, M operating temperature range: – = 0…+70 °C, M = −55…+125 °C

The logic integrated circuits of IPRS Băneasa (generally TTL) are always made in the E version (TO-116 package), some also in the P version (TO-85 package) [2].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the CDB404E and CDB404EM together with the 54LS04 and 74LS04 (both marked as preliminary data), as hex inverters in a TO-116 package, with the logic function Y = ¬A [3]. By the catalog’s table of families, the CDB404E and 74LS04 work at 0…+70 °C from a 4.75…5.25 V supply, and the CDB404EM and 54LS04 at −55…+125 °C from 4.50…5.50 V [4].

Gallery

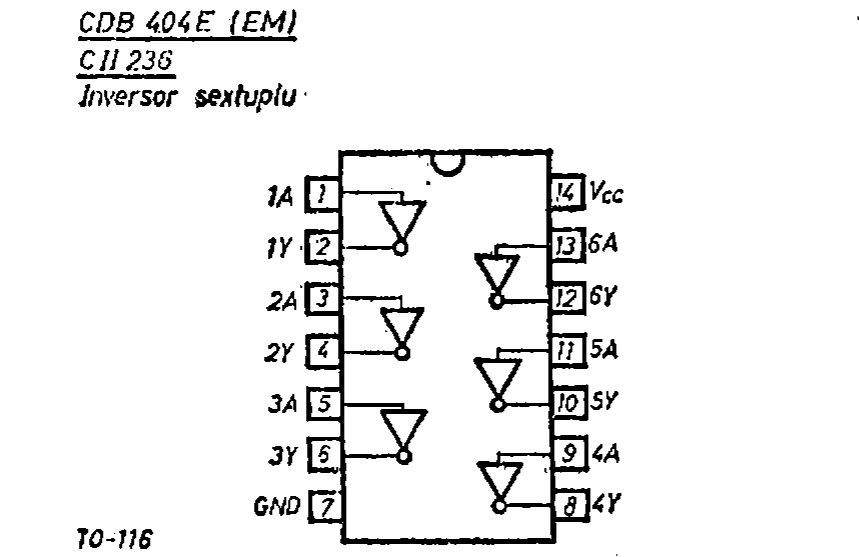

IPRS Băneasa CDB404E: PinoutNo image available
Pinout
IPRS Băneasa CDB404E: TO-116 case outline (dimensions in mm)No image available
TO-116 case outline (dimensions in mm)

Documents

No documents available yet.

References

  1. [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 36.1 „Circuite integrate logice TTL – produse de IPRS-Băneasa”, p. 623
  2. [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 34.5 „Coduri românești”, p. 583
  3. [3]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „T.T.L. families”, p. 1-02
  4. [4]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „General informations”, „Basic characteristics”, p. 1-XX
