CDB409E
IPRS Băneasa
- Also known as
- 54LS09, 74LS09
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Integrated circuits
- Documentation score
- 1/5
- Last edited
- 23 OCT 2026
Specifications
- Type
- TTL digital integrated circuit
- Function
- quad 2-input AND gate with open-collector outputs (5.5 V)
- Package
- TO-116
- Logic family
- TTL (standard), TTL-LS (see Variants)
- Operating temperature range
- 0…+70 °C, −55…+125 °C (see Variants)
- Supply voltage (VS)
- 4.75…5.25 V, 4.50…5.50 V (see Variants)
Variants (4)
| Note | Compare | ||||
|---|---|---|---|---|---|
| CDB409E | TTL (standard) | 0…+70 °C | 4.75…5.25 V | ||
| CDB409EM | TTL (standard) | −55…+125 °C | 4.50…5.50 V | ||
| 54LS09 | TTL-LS | −55…+125 °C | 4.50…5.50 V | preliminary data | |
| 74LS09 | TTL-LS | 0…+70 °C | 4.75…5.25 V |
Click a column heading to sort. „+” adds a variant to the comparison (CDB409E).
Description

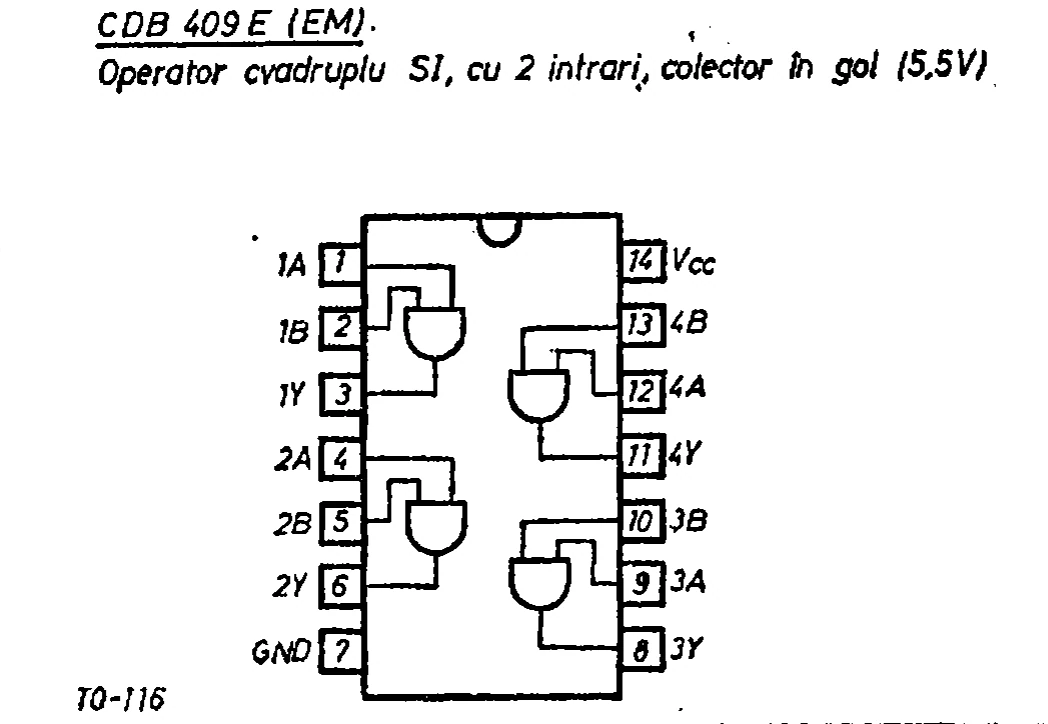

The CDB409E is a TTL logic integrated circuit, a quad 2-input AND gate with open-collector outputs (5.5 V), listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by IPRS Băneasa, in a TO-116 package [1]. Its codes (CDB409E and CDB409EM) are in the Variants table; the pinout is in the Gallery.
The 1st edition of the Agenda (1983) gives the open-collector outputs as 30 V (the 2nd edition: 5.5 V) [3].
Coded as (IPRS Băneasa code for logic integrated circuits) [2]:
| Part | Meaning |
|---|---|
| CDB | characteristic prefix of IPRS Băneasa for logic integrated circuits |
| 409 | serial number of the circuit (2–4 digits) |
| E | package: E = dual-in-line (plastic DIL) |
| –, M | operating temperature range: – = 0…+70 °C, M = −55…+125 °C |
The logic integrated circuits of IPRS Băneasa (generally TTL) are always made in the E version (TO-116 package), some also in the P version (TO-85 package) [2].
The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the CDB409E and CDB409EM together with the 54LS09 (marked as preliminary data) and the 74LS09, as quadruple 2-input AND gates with open-collector outputs in a TO-116 package, with the logic function Y = A·B [4]. By the catalog’s table of families, the CDB409E and 74LS09 work at 0…+70 °C from a 4.75…5.25 V supply, and the CDB409EM and 54LS09 at −55…+125 °C from 4.50…5.50 V [5].
Gallery
No image available
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 36.1 „Circuite integrate logice TTL – produse de IPRS-Băneasa”, p. 624
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 34.5 „Coduri românești”, p. 583
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.10.2.1 „Circuite integrate logice (numerice)”, A) „Produse IPRS-Băneasa”, p. 519
- [4]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „T.T.L. families”, p. 1-03
- [5]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „General informations”, „Basic characteristics”, p. 1-XX
