CDB410E
IPRS Băneasa
- Also known as
- 54LS10, 74LS10
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Integrated circuits
- Documentation score
- 1/5
- Last edited
- 23 OCT 2026
Specifications
- Type
- TTL digital integrated circuit
- Function
- triple 3-input NAND gate
- Package
- TO-116 (see Variants)
- Logic family
- TTL (standard), TTL-H (fast), TTL-LS (see Variants)
- Operating temperature range
- 0…+70 °C, −55…+125 °C (see Variants)
- Supply voltage (VS)
- 4.75…5.25 V, 4.50…5.50 V (see Variants)
Variants (7)
| Note | Compare | |||||
|---|---|---|---|---|---|---|
| CDB410E | TO-116 | TTL (standard) | 0…+70 °C | 4.75…5.25 V | ||
| CDB410EM | TO-116 | TTL (standard) | −55…+125 °C | 4.50…5.50 V | ||
| CDB410HE | TO-116 | TTL-H (fast) | 0…+70 °C | 4.75…5.25 V | ||
| CDB410HEM | TO-116 | TTL-H (fast) | −55…+125 °C | 4.50…5.50 V | ||
| CII48 | — | — | — | — | printed under the CDB codes in the panel | |
| 54LS10 | TO-116 | TTL-LS | −55…+125 °C | 4.50…5.50 V | preliminary data | |
| 74LS10 | TO-116 | TTL-LS | 0…+70 °C | 4.75…5.25 V |
Click a column heading to sort. „+” adds a variant to the comparison (CDB410E).
Description
The CDB410E is a TTL logic integrated circuit, a triple 3-input NAND gate, listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by IPRS Băneasa, in a TO-116 package [1]. Its codes (CDB410E, CDB410EM, CDB410HE, CDB410HEM and CII48) are in the Variants table; the pinout is in the Gallery.

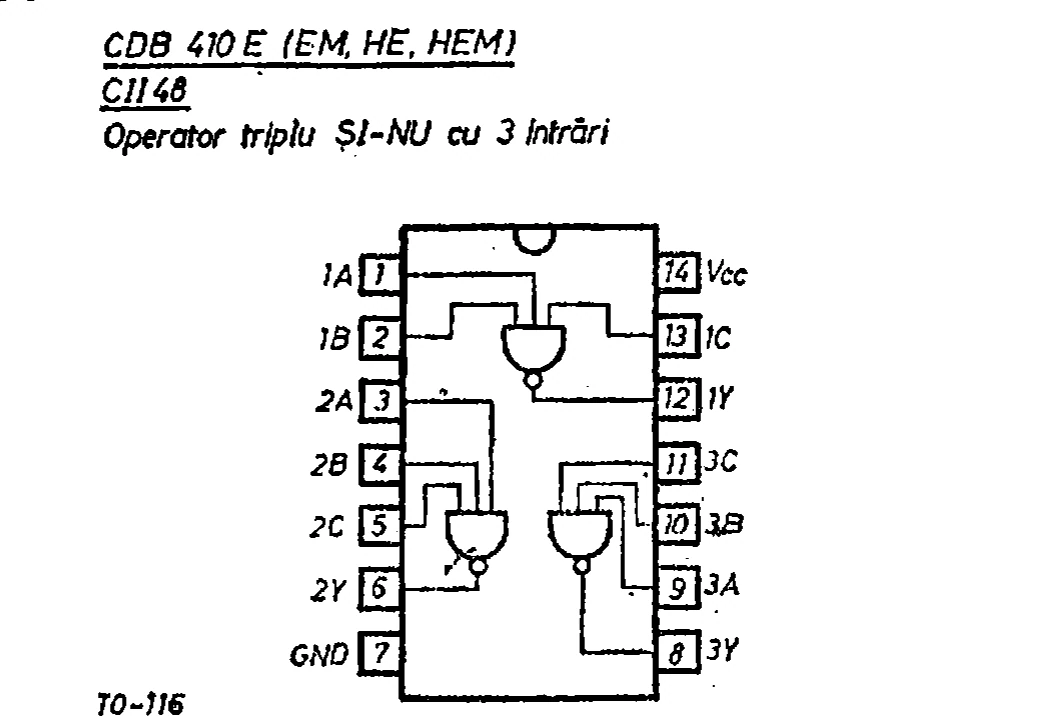

The panel is headed „CDB 410 E (EM, HE, HEM)” [1].
Under the CDB codes the panel also prints the code „CII48” [1].
Coded as (IPRS Băneasa code for logic integrated circuits) [2]:
| Part | Meaning |
|---|---|
| CDB | characteristic prefix of IPRS Băneasa for logic integrated circuits |
| 410 | serial number of the circuit (2–4 digits) |
| –, H | series type: – = standard (medium speed), H = fast |
| E | package: E = dual-in-line (plastic DIL) |
| –, M | operating temperature range: – = 0…+70 °C, M = −55…+125 °C |
The logic integrated circuits of IPRS Băneasa (generally TTL) are always made in the E version (TO-116 package), some also in the P version (TO-85 package) [2].
The 1st edition of the Agenda (1983) lists the CDB410E, CDB410HE and CDB410HEM, without the CDB410EM [3].
The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the CDB410E, CDB410EM, CDB410HE and CDB410HEM together with the 54LS10 (marked as preliminary data) and the 74LS10, as triple 3-input NAND gates in a TO-116 package, with the logic function Y = ¬(A·B·C) [4]. By the catalog’s table of families, the CDB410E, CDB410HE and 74LS10 work at 0…+70 °C from a 4.75…5.25 V supply, and the CDB410EM, CDB410HEM and 54LS10 at −55…+125 °C from 4.50…5.50 V [5].
