General view

CDB4123E

IPRS Băneasa

Also known as
54LS123, 74LS123
Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
dual retriggerable monostable multivibrators with clear
Package
MP-117
Logic family
TTL (standard), TTL-LS (see Variants)
Operating temperature range
0…+70 °C, −55…+125 °C (see Variants)
Supply voltage (VS)
4.75…5.25 V, 4.50…5.50 V (see Variants)

Sources: [1][2]

Variants (4)

Note
CDB4123ETTL (standard)0…+70 °C4.75…5.25 V
CDB4123EMTTL (standard)−55…+125 °C4.50…5.50 V
54LS123TTL-LS−55…+125 °C4.50…5.50 Vpreliminary data
74LS123TTL-LS0…+70 °C4.75…5.25 Vpreliminary data

Click a column heading to sort. „+” adds a variant to the comparison (CDB4123E).

Description

The CDB4123E is a TTL digital integrated circuit of the CDB series of IPRS Băneasa: dual retriggerable monostable multivibrators with clear [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the CDB4123E and CDB4123EM together with the 54LS123 and 74LS123 (both marked as preliminary data), as dual retriggerable monostable multivibrators with clear in an MP-117 package [1]. By the catalog’s table of families, the CDB4123E and 74LS123 work at 0…+70 °C from a 4.75…5.25 V supply, and the CDB4123EM and 54LS123 at −55…+125 °C from 4.50…5.50 V [2].

Gallery

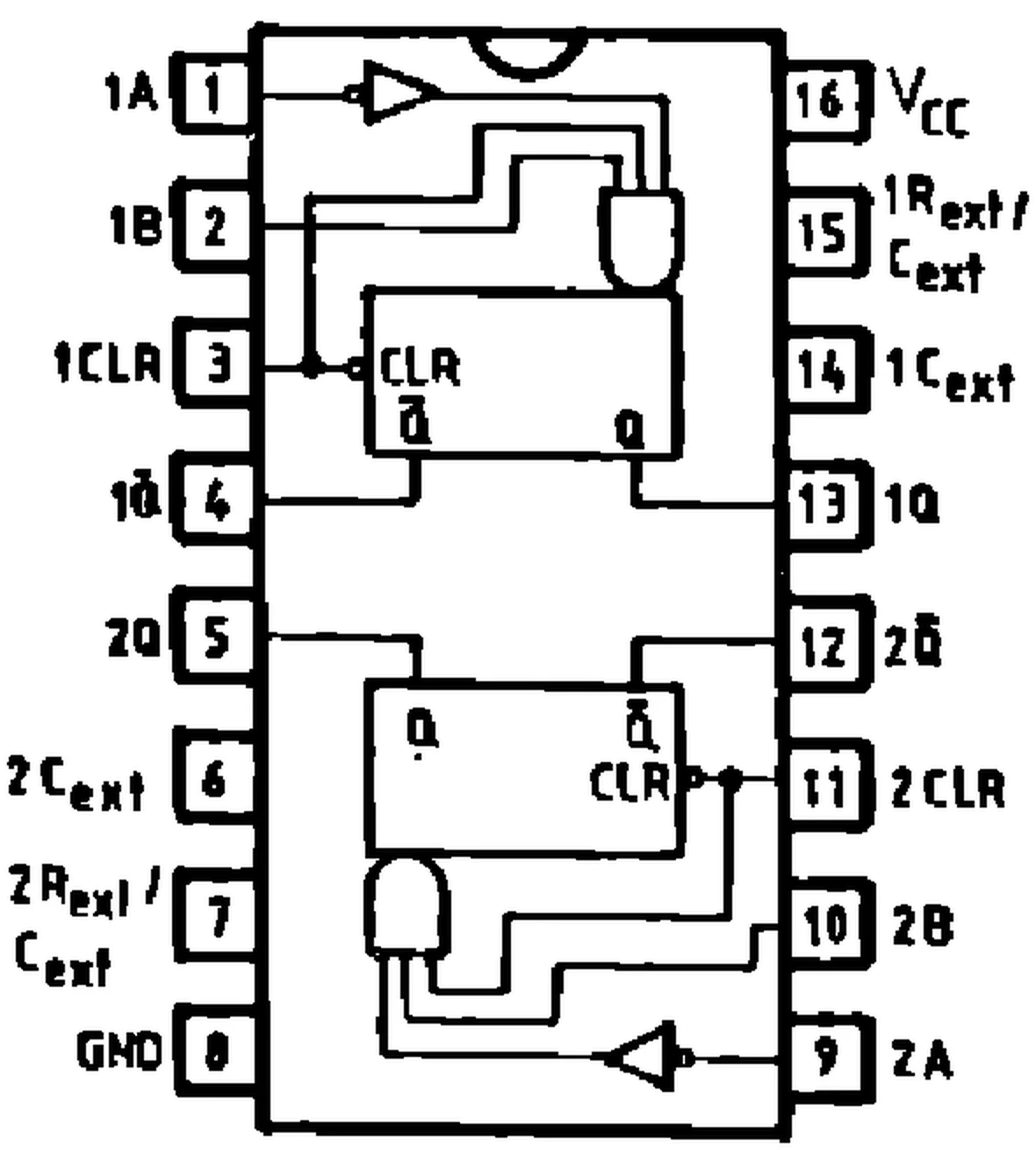

IPRS Băneasa CDB4123E: Pinout (1990 catalogue)No image available
Pinout (1990 catalogue)

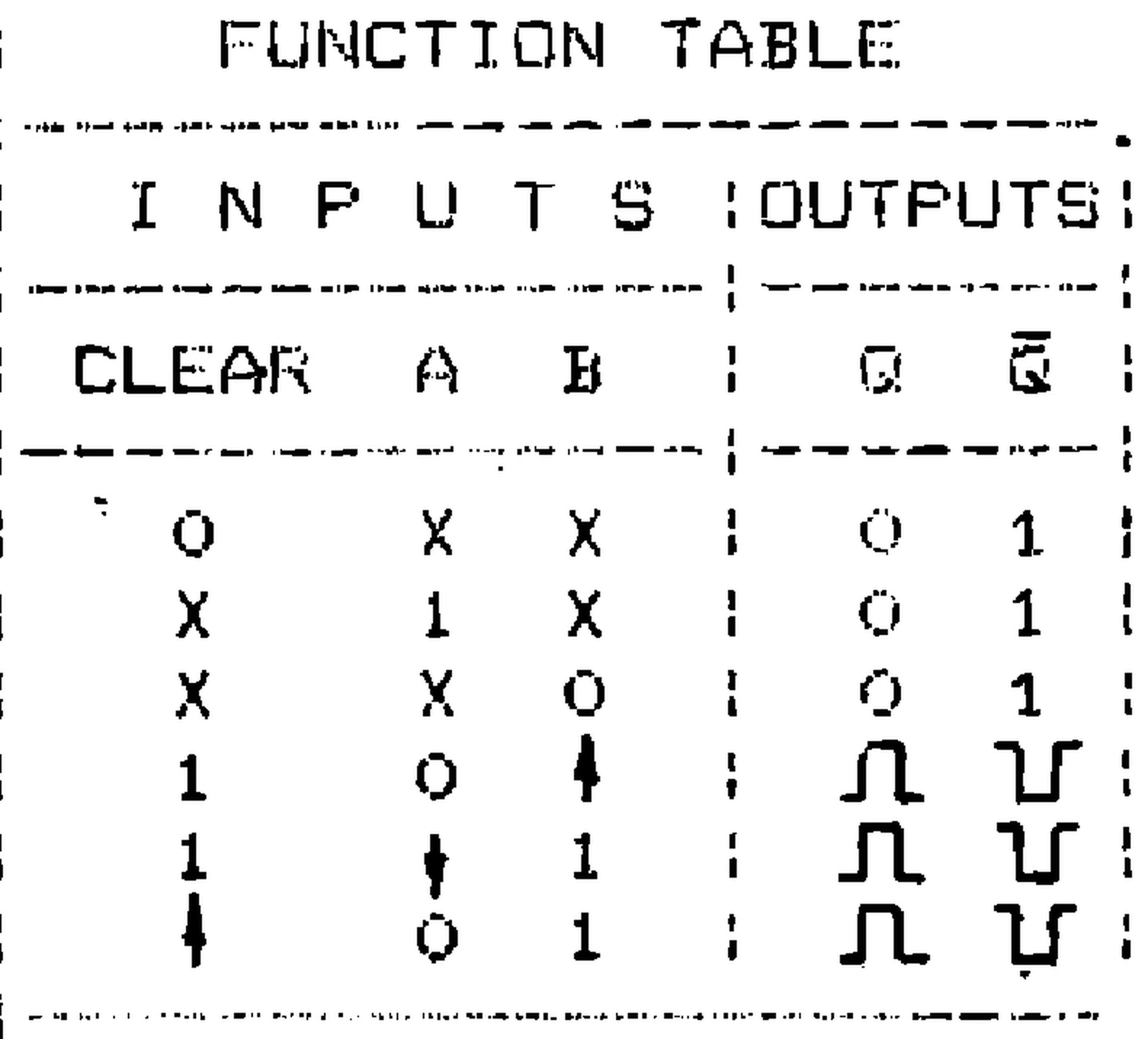

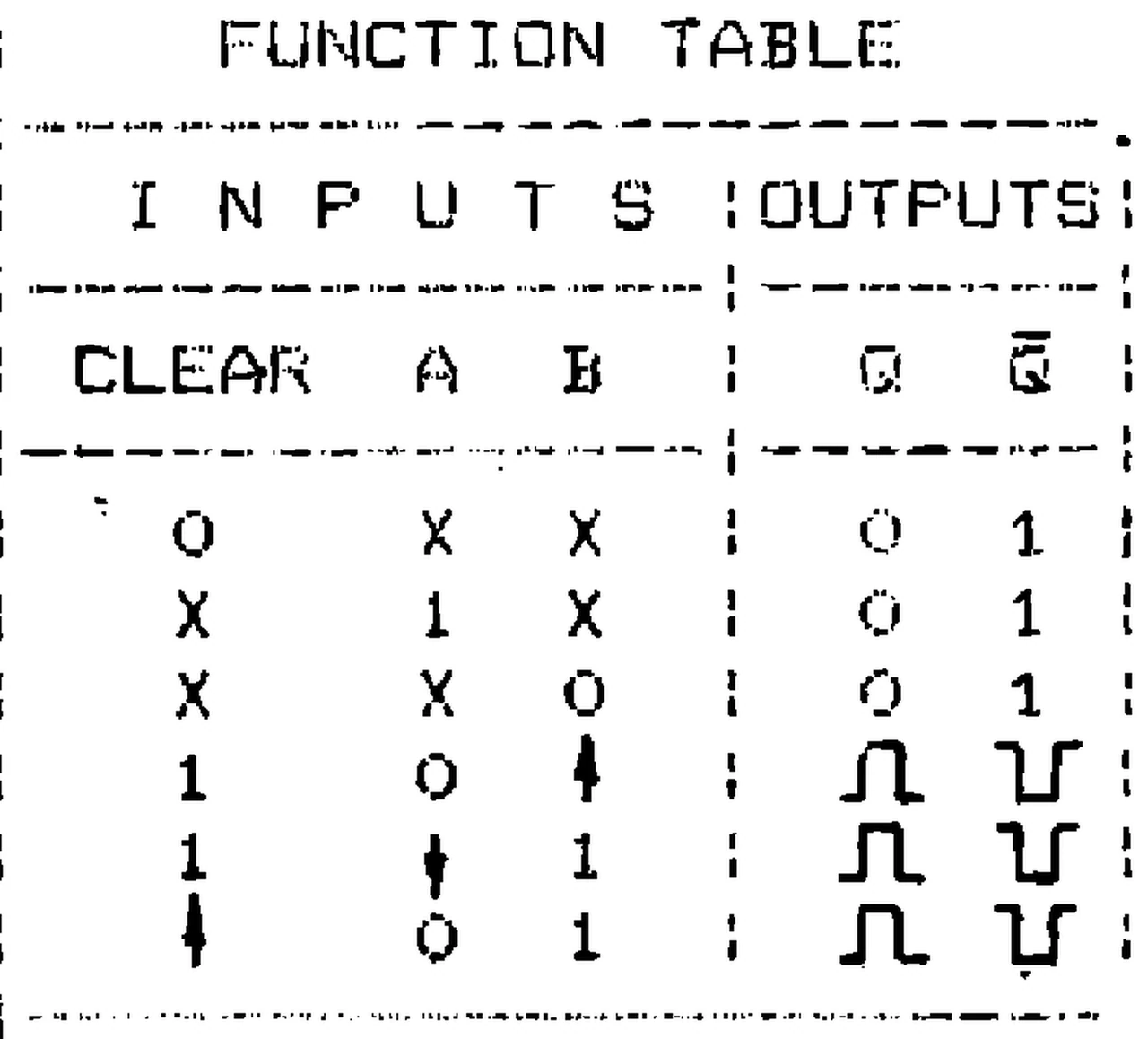

IPRS Băneasa CDB4123E: Function table (1990 catalogue)No image available
Function table (1990 catalogue)
IPRS Băneasa CDB4123E: MP-117 case outline (dimensions in mm)No image available
MP-117 case outline (dimensions in mm)

Documents

No documents available yet.

References

  1. [1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „T.T.L. families”, p. 1-20
  2. [2]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „General informations”, „Basic characteristics”, p. 1-XX
