General view

CDB4151

IPRS Băneasa

Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
8-to-1 multiplexer
Package
MP-117
Logic family
TTL (standard)
Operating temperature range
0…+70 °C, −55…+125 °C (see Variants)
Supply voltage (VS)
4.75…5.25 V, 4.50…5.50 V (see Variants)

Sources: [1][2][3][4]

Variants (2)

CDB4151E0…+70 °C4.75…5.25 V
CDB4151EM−55…+125 °C4.50…5.50 V

Click a column heading to sort. „+” adds a variant to the comparison (CDB4151).

Description

The CDB4151 is an 8-to-1 multiplexer, a logic integrated circuit listed in the Agenda radioelectronistului (1st edition, 1983) among the logic integrated circuits made by IPRS Băneasa [1].

It appears only in the 1st edition of the Agenda, printed „CDB 4151”; the 2nd edition (1989) no longer lists it [1].

Coded as (IPRS Băneasa code for logic integrated circuits) [2]:

Part Meaning
CDB characteristic prefix of IPRS Băneasa for logic integrated circuits
4151 serial number of the circuit (2–4 digits)

The logic integrated circuits of IPRS Băneasa (generally TTL) are always made in the E version (TO-116 package), some also in the P version (TO-85 package) [2].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the CDB4151E and CDB4151EM as 1-of-8 data selectors/multiplexers in an MP-117 package [3]. By the catalog’s table of families, the CDB4151E works at 0…+70 °C from a 4.75…5.25 V supply, and the CDB4151EM at −55…+125 °C from 4.50…5.50 V [4].

Gallery

IPRS Băneasa CDB4151: Pinout (1990 catalogue)No image available

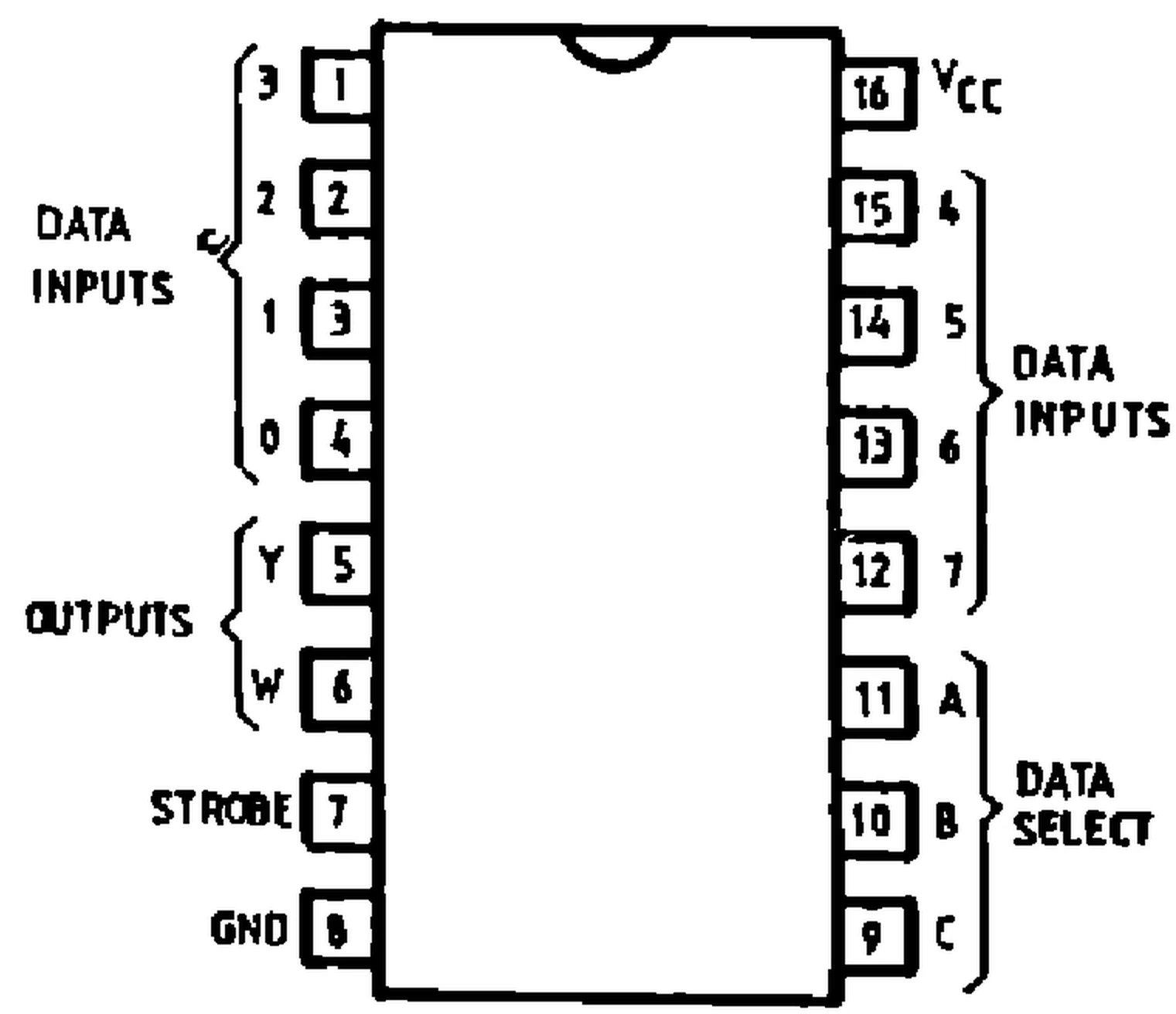

Pinout (1990 catalogue)
IPRS Băneasa CDB4151: MP-117 case outline (dimensions in mm)No image available
MP-117 case outline (dimensions in mm)
