General view

CDB4180E

IPRS Băneasa

Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
8-bit odd/even parity generators/checkers
Package
TO-116
Logic family
TTL (standard)
Operating temperature range
0…+70 °C, −55…+125 °C (see Variants)
Supply voltage (VS)
4.75…5.25 V, 4.50…5.50 V (see Variants)

Sources: [1][2]

Variants (2)

CDB4180E0…+70 °C4.75…5.25 V
CDB4180EM−55…+125 °C4.50…5.50 V

Click a column heading to sort. „+” adds a variant to the comparison (CDB4180E).

Description

The CDB4180E is a TTL digital integrated circuit of the CDB series of IPRS Băneasa: 8-bit odd/even parity generators/checkers [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the CDB4180E and CDB4180EM as 8-bit odd/even parity generators/checkers in a TO-116 package [1]. By the catalog’s table of families, the CDB4180E works at 0…+70 °C from a 4.75…5.25 V supply, and the CDB4180EM at −55…+125 °C from 4.50…5.50 V [2].

Gallery

IPRS Băneasa CDB4180E: Pinout (1990 catalogue)No image available

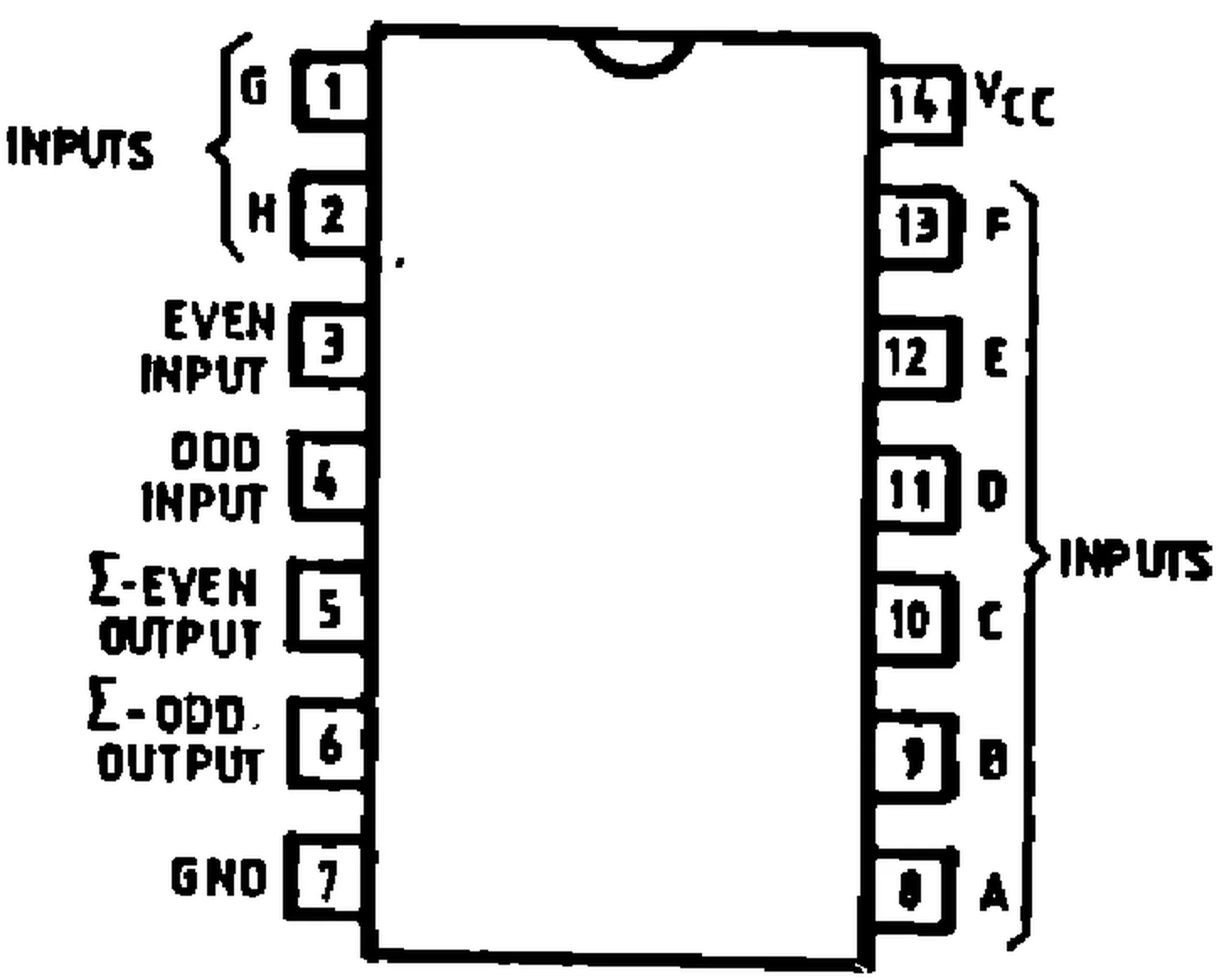

Pinout (1990 catalogue)
IPRS Băneasa CDB4180E: TO-116 case outline (dimensions in mm)No image available
TO-116 case outline (dimensions in mm)
