CDB438E

IPRS Băneasa

Also known as
54LS38, 74LS38
Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
quadruple 2-input NAND buffers with open-collector outputs
Package
TO-116
Logic family
TTL (standard), TTL-LS (see Variants)
Operating temperature range
0…+70 °C, −55…+125 °C (see Variants)
Supply voltage (VS)
4.75…5.25 V, 4.50…5.50 V (see Variants)

Sources: [1][2]

Variants (4)

Note
CDB438ETTL (standard)0…+70 °C4.75…5.25 V
CDB438EMTTL (standard)−55…+125 °C4.50…5.50 V
54LS38TTL-LS−55…+125 °C4.50…5.50 Vpreliminary data
74LS38TTL-LS0…+70 °C4.75…5.25 Vpreliminary data

Click a column heading to sort. „+” adds a variant to the comparison (CDB438E).

Description

The CDB438E is a TTL digital integrated circuit of the CDB series of IPRS Băneasa: quadruple 2-input NAND buffers with open-collector outputs [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the CDB438E and CDB438EM together with the 54LS38 and 74LS38 (both marked as preliminary data), as quadruple 2-input NAND buffers with open-collector outputs in a TO-116 package, with the logic function Y = ¬(A·B) [1]. By the catalog’s table of families, the CDB438E and 74LS38 work at 0…+70 °C from a 4.75…5.25 V supply, and the CDB438EM and 54LS38 at −55…+125 °C from 4.50…5.50 V [2].

Gallery

IPRS Băneasa CDB438E: Pinout (1990 catalogue)No image available

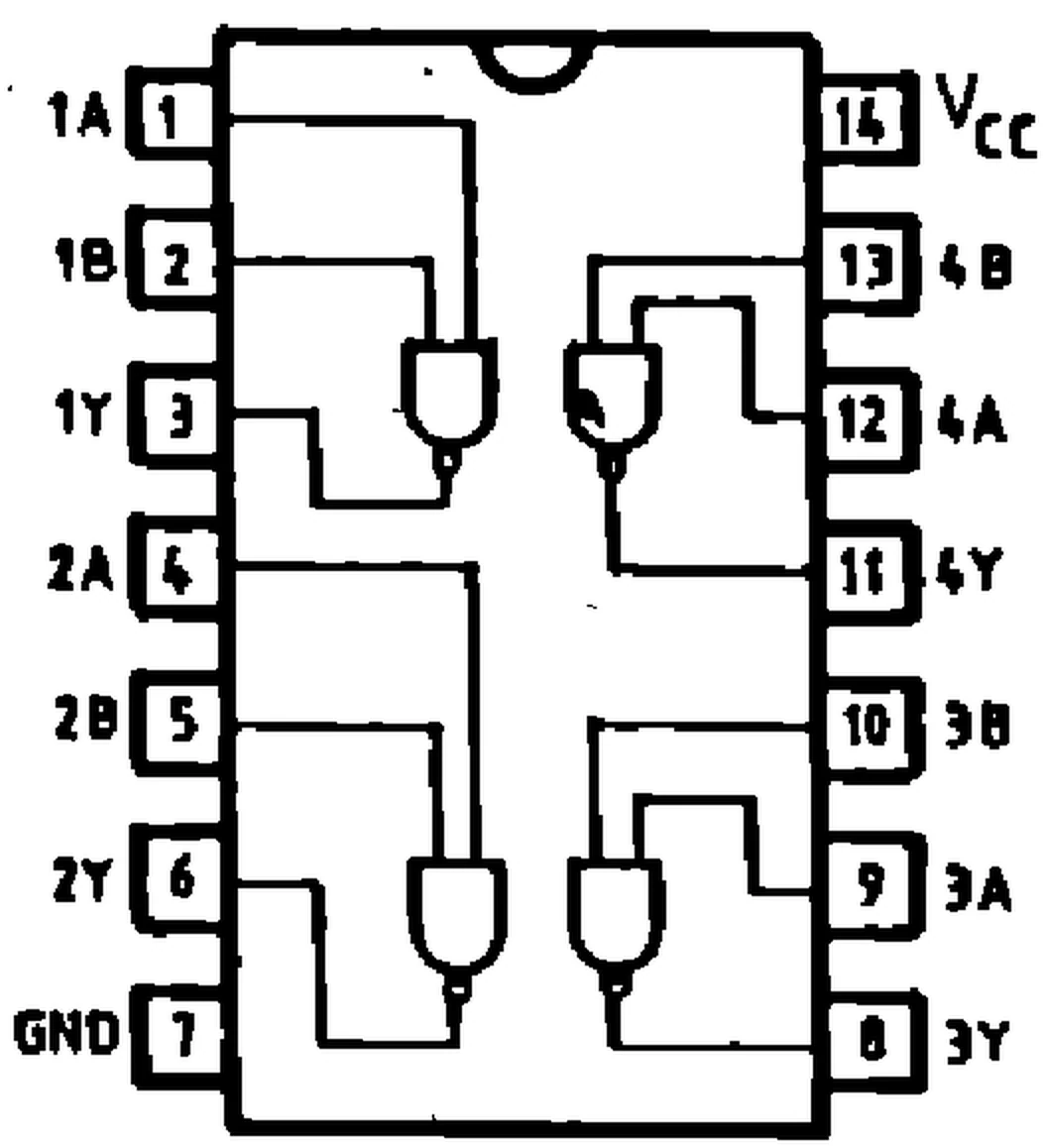

Pinout (1990 catalogue)
