CDB447E

IPRS Băneasa

Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
BCD-to-seven-segment decoders/drivers with active-low, open-collector, 15 V outputs
Package
MP-117
Logic family
TTL (standard)
Operating temperature range
0…+70 °C, −55…+125 °C (see Variants)
Supply voltage (VS)
4.75…5.25 V, 4.50…5.50 V (see Variants)

Sources: [1][2]

Variants (2)

CDB447E0…+70 °C4.75…5.25 V
CDB447EM−55…+125 °C4.50…5.50 V

Click a column heading to sort. „+” adds a variant to the comparison (CDB447E).

Description

The CDB447E is a TTL digital integrated circuit of the CDB series of IPRS Băneasa: BCD-to-seven-segment decoders/drivers with active-low, open-collector, 15 V outputs [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the CDB447E and CDB447EM as BCD-to-seven-segment decoders/drivers with active-low, open-collector, 15 V outputs in an MP-117 package [1]. By the catalog’s table of families, the CDB447E works at 0…+70 °C from a 4.75…5.25 V supply, and the CDB447EM at −55…+125 °C from 4.50…5.50 V [2].

Gallery

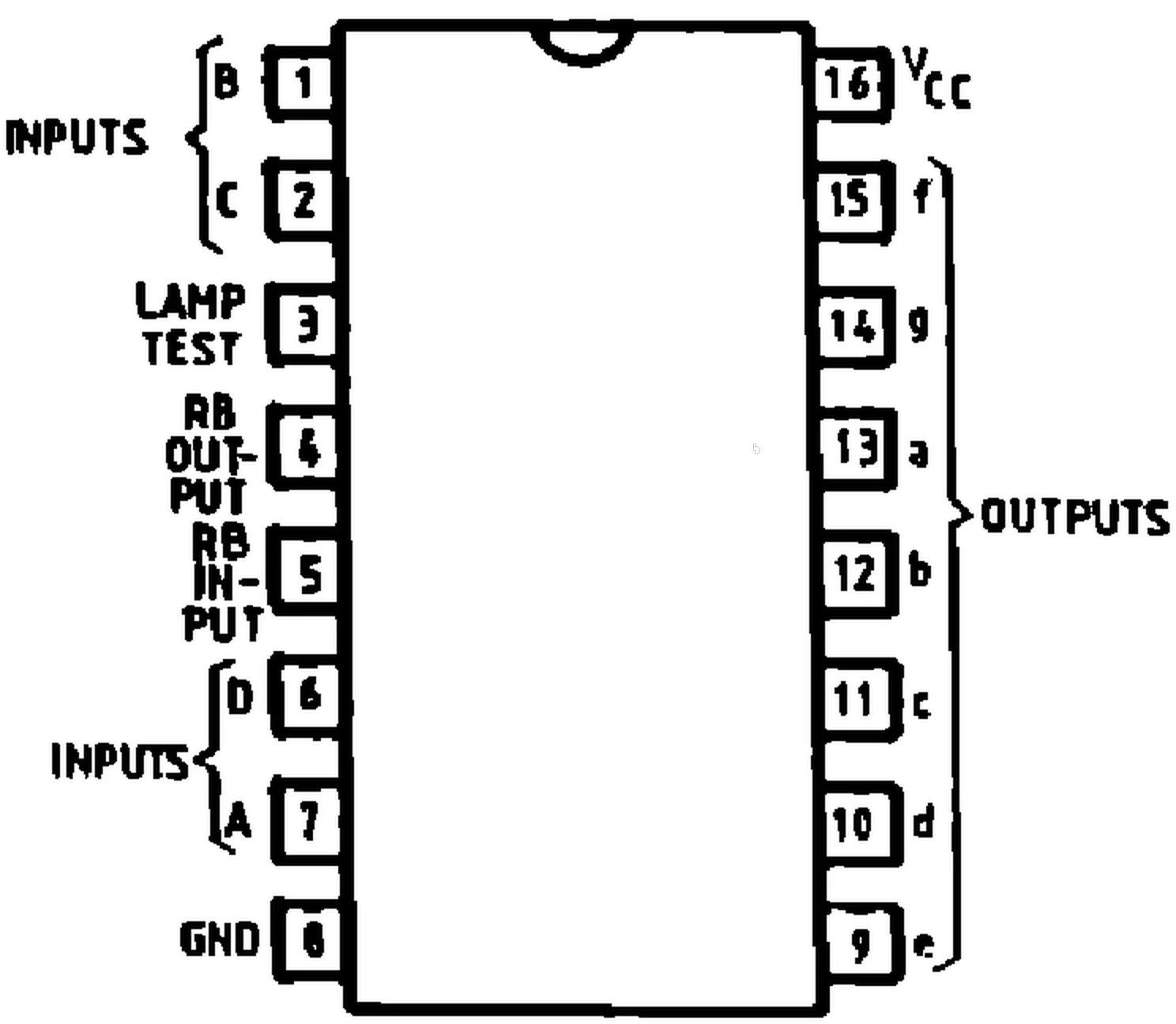

IPRS Băneasa CDB447E: Pinout (1990 catalogue)No image available
Pinout (1990 catalogue)

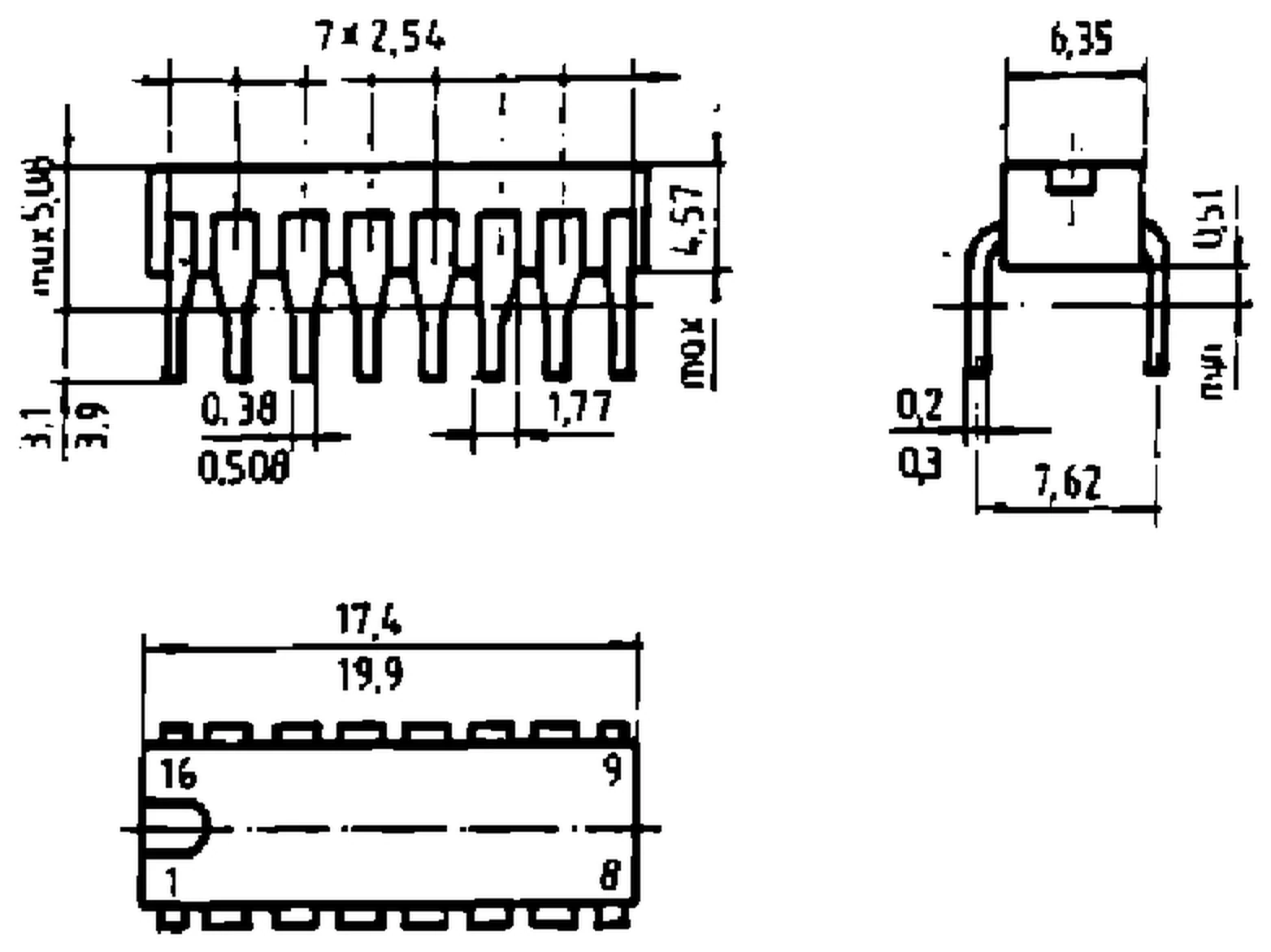

IPRS Băneasa CDB447E: MP-117 case outline (dimensions in mm)No image available
MP-117 case outline (dimensions in mm)
