CDB475E

IPRS Băneasa

Also known as
MH 7475
Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
quad D flip-flop
Package
MP-117
Logic family
TTL (standard)
Operating temperature range
0…+70 °C, −55…+125 °C (see Variants)
Supply voltage (VS)
4.75…5.25 V, 4.50…5.50 V (see Variants)

Sources: [1][2][3][4]

Variants (2)

CDB475E0…+70 °C4.75…5.25 V
CDB475EM−55…+125 °C4.50…5.50 V

Click a column heading to sort. „+” adds a variant to the comparison (CDB475E).

Description

The CDB475E is a quad D flip-flop, a logic integrated circuit listed in the Agenda radioelectronistului (1st edition, 1983) among the logic integrated circuits made by IPRS Băneasa [1].

It appears only in the 1st edition of the Agenda, printed „MH 7475 (CDB 475 E)”; the 2nd edition (1989) no longer lists it [1].

Coded as (IPRS Băneasa code for logic integrated circuits) [2]:

Part Meaning
CDB characteristic prefix of IPRS Băneasa for logic integrated circuits
475 serial number of the circuit (2–4 digits)
E package: E = dual-in-line (plastic DIL)

The logic integrated circuits of IPRS Băneasa (generally TTL) are always made in the E version (TO-116 package), some also in the P version (TO-85 package) [2].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the CDB475E and CDB475EM as 4-bit bistable latches in an MP-117 package [3]. By the catalog’s table of families, the CDB475E works at 0…+70 °C from a 4.75…5.25 V supply, and the CDB475EM at −55…+125 °C from 4.50…5.50 V [4].

Gallery

IPRS Băneasa CDB475E: Pinout (1990 catalogue)No image available

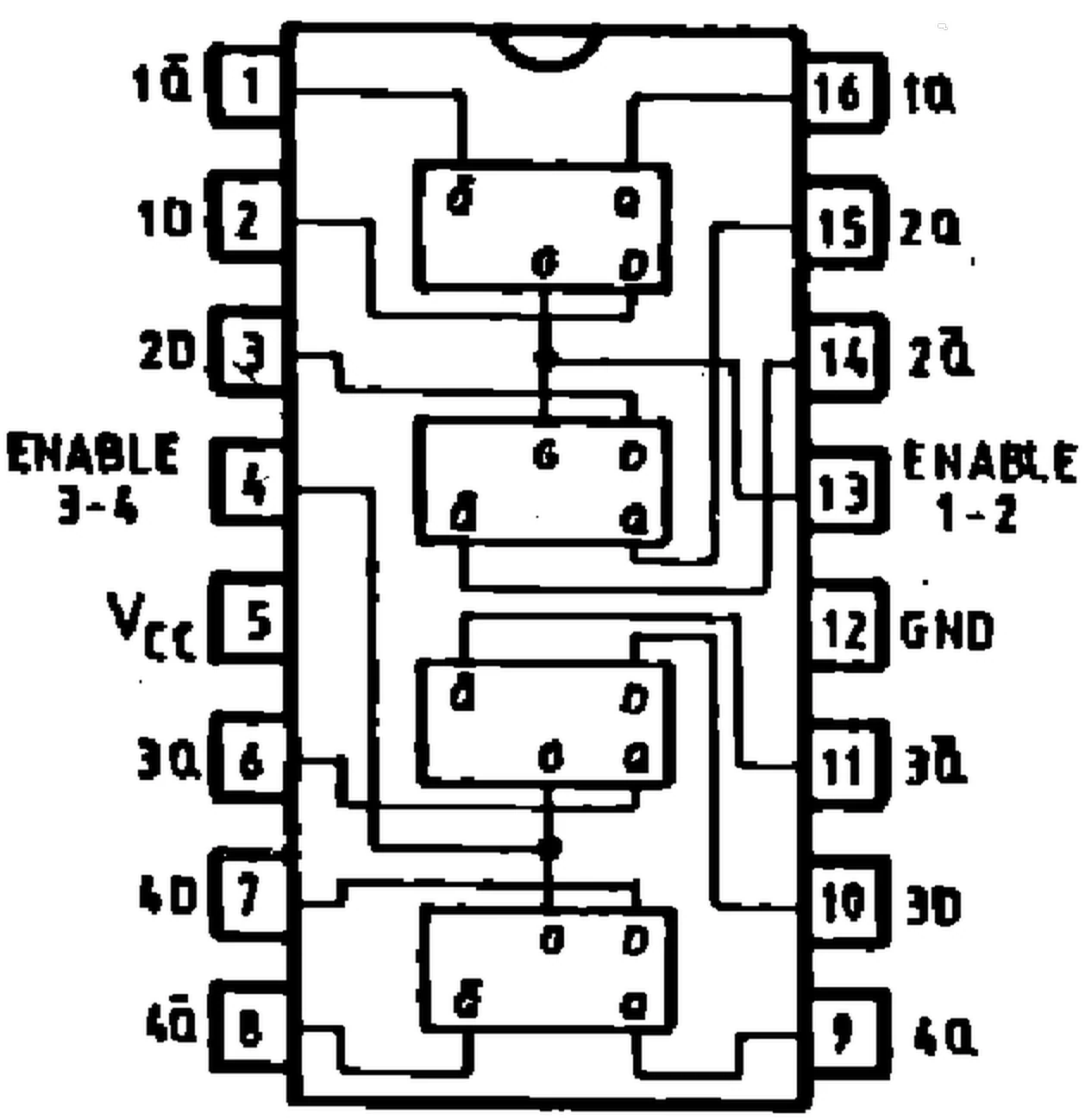

Pinout (1990 catalogue)
IPRS Băneasa CDB475E: Function table (each latch) (1990 catalogue)No image available

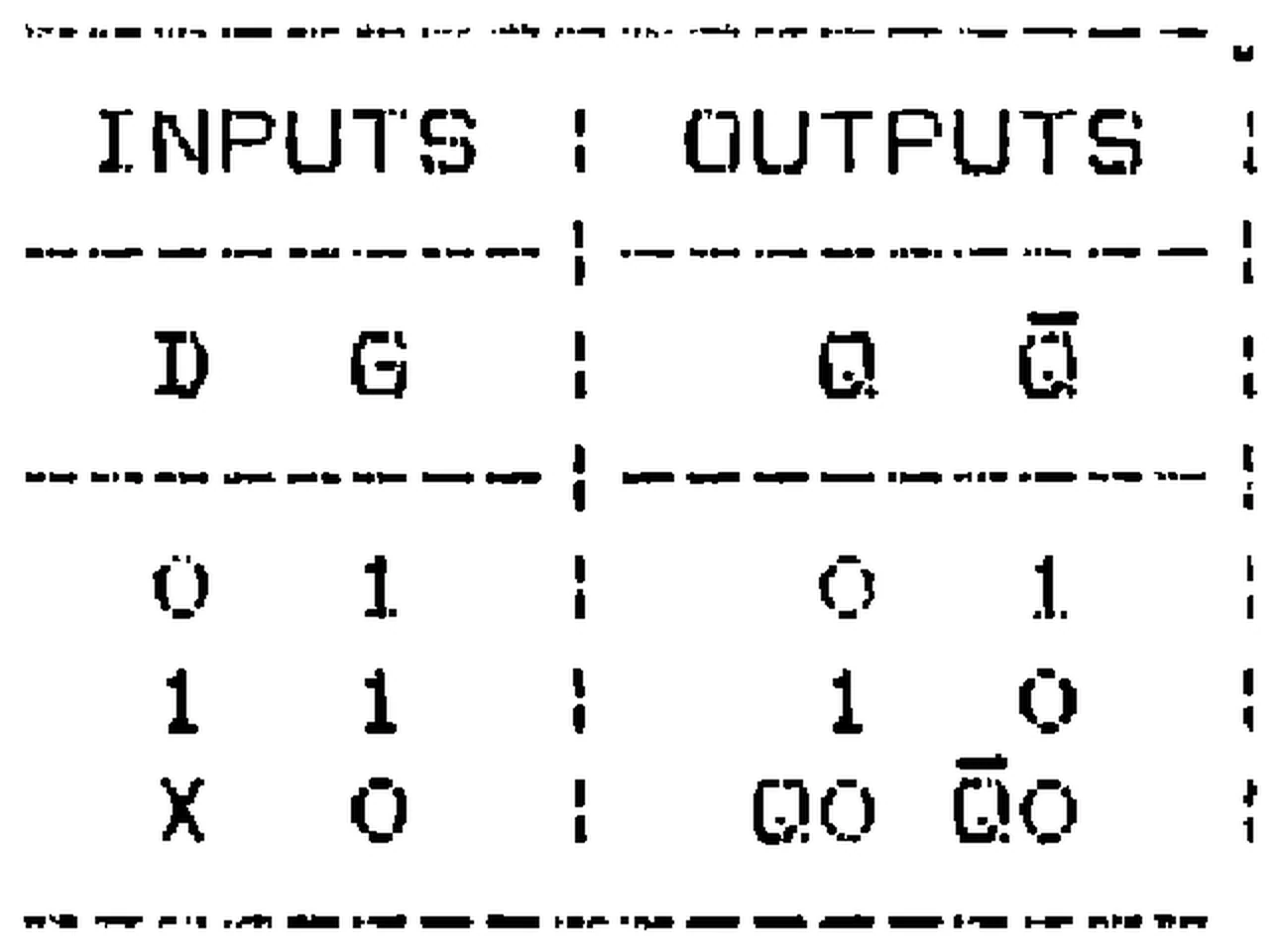

Function table (each latch) (1990 catalogue)
IPRS Băneasa CDB475E: MP-117 case outline (dimensions in mm)No image available
MP-117 case outline (dimensions in mm)
