CDB476E

IPRS Băneasa

Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
dual JK master-slave flip-flop
Package
MP-117
Logic family
TTL (standard)
Operating temperature range
0…+70 °C, −55…+125 °C (see Variants)
Supply voltage (VS)
4.75…5.25 V, 4.50…5.50 V (see Variants)

Sources: [1][2][3][4]

Variants (2)

CDB476E0…+70 °C4.75…5.25 V
CDB476EM−55…+125 °C4.50…5.50 V

Click a column heading to sort. „+” adds a variant to the comparison (CDB476E).

Description

The CDB476E is a TTL logic integrated circuit, a dual JK master-slave flip-flop, listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by IPRS Băneasa, in an MP-117 package [1]. Its codes (CDB476E and CDB476EM) are in the Variants table; the pinout is in the Gallery.

Coded as (IPRS Băneasa code for logic integrated circuits) [2]:

Part Meaning
CDB characteristic prefix of IPRS Băneasa for logic integrated circuits
476 serial number of the circuit (2–4 digits)
E package: E = dual-in-line (plastic DIL)
–, M operating temperature range: – = 0…+70 °C, M = −55…+125 °C

The logic integrated circuits of IPRS Băneasa (generally TTL) are always made in the E version (TO-116 package), some also in the P version (TO-85 package) [2].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the CDB476E and CDB476EM as dual J-K flip-flops with preset and clear in an MP-117 package [3]. By the catalog’s table of families, the CDB476E works at 0…+70 °C from a 4.75…5.25 V supply, and the CDB476EM at −55…+125 °C from 4.50…5.50 V [4].

Gallery

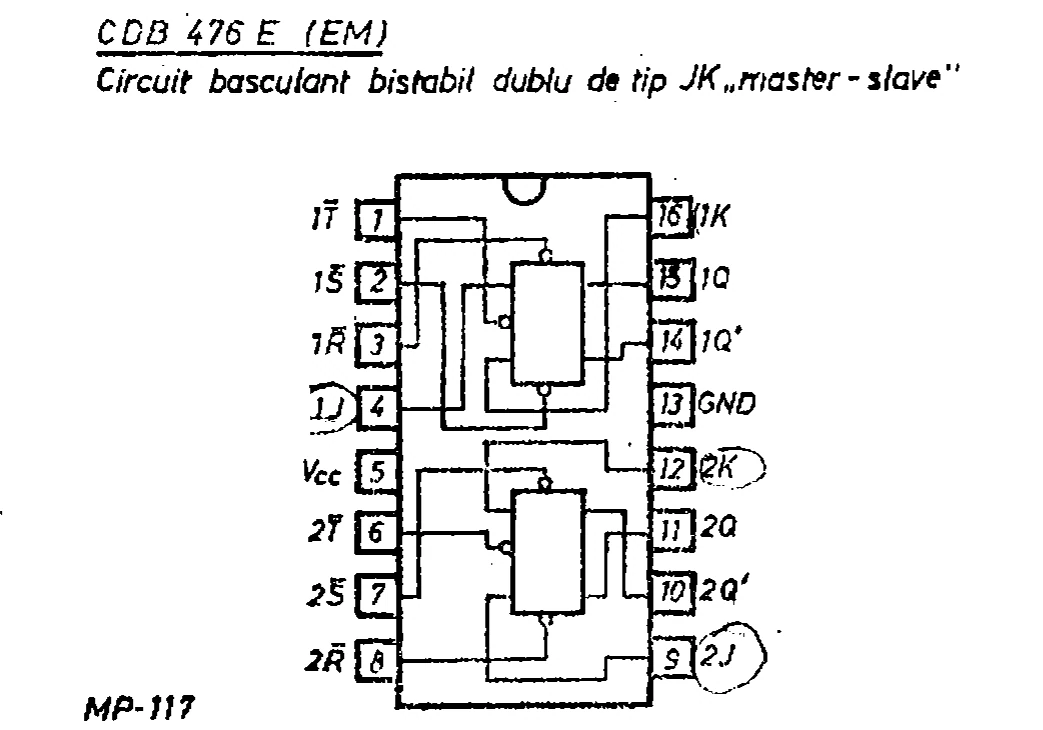

IPRS Băneasa CDB476E: PinoutNo image available
Pinout

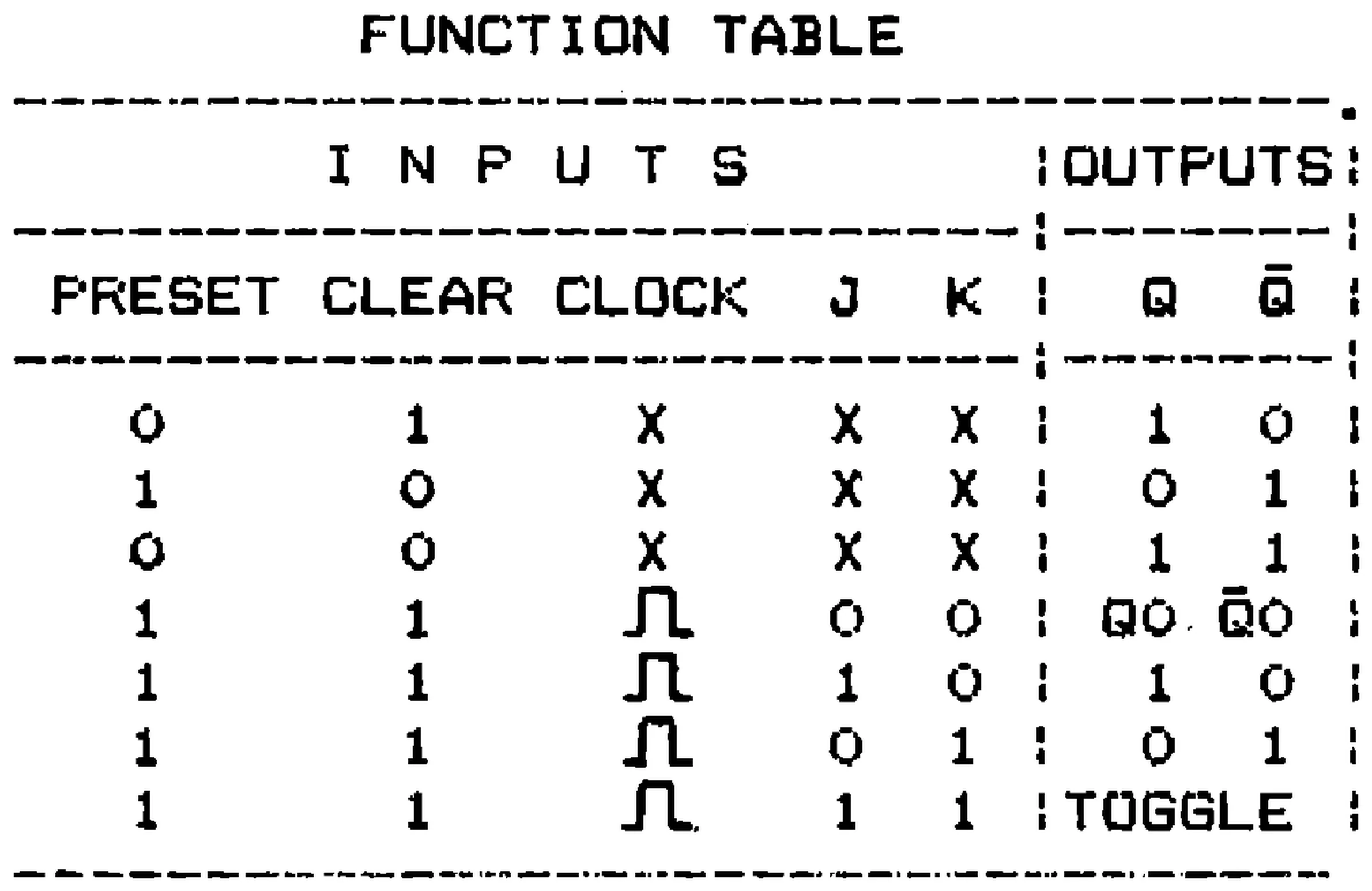

IPRS Băneasa CDB476E: Function table (1990 catalogue)No image available
