General view

CDB8136E

IPRS Băneasa

Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
23 OCT 2026

Specifications

Type
TTL digital integrated circuit
Function
6-bit comparators
Package
MP-117
Logic family
TTL (standard) (see Variants)
Operating temperature range
0…+70 °C (see Variants)
Max. propagation delay (tPLH max)
45–60 ns (see Variants)
Supply voltage (VS)
4.75…5.25 V (see Variants)

Sources: [1][2]

Variants (2)

CDB8136ETTL (standard)0…+70 °C454.75…5.25 V
CDB8136C——60—

Click a column heading to sort. „+” adds a variant to the comparison (CDB8136E).

Description

The CDB8136E is a TTL digital integrated circuit of the CDB series of IPRS Băneasa: 6-bit comparators [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the CDB8136E and CDB8136C as 6-bit comparators in an MP-117 package [1]. By the catalog’s table of families, the CDB8136E works at 0…+70 °C from a 4.75…5.25 V supply [2].

It gives the maximum propagation delay tPLH as 45 ns for the CDB8136E and 60 ns for the CDB8136C [1].

Gallery

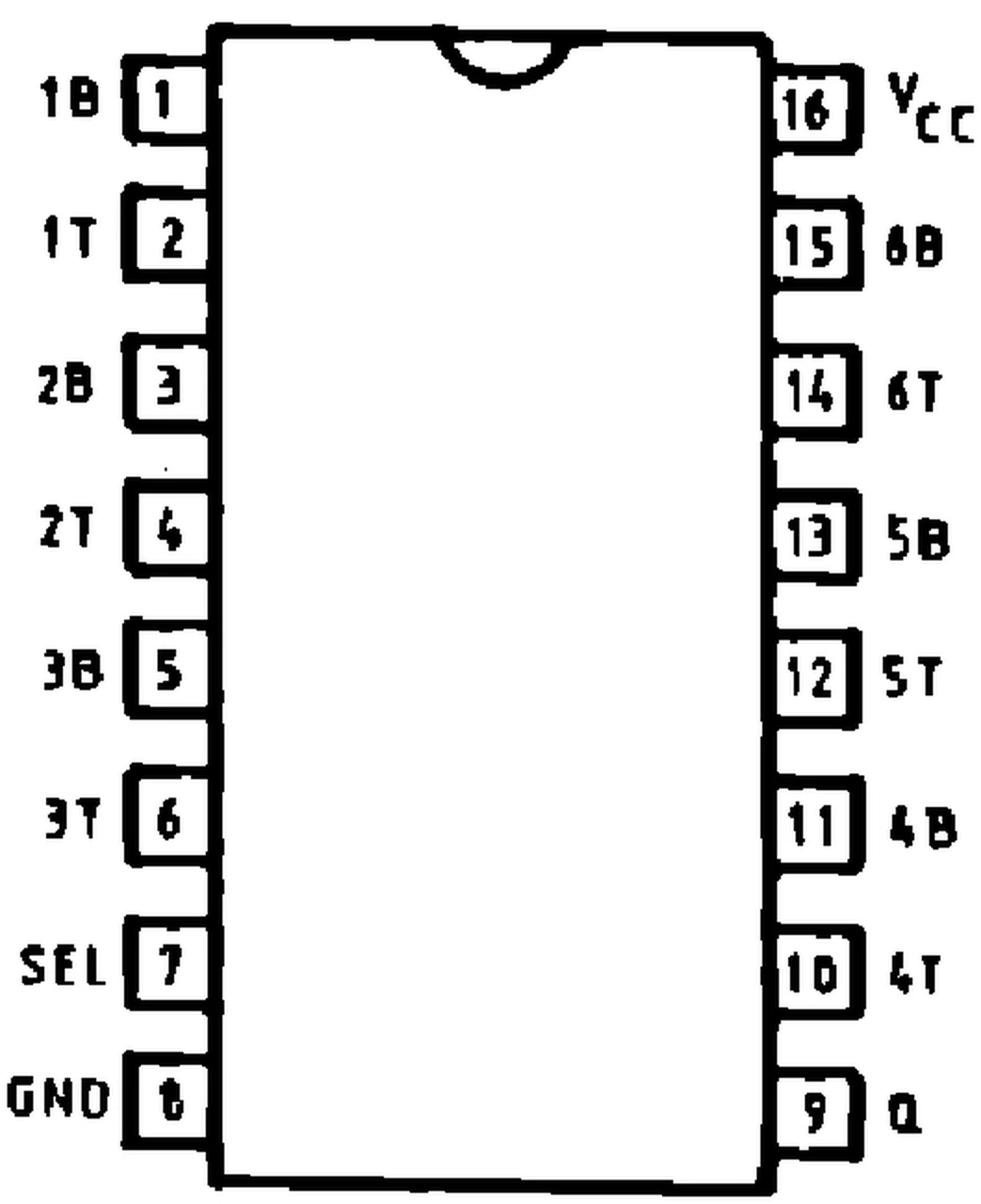

IPRS Băneasa CDB8136E: Pinout (1990 catalogue)No image available

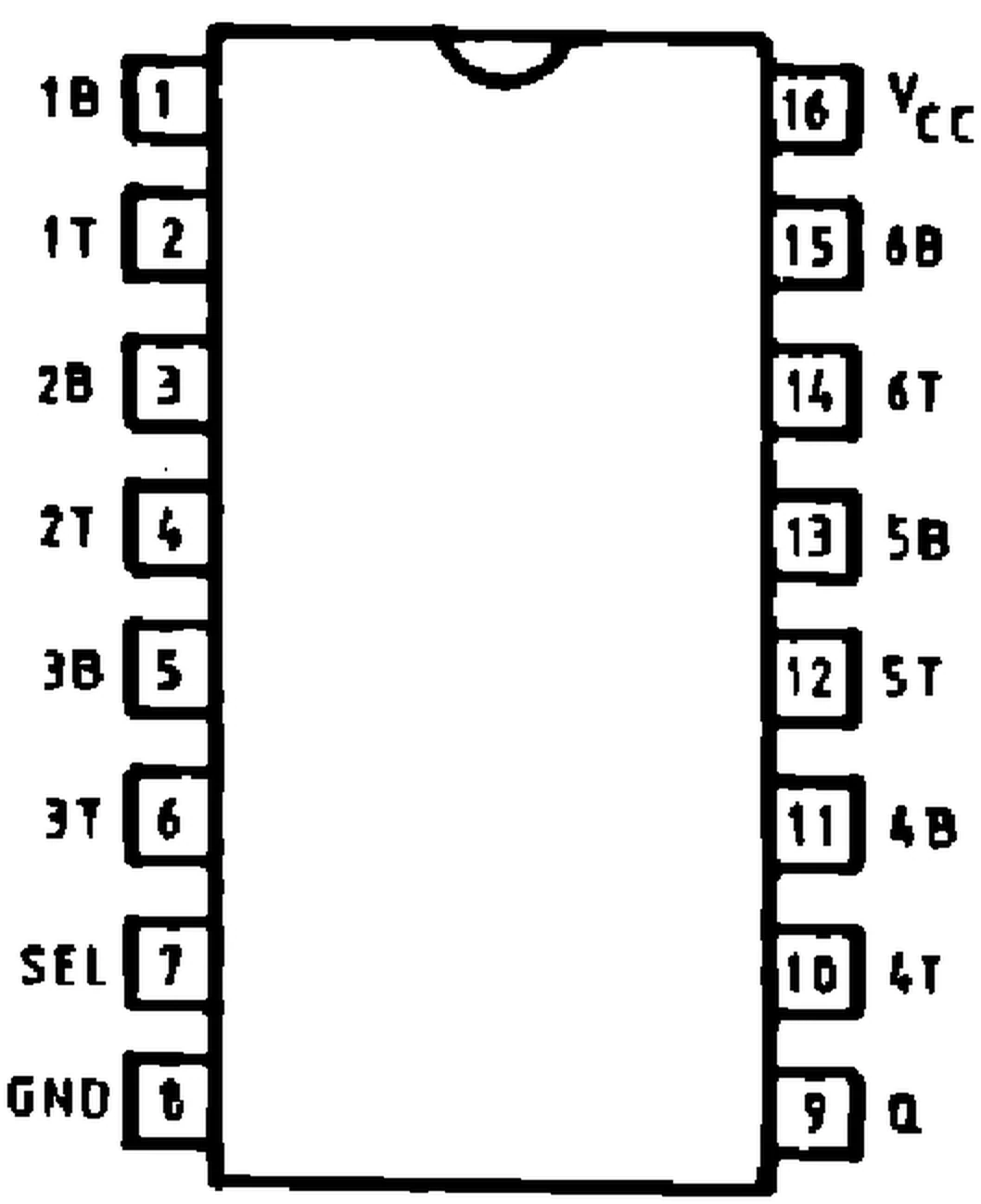

Pinout (1990 catalogue)
IPRS Băneasa CDB8136E: MP-117 case outline (dimensions in mm)No image available
MP-117 case outline (dimensions in mm)

Documents

No documents available yet.

References

  1. [1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „T.T.L. families”, p. 1-27
  2. [2]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „General informations”, „Basic characteristics”, p. 1-XX
