FZH121
IPRS Băneasa
- Also known as
- FZH125
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Integrated circuits
- Documentation score
- 1/5
- Last edited
- 23 OCT 2026
Specifications
- Type
- HLL digital integrated circuit
- Function
- dual 5-input NAND gates
- Package
- MP-117
- Logic family
- HLL
- Operating temperature range
- 0…+70 °C, −25…+85 °C (see Variants)
- Supply voltage (VS)
- 13.5…17 V
Variants (2)
| Compare | ||
|---|---|---|
| FZH121 | 0…+70 °C | |
| FZH125 | −25…+85 °C |
Click a column heading to sort. „+” adds a variant to the comparison (FZH121).
Description
The FZH121 is an HLL digital integrated circuit of the FZH series of IPRS Băneasa: dual 5-input NAND gates [1].

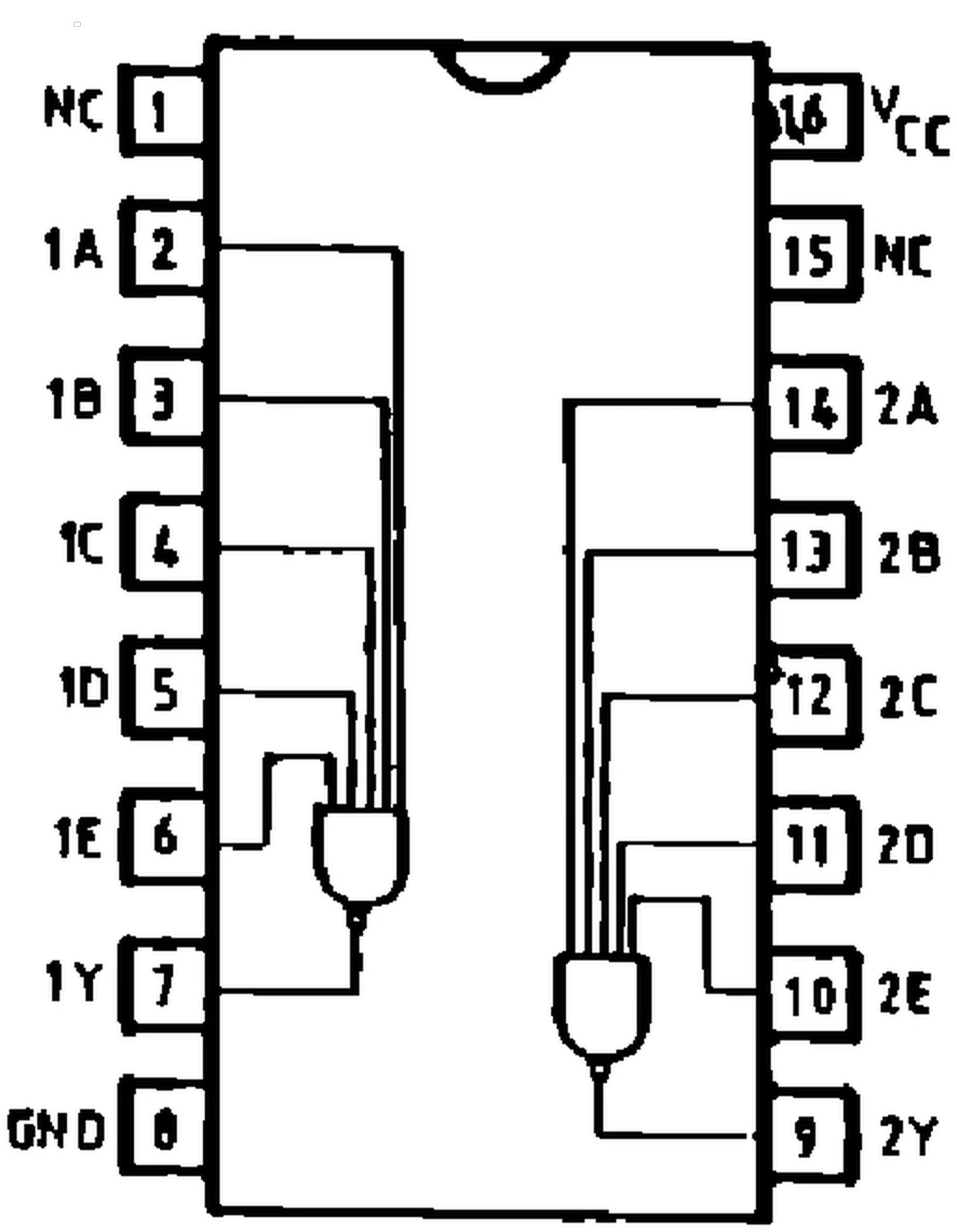

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the FZH121 and FZH125 as dual 5-input NAND gates in an MP-117 package, with the logic function Y = ¬(A·B·C·D·E) [1]. By the catalog’s table of families, the FZH121 works at 0…+70 °C and the FZH125 at −25…+85 °C, both from a 13.5…17 V supply [2].
For the HLL family (FZH), the catalog’s table of basic characteristics per NAND gate gives VIH min 7.5 V, VIL max 4.5 V, VOL max 1.7 V, VOH min 12 V, IOL min 18 mA, a mean power dissipation of 30 mW and typical propagation delays tpLH and tpHL of 175 ns [2].
Gallery
No image available
No image availableDocuments
No documents available yet.
References
- [1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „H.L.L.”, p. 1-28
- [2]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „General informations”, „Basic characteristics”, p. 1-XX
