FZH171
IPRS Băneasa
- Also known as
- FZH175
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Integrated circuits
- Documentation score
- 1/5
- Last edited
- 23 OCT 2026
Specifications
- Type
- HLL digital integrated circuit
- Function
- dual expandable 4-input NAND gates
- Package
- MP-117
- Logic family
- HLL
- Operating temperature range
- 0…+70 °C, −25…+85 °C (see Variants)
- Supply voltage (VS)
- 13.5…17 V
Variants (2)
| Compare | ||
|---|---|---|
| FZH171 | 0…+70 °C | |
| FZH175 | −25…+85 °C |
Click a column heading to sort. „+” adds a variant to the comparison (FZH171).
Description
The FZH171 is an HLL digital integrated circuit of the FZH series of IPRS Băneasa: dual expandable 4-input NAND gates [1].

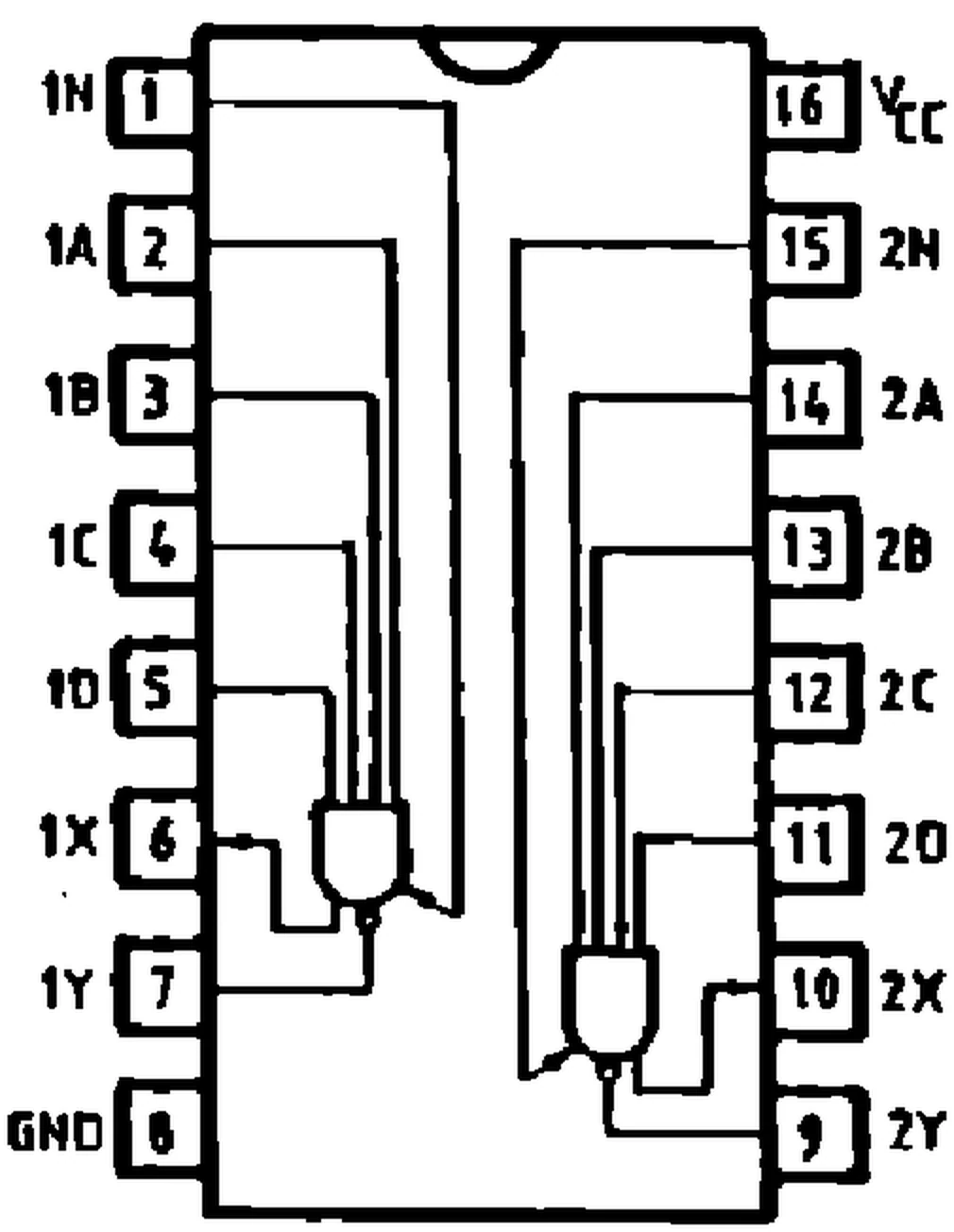

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the FZH171 and FZH175 as dual expandable 4-input NAND gates in an MP-117 package, with the logic function Y = ¬(A·B·C·D·X) [1]. By the catalog’s table of families, the FZH171 works at 0…+70 °C and the FZH175 at −25…+85 °C, both from a 13.5…17 V supply [2].
The catalog notes that an „N” pin for an external filter is also available [1].
For the HLL family (FZH), the catalog’s table of basic characteristics per NAND gate gives VIH min 7.5 V, VIL max 4.5 V, VOL max 1.7 V, VOH min 12 V, IOL min 18 mA, a mean power dissipation of 30 mW and typical propagation delays tpLH and tpHL of 175 ns [2].
Gallery
No image available
No image availableDocuments
No documents available yet.
References
- [1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „H.L.L.”, p. 1-29
- [2]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 1 „Digital integrated circuits”, „General informations”, „Basic characteristics”, p. 1-XX
