General view

BS30016Q

IPRS Băneasa

Year
Unknown
Category
Components
Type
Microwave components
Documentation score
1/5
Last edited
25 OCT 2026

Specifications

Application
Schottky diode rings
Forward voltage matching (ΔVF), max
30 mV
Capacitance matching (ΔCo), max
0.1 pF
Package
TO-50s

Sources: [1]

Description

The BS30016Q is a Schottky diode ring made by IPRS Băneasa [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the BS30016Q among the „Schottky diode rings” of its „Microwave devices” section [1], with ΔVF ≤ 30 mV (IF = 10 mA), ΔCo ≤ 0.1 pF (f = 1 MHz, VR = 0), TO-50s case [1].

Gallery

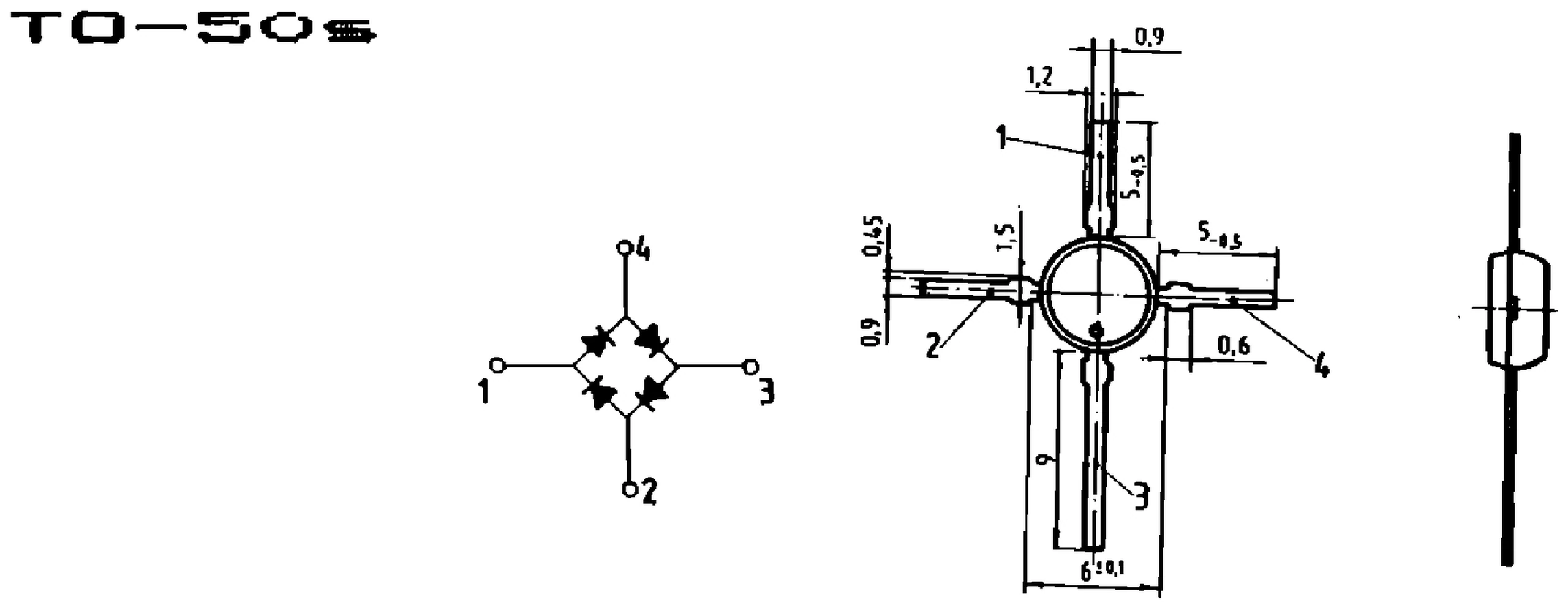

IPRS Băneasa BS30016Q: TO-50s case outline, Schottky diode ring (dimensions in mm)No image available
TO-50s case outline, Schottky diode ring (dimensions in mm)

Documents

No documents available yet.

References

  1. [1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 4 „Microwave devices”, „Schottky diode rings”, p. 4-03
