General view

T128F

IPRS Băneasa

Also known as
T128F200, T128F400, T128F600, T128F800, T128F1000, T128F1100, T128F1200, T128F1300
Year
Unknown
Category
Components
Type
Thyristors, diacs & triacs
Documentation score
1/5
Last edited
25 OCT 2026

Specifications

Type
fast switching thyristor
Repetitive peak reverse voltage (VRRM)
200–1300 V (see Variants)
Max. average on-state current (IT(AV)M)
191 A
IT(AV)M given at
TC = 54 °C
Max. RMS on-state current (ITRMS)
300 A
Max. surge on-state current (ITSM)
2450 A
I²t
30000 A²s
Gate trigger voltage (VGT)
2 V
Gate trigger current (IGT)
150 mA
On-state voltage (VTM)
2.6 V
VTM measured at IT
600 A
Off-state / reverse current (ID = IR), max.
30 mA
Turn-off time (tq)
30 µs
Critical rate of rise of off-state voltage (dV/dt)
50 V/µs
Critical rate of rise of on-state current (di/dt)
160 A/µs
Max. junction temperature (TJM)
125 °C
Thermal resistance, junction–case (Rth j-c)
0.163 °C/W
Package
T-20
Application
fast switching thyristor

Sources: [1]

Variants (8)

Note
T128F2002001990 catalogue (preliminary data)
T128F4004001990 catalogue (preliminary data)
T128F6006001990 catalogue (preliminary data)
T128F8008001990 catalogue (preliminary data)
T128F100010001990 catalogue (preliminary data)
T128F110011001990 catalogue (preliminary data)
T128F120012001990 catalogue (preliminary data)
T128F130013001990 catalogue (preliminary data)

Click a column heading to sort. „+” adds a variant to the comparison (T128F).

Description

The T128F is a silicon fast switching thyristor made by IPRS Băneasa [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the T128F200, T128F400, T128F600, T128F800, T128F1000, T128F1100, T128F1200 and T128F1300 (preliminary data) among the „Fast switching thyristors ( ITAVM > 100 A )” of its „Thyristors” section [1]. Their values are under Variants [1]. In this table VT (at the IT given), ID = IR, IGT and VGT are maximum values, tq is a maximum, marked „+”: „Different tq groups: G = 30, F = 25, E = 20, S = 18 µs”, i²t is printed in kA²s and IT in kA, dv/dt is given with the footnote „Different dv/dt groups: B = 50, C = 400, L = 400, M = 1000 V/µs” and RthJ-C = 0.163 °C/W [1].

Gallery

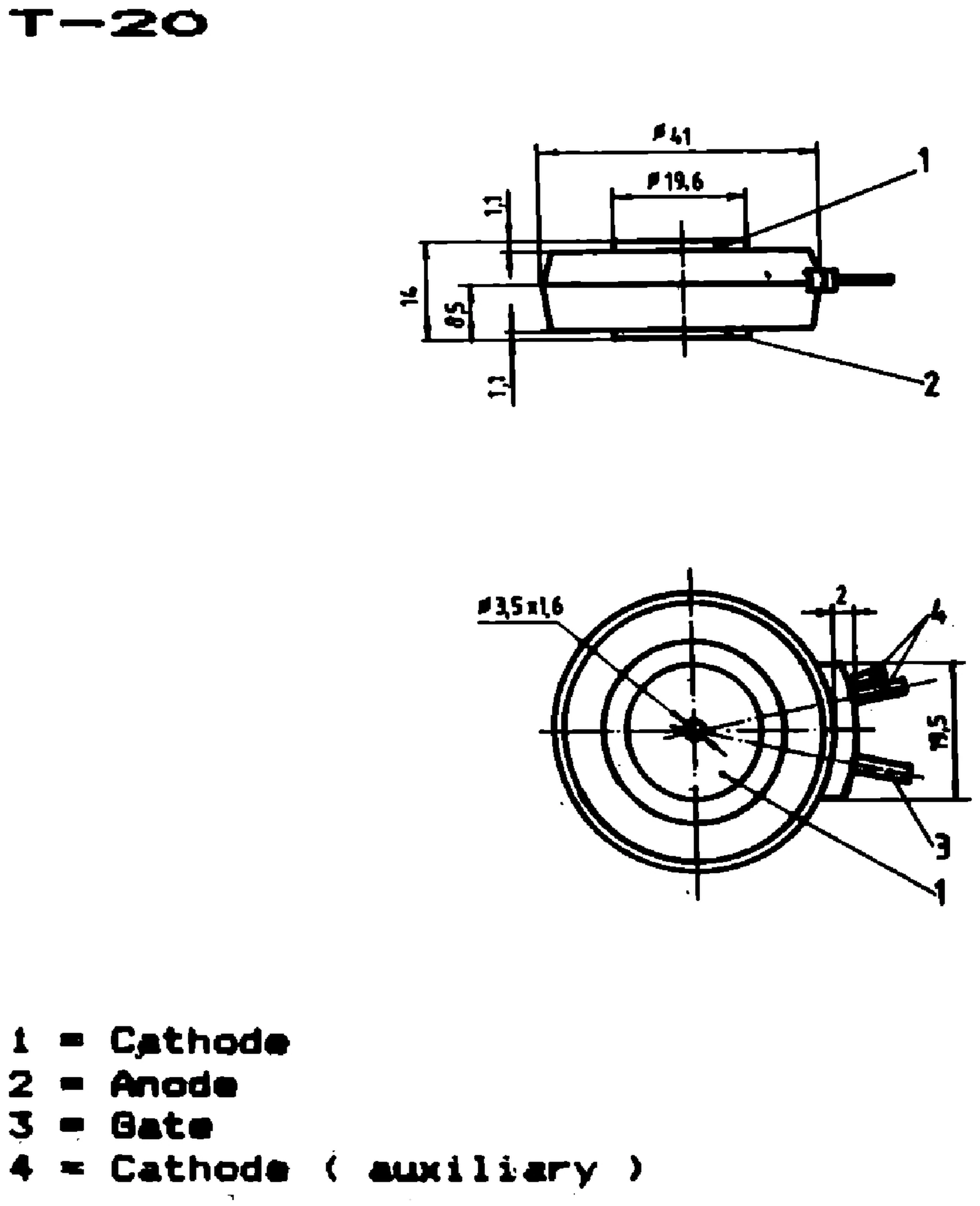

IPRS Băneasa T128F: T-20 case outline, thyristors and triacs (dimensions in mm)No image available
T-20 case outline, thyristors and triacs (dimensions in mm)

Documents

No documents available yet.

References

  1. [1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 6 „Thyristors & triacs”, „Thyristors”, „Fast switching thyristors ( ITAVM > 100 A )”, pp. 6-40…6-41
