T30F

IPRS Băneasa

Also known as: T30F1, T30F2, T30F3, T30F4, T30F5, T30F6, T30F7, T30F8, T30F9, T30F10, T30F11, T30F12
Manufacturer: IPRS Băneasa
Country: Romania
Year: Unknown
Category: Components
Type: Thyristors, diacs & triacs
Documentation score: 1/5
Last edited: 25 OCT 2026

Specifications

Type: fast switching thyristor
Repetitive peak reverse voltage (VRRM): 100–1200 V (see Variants)
Max. average on-state current (IT(AV)M): 30 A
IT(AV)M given at: TC = 85 °C
Max. RMS on-state current (ITRMS): 45 A
Max. surge on-state current (ITSM): 450 A
I²t: 1000 A²s
Gate trigger voltage (VGT): 1.5 V
Gate trigger current (IGT): 150 mA
On-state voltage (VTM): 1.8 V
VTM measured at IT: 30 A
Off-state / reverse current (ID = IR), max.: 10 mA
Turn-off time (tq): 20 µs
Critical rate of rise of off-state voltage (dV/dt): 50 V/µs
Critical rate of rise of on-state current (di/dt): 50 A/µs
Max. junction temperature (TJM): 125 °C
Thermal resistance, junction–case (Rth j-c): 0.84 °C/W
Package: DO-5Ty
Application: fast switching thyristor

Sources: [1]

Variants (12)

		Note
T30F1	100	1990 catalogue
T30F2	200	1990 catalogue
T30F3	300	1990 catalogue
T30F4	400	1990 catalogue
T30F5	500	1990 catalogue
T30F6	600	1990 catalogue
T30F7	700	1990 catalogue
T30F8	800	1990 catalogue
T30F9	900	1990 catalogue
T30F10	1000	1990 catalogue
T30F11	1100	1990 catalogue
T30F12	1200	1990 catalogue

Click a column heading to sort. „+” adds a variant to the comparison (T30F).

Description

The T30F is a silicon fast switching thyristor made by IPRS Băneasa [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the T30F1…T30F12 (12 codes) among the „Fast switching thyristors ( ITAVM < 100 A )” of its „Thyristors” section [1]. Their values are under Variants [1]. In this table VT (at the IT given), ID = IR, IGT and VGT are maximum values, tq is a maximum, i²t is printed in kA²s, dv/dt is given with the footnote „Different dv/dt groups: C = 100, D = 200, G = 500, K = 1000 V/µs” and RthJ-C = 0.84 °C/W [1].

Gallery

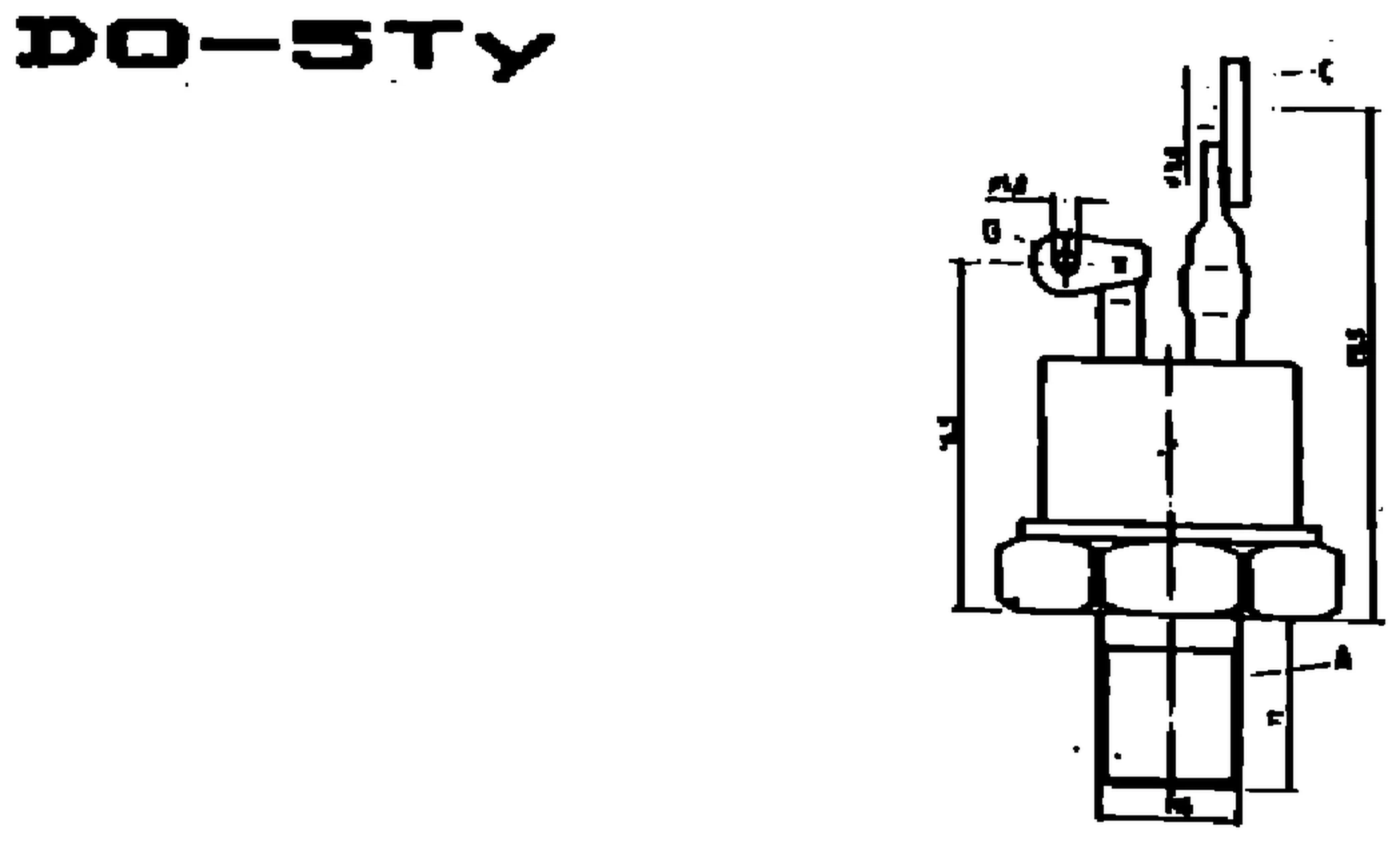

IPRS Băneasa T30F: DO-5Ty case outline, thyristors and triacs (dimensions in mm) — DO-5Ty case outline, thyristors and triacs (dimensions in mm)

Documents

No documents available yet.

References

[1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 6 „Thyristors & triacs”, „Thyristors”, „Fast switching thyristors ( ITAVM < 100 A )”, pp. 6-34…6-35
