General view

T31F

IPRS Băneasa

Also known as
T31F200, T31F400, T31F600, T31F800, T31F900, T31F1000, T31F1100, T31F1200
Year
Unknown
Category
Components
Type
Thyristors, diacs & triacs
Documentation score
1/5
Last edited
25 OCT 2026

Specifications

Type
fast switching thyristor
Repetitive peak reverse voltage (VRRM)
200–1200 V (see Variants)
Max. average on-state current (IT(AV)M)
38 A
IT(AV)M given at
TC = 75 °C
Max. RMS on-state current (ITRMS)
60 A
Max. surge on-state current (ITSM)
1000 A
I²t
5000 A²s
Gate trigger voltage (VGT)
1.4 V
Gate trigger current (IGT)
150 mA
On-state voltage (VTM)
2.1 V
VTM measured at IT
120 A
Off-state / reverse current (ID = IR), max.
20 mA
Turn-off time (tq)
25 µs
Critical rate of rise of off-state voltage (dV/dt)
50 V/µs
Critical rate of rise of on-state current (di/dt)
120 A/µs
Max. junction temperature (TJM)
125 °C
Thermal resistance, junction–case (Rth j-c)
0.72 °C/W
Package
B-22
Application
fast switching thyristor

Sources: [1]

Variants (8)

Note
T31F2002001990 catalogue (preliminary data)
T31F4004001990 catalogue (preliminary data)
T31F6006001990 catalogue (preliminary data)
T31F8008001990 catalogue (preliminary data)
T31F9009001990 catalogue (preliminary data)
T31F100010001990 catalogue (preliminary data)
T31F110011001990 catalogue (preliminary data)
T31F120012001990 catalogue (preliminary data)

Click a column heading to sort. „+” adds a variant to the comparison (T31F).

Description

The T31F is a silicon fast switching thyristor made by IPRS Băneasa [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the T31F200, T31F400, T31F600, T31F800, T31F900, T31F1000, T31F1100 and T31F1200 (preliminary data) among the „Fast switching thyristors ( ITAVM < 100 A )” of its „Thyristors” section [1]. Their values are under Variants [1]. In this table VT (at the IT given), ID = IR, IGT and VGT are maximum values, tq is a maximum, marked „*”: „Different tq groups: F = 25, E = 20, D = 15 µs”, i²t is printed in kA²s, dv/dt is given with the footnote „Different dv/dt groups: C = 100, D = 200, G = 500, K = 1000 V/µs” and RthJ-C = 0.72 °C/W [1].

Gallery

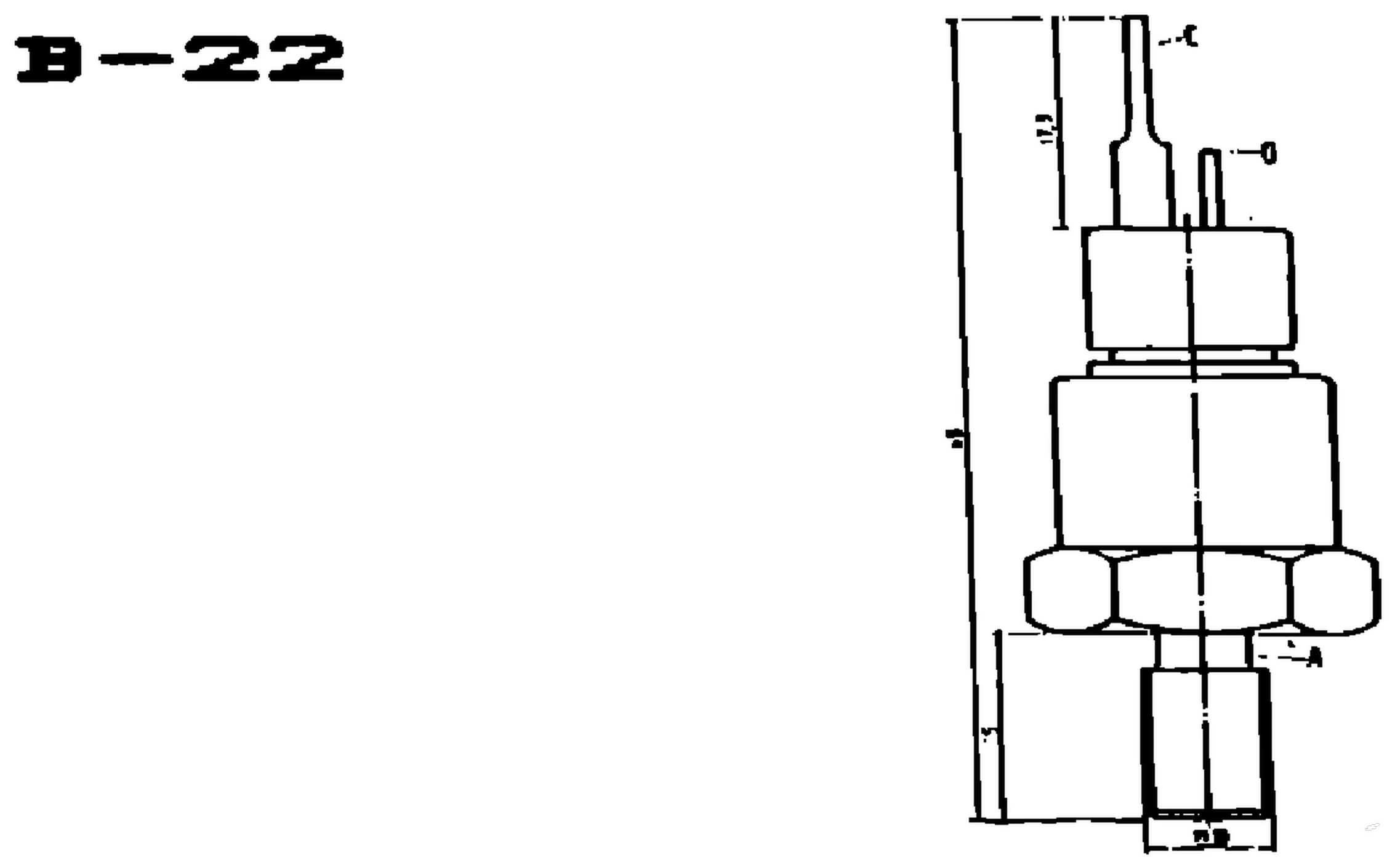

IPRS Băneasa T31F: B-22 case outline, thyristors and triacs (dimensions in mm)No image available
B-22 case outline, thyristors and triacs (dimensions in mm)

Documents

No documents available yet.

References

  1. [1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 6 „Thyristors & triacs”, „Thyristors”, „Fast switching thyristors ( ITAVM < 100 A )”, pp. 6-36…6-37
