General view

T40F

IPRS Băneasa

Also known as
T40F200, T40F400, T40F600, T40F800, T40F900, T40F1000, T40F1100, T40F1200, T40F1300
Year
Unknown
Category
Components
Type
Thyristors, diacs & triacs
Documentation score
1/5
Last edited
25 OCT 2026

Specifications

Type
fast switching thyristor
Repetitive peak reverse voltage (VRRM)
200–1300 V (see Variants)
Max. average on-state current (IT(AV)M)
40 A
IT(AV)M given at
TC = 85 °C
Max. RMS on-state current (ITRMS)
80 A
Max. surge on-state current (ITSM)
1100 A
I²t
6000 A²s
Gate trigger voltage (VGT)
2 V
Gate trigger current (IGT)
200 mA
On-state voltage (VTM)
2.2 V
VTM measured at IT
160 A
Off-state / reverse current (ID = IR), max.
20 mA
Turn-off time (tq)
20 µs
Critical rate of rise of off-state voltage (dV/dt)
50 V/µs
Critical rate of rise of on-state current (di/dt)
120 A/µs
Max. junction temperature (TJM)
125 °C
Thermal resistance, junction–case (Rth j-c)
0.45 °C/W
Package
B-27
Application
fast switching thyristor

Sources: [1]

Variants (9)

Note
T40F2002001990 catalogue (preliminary data)
T40F4004001990 catalogue (preliminary data)
T40F6006001990 catalogue (preliminary data)
T40F8008001990 catalogue (preliminary data)
T40F9009001990 catalogue (preliminary data)
T40F100010001990 catalogue (preliminary data)
T40F110011001990 catalogue (preliminary data)
T40F120012001990 catalogue (preliminary data)
T40F130013001990 catalogue (preliminary data)

Click a column heading to sort. „+” adds a variant to the comparison (T40F).

Description

The T40F is a silicon fast switching thyristor made by IPRS Băneasa [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the T40F200…T40F1300 (9 codes, preliminary data) among the „Fast switching thyristors ( ITAVM < 100 A )” of its „Thyristors” section [1]. Their values are under Variants [1]. In this table VT (at the IT given), ID = IR, IGT and VGT are maximum values, tq is a maximum, i²t is printed in kA²s, dv/dt is given with the footnote „Different dv/dt groups: B = 50, C = 400, F = 1000 V/µs” and RthJ-C = 0.45 °C/W [1].

Gallery

IPRS Băneasa T40F: B-27 case outline, thyristors and triacs (dimensions in mm)No image available

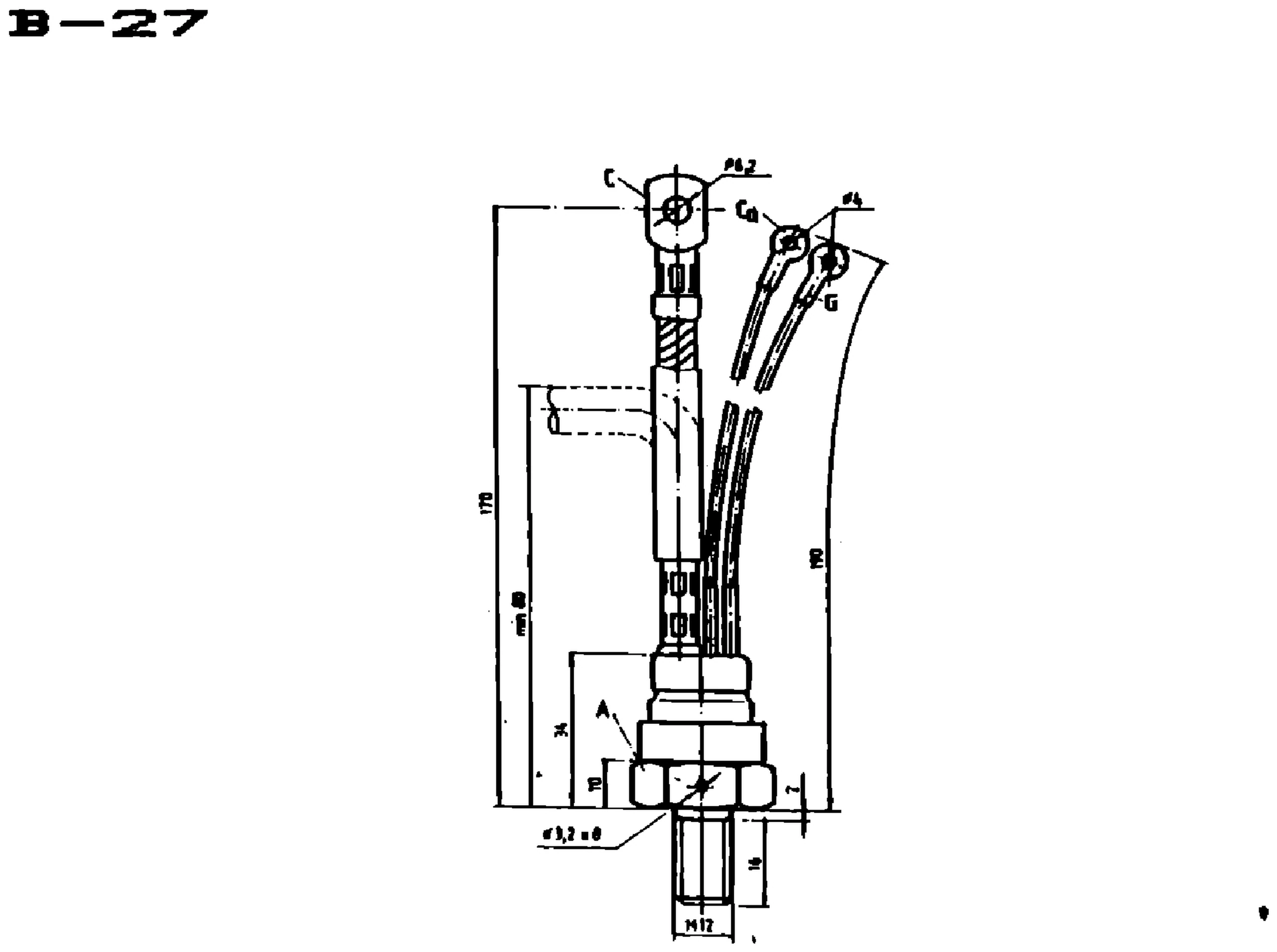

B-27 case outline, thyristors and triacs (dimensions in mm)

Documents

No documents available yet.

References

  1. [1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 6 „Thyristors & triacs”, „Thyristors”, „Fast switching thyristors ( ITAVM < 100 A )”, pp. 6-36…6-37
