General view

T718N

IPRS Băneasa

Also known as: T718N400, T718N600, T718N800, T718N1000, T718N1100, T718N1200, T718N1400
Manufacturer: IPRS Băneasa
Country: Romania
Year: Unknown
Category: Components
Type: Thyristors, diacs & triacs
Documentation score: 1/5
Last edited: 25 OCT 2026

Specifications

Type: mains frequency thyristor
Repetitive peak reverse voltage (VRRM): 400–1400 V (see Variants)
Max. average on-state current (IT(AV)M): 875 A
IT(AV)M given at: TC = 63 °C
Max. RMS on-state current (ITRMS): 1500 A
Max. surge on-state current (ITSM): 12500 A
I²t: 781000 A²s
Gate trigger voltage (VGT): 1.5 V
Gate trigger current (IGT): 250 mA
On-state voltage (VTM): 2 V
VTM measured at IT: 3000 A
Off-state / reverse current (ID = IR), max.: 80 mA
Turn-off time (tq): 250 µs
Critical rate of rise of off-state voltage (dV/dt): 400 V/µs
Critical rate of rise of on-state current (di/dt): 120 A/µs
Max. junction temperature (TJM): 125 °C
Thermal resistance, junction–case (Rth j-c): 0.038 °C/W
Package: T-36A
Application: mains frequency thyristor

Sources: [1]

Variants (7)

		Note
T718N400	400	1990 catalogue (preliminary data)
T718N600	600	1990 catalogue (preliminary data)
T718N800	800	1990 catalogue (preliminary data)
T718N1000	1000	1990 catalogue (preliminary data)
T718N1100	1100	1990 catalogue (preliminary data)
T718N1200	1200	1990 catalogue (preliminary data)
T718N1400	1400	1990 catalogue (preliminary data)

Click a column heading to sort. „+” adds a variant to the comparison (T718N).

Description

The T718N is a silicon mains frequency thyristor made by IPRS Băneasa [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the T718N400, T718N600, T718N800, T718N1000, T718N1100, T718N1200 and T718N1400 (preliminary data) among the „Mains frequency thyristors ( ITAVM > 100 A )” of its „Thyristors” section [1]. Their values are under Variants [1]. In this table VT (at the IT given), ID = IR, IGT and VGT are maximum values, tq is a maximum, i²t is printed in kA²s and IT in kA, dv/dt is given with the footnote „Different dv/dt groups: C = 400, F = 1000 V/µs” and RthJ-C = 0.038 °C/W [1].

Gallery

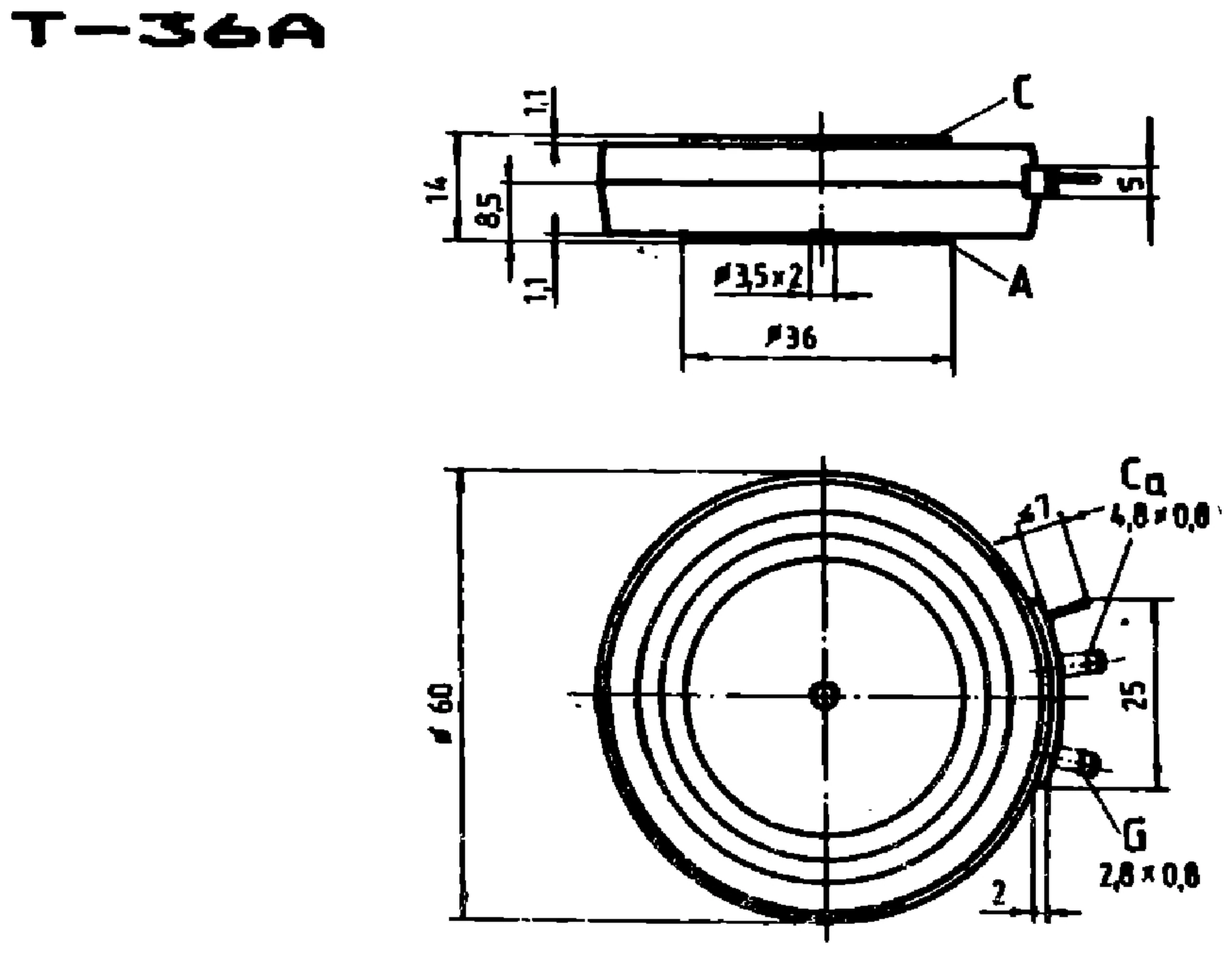

IPRS Băneasa T718N: T-36A case outline, thyristors and triacs (dimensions in mm) — T-36A case outline, thyristors and triacs (dimensions in mm)

Documents

No documents available yet.

References

[1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 6 „Thyristors & triacs”, „Thyristors”, „Mains frequency thyristors ( ITAVM > 100 A )”, pp. 6-22…6-23
