General view

2N5835

IPRS Băneasa

Year
Unknown
Category
Components
Type
Transistors
Documentation score
1/5
Last edited
25 OCT 2026

Specifications

Material
Si
Polarity
NPN
Max. power dissipation (Pc, Ptot, Pd)
0.2 W
Max. collector–emitter voltage |Vce|
10 V
Max. junction temperature (Tj)
175 °C
Transition frequency (ft)
2500 MHz
Package
TO-72a
Application
UHF amplifier

Sources: [1]

Description

The 2N5835 is a silicon NPN RF transistor for professional applications made by IPRS Băneasa [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the 2N5835 among the „RF transistors for professional applications” of its „High frequency” section [1], with application „UHF amplifier”, Ptot 200 mW (TA = 25 °C), TJM 175 °C, VCEO 10 V, fT ≥ 2500 MHz (IC = 10 mA), Crb ≤ 0.8 pF (VCB = 10 V), TO-72a case [1].

Gallery

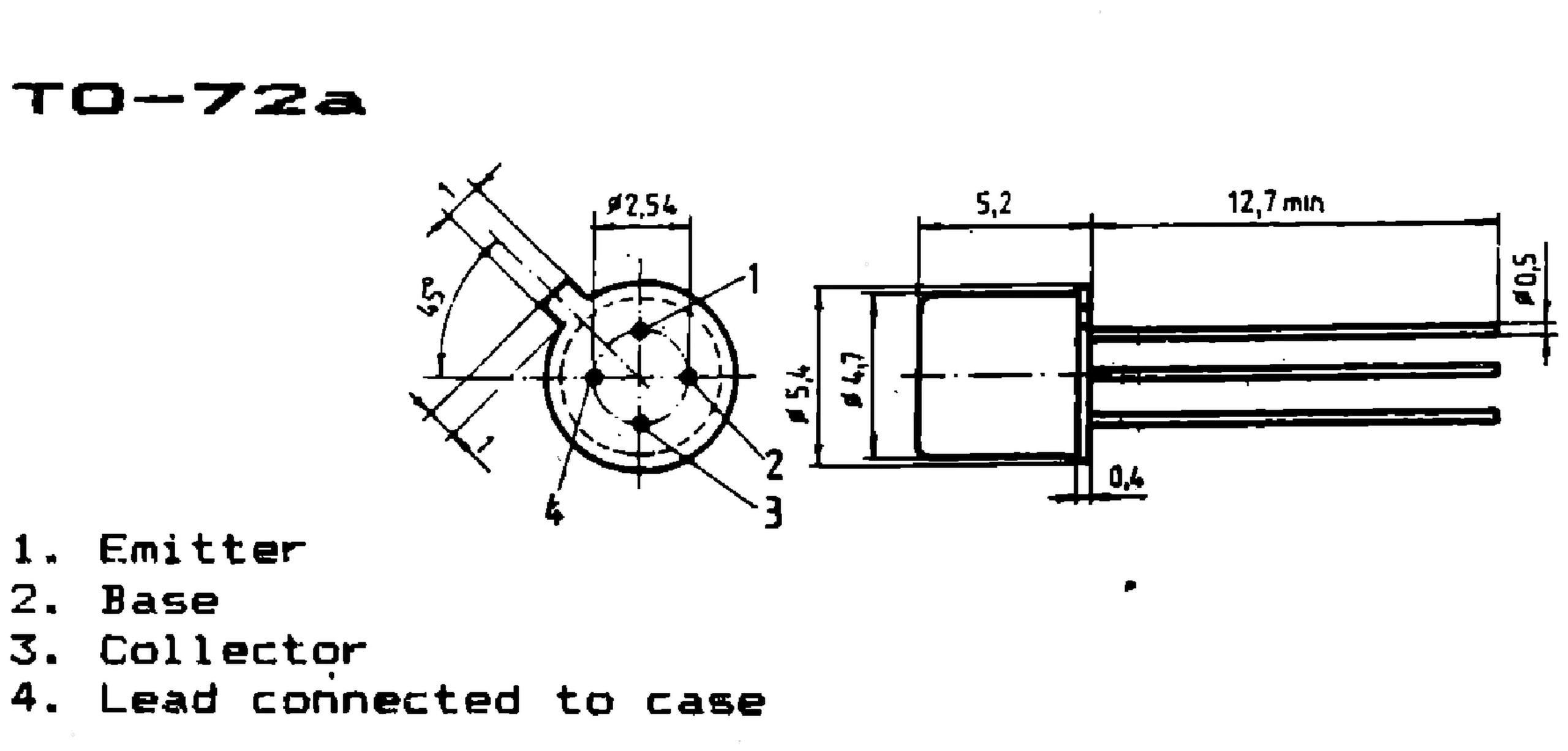

IPRS Băneasa 2N5835: TO-72a case outline and terminals, silicon transistors (dimensions in mm)No image available
TO-72a case outline and terminals, silicon transistors (dimensions in mm)

Documents

No documents available yet.

References

  1. [1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 3 „Silicon transistors”, „High frequency”, „RF transistors for professional applications”, pp. 3-62…3-63
