General view

BFW94

IPRS Băneasa

Year
Unknown
Category
Components
Type
Transistors
Documentation score
1/5
Last edited
25 OCT 2026

Specifications

Material
Si
Polarity
NPN
Max. power dissipation (Pc, Ptot, Pd)
0.7 W
Max. collector–emitter voltage |Vce|
20 V
Max. junction temperature (Tj)
150 °C
Transition frequency (ft)
3000 MHz
Feedback capacitance (C12e, Cre)
1.5 pF
Power gain (Gp)
9.5 dB
Package
TO-50
Application
Power UHF amplifier

Sources: [1]

Description

The BFW94 is a silicon NPN RF transistor for professional applications made by IPRS Băneasa [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the BFW94 (preliminary data) among the „RF transistors for professional applications” of its „High frequency” section [1], with application „Power UHF amplifier”, Ptot 700 mW (TA = 25 °C), TJM 150 °C, VCEO 20 V, Gp typ. 9.5 dB (f = 870 MHz), fT typ. 3000 MHz (IC = 100 mA), Cre ≤ 1.5 pF (VCB = 10 V), TO-50 case [1].

Gallery

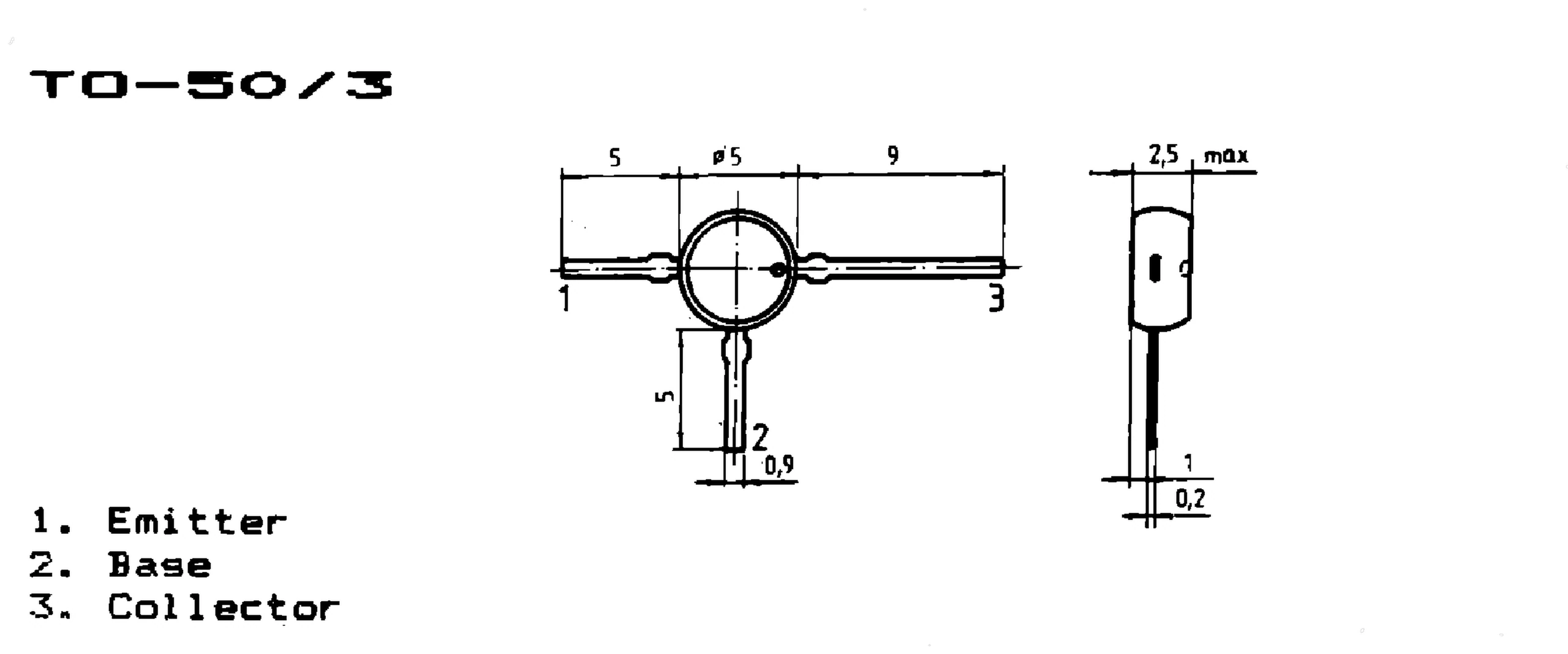

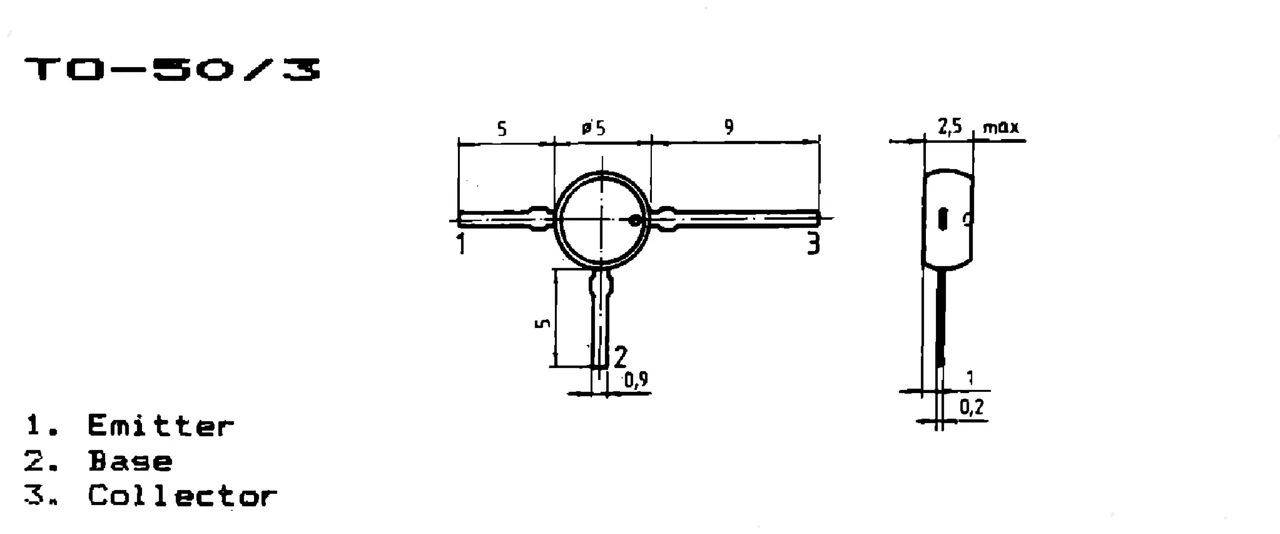

IPRS Băneasa BFW94: TO-50/3 case outline and terminals, silicon transistors (dimensions in mm)No image available
TO-50/3 case outline and terminals, silicon transistors (dimensions in mm)

Documents

No documents available yet.

References

  1. [1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 3 „Silicon transistors”, „High frequency”, „RF transistors for professional applications”, pp. 3-62…3-63
