GT400

IPRS Băneasa

Also known as
GT400A/3, GT400A/4, GT400A/5, GT400A/6, GT400A/7, GT400A/8, GT400A/9, GT400A/10, GT400B/3, GT400B/4, GT400B/5, GT400B/6, GT400B/7, GT400B/8, GT400B/9, GT400B/10, GT400C/3, GT400C/4, GT400C/5, GT400C/6, GT400C/7, GT400C/8, GT400C/9, GT400C/10, GT400D/3, GT400D/4, GT400D/5, GT400D/6, GT400D/7, GT400D/8, GT400D/9, GT400D/10, GT400E/3, GT400E/4, GT400E/5, GT400E/6, GT400E/7, GT400E/8, GT400E/9, GT400E/10
Year
Unknown
Category
Components
Type
Transistors
Documentation score
1/5
Last edited
25 OCT 2026

Specifications

Material
Si
Polarity
NPN
Max. power dissipation (Pc, Ptot, Pd)
1540–2500 W (see Variants)
Max. collector–emitter voltage |Vce|
300–1000 V (see Variants)
Max. collector–emitter voltage, base shorted |Vces|
300–1000 V (see Variants)
Max. collector current |Ic|
200–400 A (see Variants)
Max. base current |Ib|
30 A
Max. peak collector current (Icm)
300–600 A (see Variants)
Max. junction temperature (Tj)
125 °C
DC current gain (hFE), min
50
Collector–emitter saturation voltage (Vce sat)
2.5 V
Storage time (ts)
20000 ns
Fall time (tf)
4000 ns
Package
T-50
Application
high voltage switching giant Darlingtons

Sources: [1][2]

Variants (40)

Note
GT400A/325003003004006001990 catalogue; VCEsat at IC = 300 A; hFE at IC = 300 A, VCE = 5 V
GT400A/425004004004006001990 catalogue; VCEsat at IC = 300 A; hFE at IC = 300 A, VCE = 5 V
GT400A/525005005004006001990 catalogue; VCEsat at IC = 300 A; hFE at IC = 300 A, VCE = 5 V
GT400A/625006006004006001990 catalogue; VCEsat at IC = 300 A; hFE at IC = 300 A, VCE = 5 V
GT400A/725007007004006001990 catalogue; VCEsat at IC = 300 A; hFE at IC = 300 A, VCE = 5 V
GT400A/825008008004006001990 catalogue; VCEsat at IC = 300 A; hFE at IC = 300 A, VCE = 5 V
GT400A/925009009004006001990 catalogue; VCEsat at IC = 300 A; hFE at IC = 300 A, VCE = 5 V
GT400A/102500100010004006001990 catalogue; VCEsat at IC = 300 A; hFE at IC = 300 A, VCE = 5 V
GT400B/320003003003505251990 catalogue; VCEsat at IC = 240 A; hFE at IC = 240 A, VCE = 5 V
GT400B/420004004003505251990 catalogue; VCEsat at IC = 240 A; hFE at IC = 240 A, VCE = 5 V
GT400B/520005005003505251990 catalogue; VCEsat at IC = 240 A; hFE at IC = 240 A, VCE = 5 V
GT400B/620006006003505251990 catalogue; VCEsat at IC = 240 A; hFE at IC = 240 A, VCE = 5 V
GT400B/720007007003505251990 catalogue; VCEsat at IC = 240 A; hFE at IC = 240 A, VCE = 5 V
GT400B/820008008003505251990 catalogue; VCEsat at IC = 240 A; hFE at IC = 240 A, VCE = 5 V
GT400B/920009009003505251990 catalogue; VCEsat at IC = 240 A; hFE at IC = 240 A, VCE = 5 V
GT400B/102000100010003505251990 catalogue; VCEsat at IC = 240 A; hFE at IC = 240 A, VCE = 5 V
GT400C/316603003003004501990 catalogue; VCEsat at IC = 200 A; hFE at IC = 200 A, VCE = 5 V
GT400C/416604004003004501990 catalogue; VCEsat at IC = 200 A; hFE at IC = 200 A, VCE = 5 V
GT400C/516605005003004501990 catalogue; VCEsat at IC = 200 A; hFE at IC = 200 A, VCE = 5 V
GT400C/616606006003004501990 catalogue; VCEsat at IC = 200 A; hFE at IC = 200 A, VCE = 5 V
GT400C/716607007003004501990 catalogue; VCEsat at IC = 200 A; hFE at IC = 200 A, VCE = 5 V
GT400C/816608008003004501990 catalogue; VCEsat at IC = 200 A; hFE at IC = 200 A, VCE = 5 V
GT400C/916609009003004501990 catalogue; VCEsat at IC = 200 A; hFE at IC = 200 A, VCE = 5 V
GT400C/101660100010003004501990 catalogue; VCEsat at IC = 200 A; hFE at IC = 200 A, VCE = 5 V
GT400D/315403003002503751990 catalogue; VCEsat at IC = 160 A; hFE at IC = 160 A, VCE = 5 V
GT400D/415404004002503751990 catalogue; VCEsat at IC = 160 A; hFE at IC = 160 A, VCE = 5 V
GT400D/515405005002503751990 catalogue; VCEsat at IC = 160 A; hFE at IC = 160 A, VCE = 5 V
GT400D/615406006002503751990 catalogue; VCEsat at IC = 160 A; hFE at IC = 160 A, VCE = 5 V
GT400D/715407007002503751990 catalogue; VCEsat at IC = 160 A; hFE at IC = 160 A, VCE = 5 V
GT400D/815408008002503751990 catalogue; VCEsat at IC = 160 A; hFE at IC = 160 A, VCE = 5 V
GT400D/915409009002503751990 catalogue; VCEsat at IC = 160 A; hFE at IC = 160 A, VCE = 5 V
GT400D/101540100010002503751990 catalogue; VCEsat at IC = 160 A; hFE at IC = 160 A, VCE = 5 V
GT400E/315403003002003001990 catalogue; VCEsat at IC = 125 A; hFE at IC = 125 A, VCE = 5 V
GT400E/415404004002003001990 catalogue; VCEsat at IC = 125 A; hFE at IC = 125 A, VCE = 5 V
GT400E/515405005002003001990 catalogue; VCEsat at IC = 125 A; hFE at IC = 125 A, VCE = 5 V
GT400E/615406006002003001990 catalogue; VCEsat at IC = 125 A; hFE at IC = 125 A, VCE = 5 V
GT400E/715407007002003001990 catalogue; VCEsat at IC = 125 A; hFE at IC = 125 A, VCE = 5 V
GT400E/815408008002003001990 catalogue; VCEsat at IC = 125 A; hFE at IC = 125 A, VCE = 5 V
GT400E/915409009002003001990 catalogue; VCEsat at IC = 125 A; hFE at IC = 125 A, VCE = 5 V
GT400E/101540100010002003001990 catalogue; VCEsat at IC = 125 A; hFE at IC = 125 A, VCE = 5 V

Click a column heading to sort. „+” adds a variant to the comparison (GT400).

Description

The GT400 is a silicon NPN high voltage switching giant Darlington transistor made by IPRS Băneasa [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) lists the GT400A/3 to GT400A/10, GT400B/3 to GT400B/10, GT400C/3 to GT400C/10, GT400D/3 to GT400D/10 and GT400E/3 to GT400E/10 among the „High voltage switching giant Darlingtons” of its „Super power” section [1]. Their values are under Variants [1][2].

Gallery

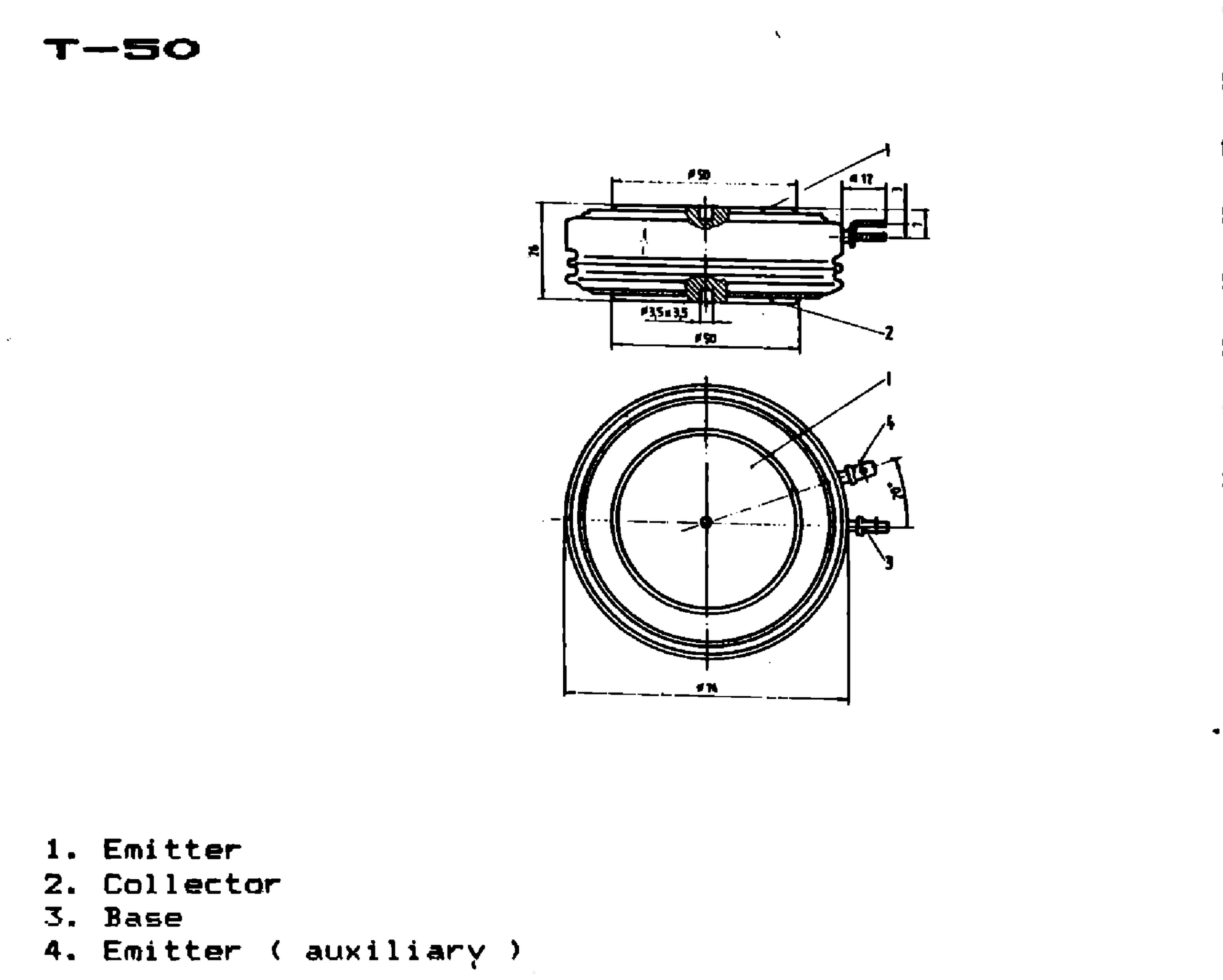

IPRS Băneasa GT400: T-50 case outline and terminals, silicon transistors (dimensions in mm)No image available
