DST-02
IPRS Băneasa
- Also known as
- DST-02 M, DST-02 S
- Manufacturer
- IPRS Băneasa
- Country
- Romania
- Year
- Unknown
- Category
- Industrial Electronics
- Type
- Industrial equipment
- Documentation score
- 1/5
- Last edited
- 25 OCT 2026
Specifications
- Application
- dangerous body voltage alarm for trolley-buses; insulation resistance lower-limit signalling
- Power supply
- 24 Vdc (±20 %)
- Dimensions
- 233 × 178 × 72 mm, 116 × 114 × 85 mm (see Variants)
Sources: [1]
Variants (2)
| Note | Compare | ||
|---|---|---|---|
| DST-02 M | 233 × 178 × 72 mm | electronic block | |
| DST-02 S | 116 × 114 × 85 mm | high voltage sensor; dimensions printed for „DST-01 S” |
Click a column heading to sort. „+” adds a variant to the comparison (DST-02).
Description
The DST-02 is a dangerous voltage alarm device for trolley-buses designed for negative-to-ground electrical networks, made by IPRS Băneasa [1].
The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) says that it monitors the body voltage against ground and signals when the preset value is exceeded, for passenger safety [1]. The system has two parts, the DST-02 M electronic block and the DST-02 S high voltage sensor; it is also suited to signalling the lower limit of the insulation resistance in equipment supplied with a negative-to-ground D.C. voltage [1].

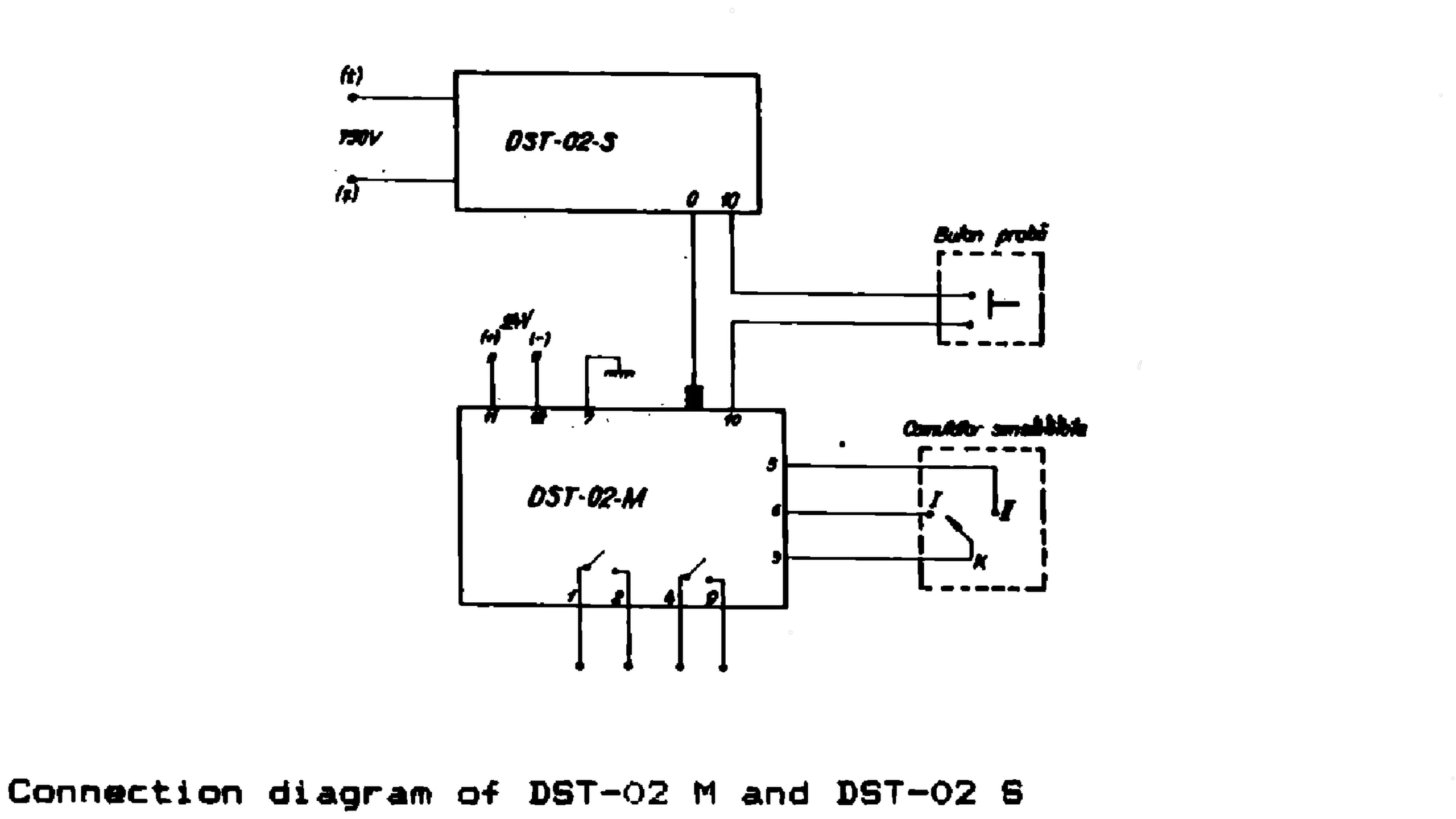

The catalog gives a supply voltage of 24 Vdc (±20 %), dangerous voltage signalling through normal-open, 50 W type relay contacts, and sensitivity levels of 40 V (±10 %) (I) and 100 V (±10 %) (II); the dimensions are 233 × 178 × 72 mm for the DST-02 M and 116 × 114 × 85 mm for the sensor, printed „DST-01 S” in that line [1]. The connection diagram of the DST-02 M and DST-02 S is in the Gallery [1].
Gallery
No image availableSchematics
No schematics available yet.
Documents
No documents available yet.
References
- [1]I.P.R.S. Băneasa – „Full Line Condensed Catalog”, 1990, section 10 „Systems, equipments & tools”, „DST-02 – Dangerous voltage alarm device”, p. 10-33
