125 L temperature chamber

The 125 L temperature chamber is a chamber for drying, reliability tests, storage, polymerisation and other processes requiring temperature conditions, made by IPRS Băneasa [1].

The I.P.R.S. Băneasa Full Line Condensed Catalog (1990) describes the chamber body as made of plate outside and stainless steel inside, with a 90 mm thick insulating layer of glass wadding between; the door has a joint, an electric motor with a fan on its axis is at the top of the chamber, the ventilation system has adjustment valves, and an external electronic control board is provided [1]. The temperature in the chamber is kept within 20…250 °C by a temperature regulator, according to the description; the table gives an operating temperature of 0…250 °C [1].

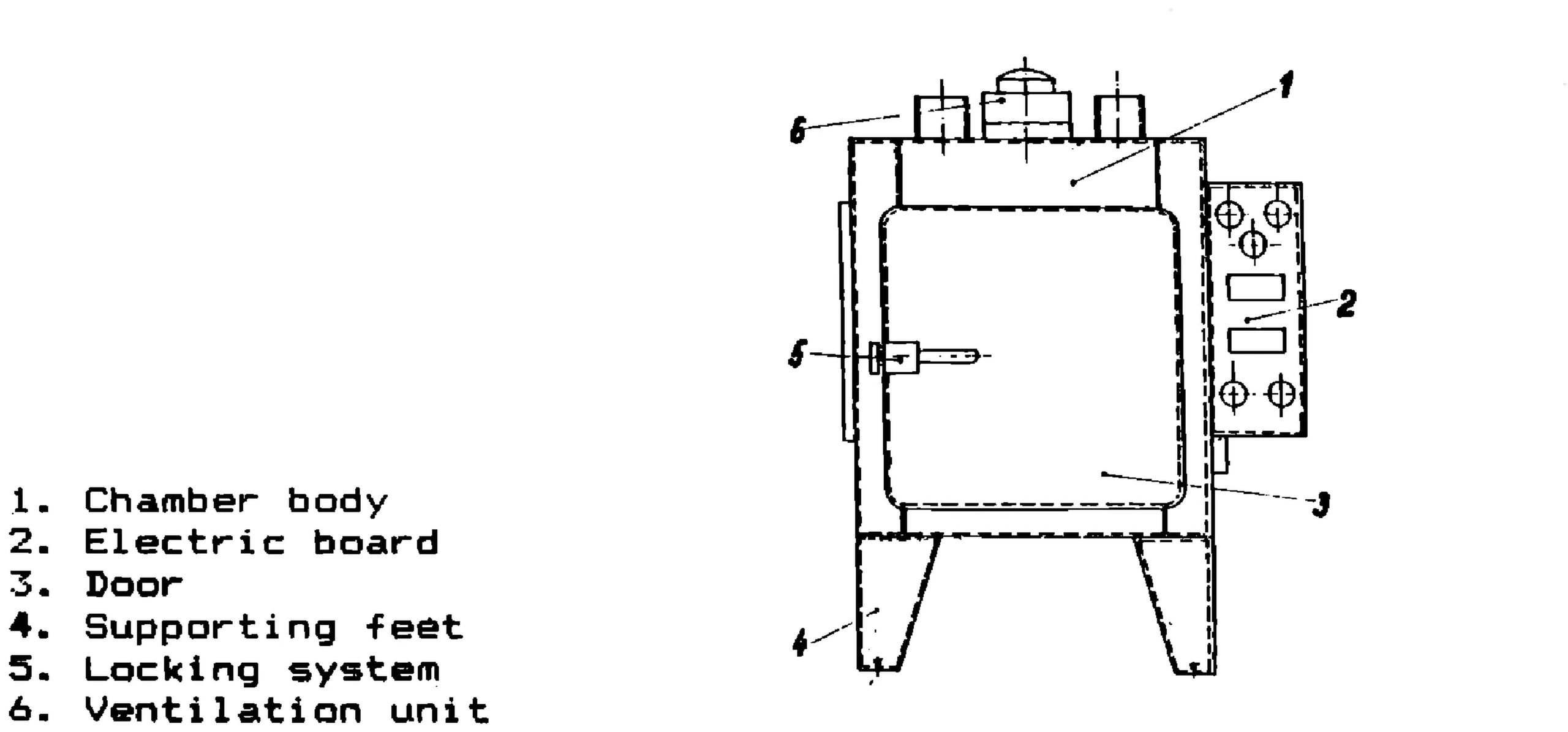

The catalog gives dimensions of 970 × 910 × 1350 mm, a weight of 240 kg, an inner volume of 500 × 500 × 500 mm, an input power of 5.0 kW and an accuracy of 1.5 % of the full range [1]. Its drawing, with the chamber body, electric board, door, supporting feet, locking system and ventilation unit numbered, is in the Gallery [1].
