Specifications
- Type
- controlled-avalanche rectifier diode
- Package
- MP-1
Sources: [1]
Variants (2)
| Compare | |
|---|---|
| ROR20A | |
| ROR40A |
The sources give the same data for all these codes; they do not say how the versions differ.
Click a column heading to sort. „+” adds a variant to the comparison (ROR20A/ROR40A).
Description
The ROR20A/ROR40A are controlled-avalanche rectifier diodes made in Romania by ICCE (I.C.C.E. București), listed in the Agenda radioelectronistului (1st edition, 1983) among the other semiconductor diodes of I.C.C.E., in an MP-1 package [1]. Their codes are in the Variants table; the package drawing is in the Gallery.

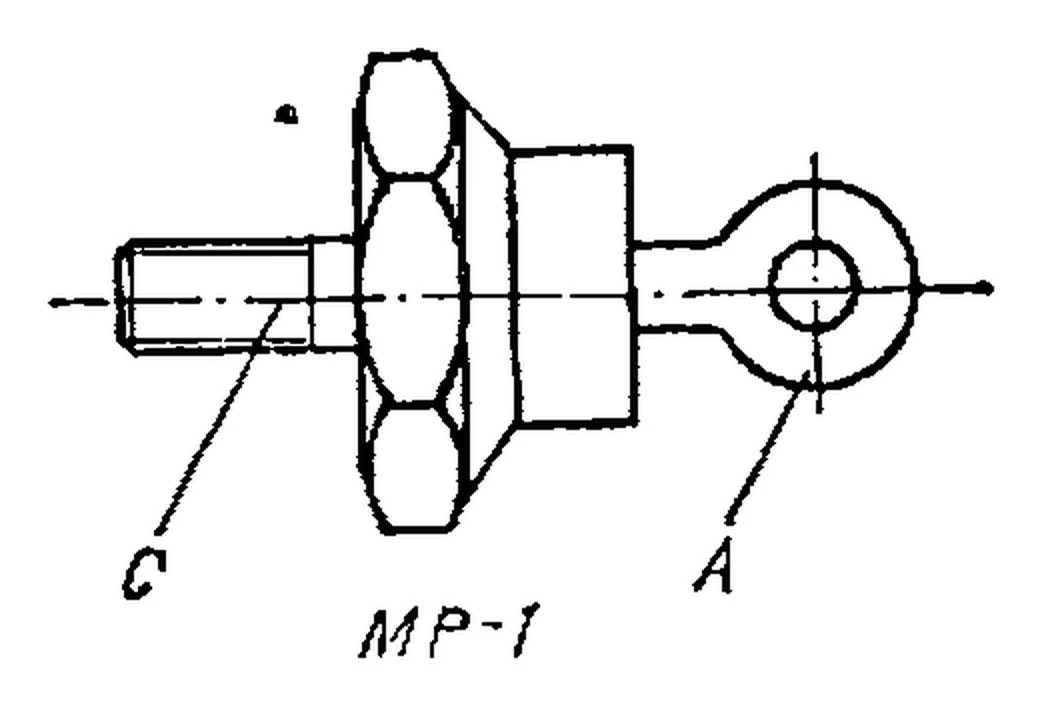

The two codes are printed together, „ROR 20 A” and „ROR 40 A”, with one description, „Diode redresoare cu avalanșă controlată” [1]; the package drawing (MP-1) marks the stud as the cathode C and the lug as the anode A [1].
They appear only in the 1st edition of the Agenda [1]; the 2nd edition (1989) no longer lists them among the semiconductor diodes [2].
Coded as (Romanian system, internal CCSIT-CE code) [3]:
| Part | Meaning |
|---|---|
| RO | manufacturer’s code: RO (Romania) |
| R | rectifier diode |
| 20A, 40A | identification number |
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.9.2.5 „Alte diode semiconductoare produse în R.S.R.” (producător: I.C.C.E.-București), p. 454
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, chapter 27 „Diode semiconductoare”, pp. 487–517
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 26.7 „Sistemul românesc (codul intern CCSIT-CE)”, p. 486
