MMC40160
Microelectronica
- Manufacturer
- Microelectronica
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Integrated circuits
- Documentation score
- 1/5
- Last edited
- 08 OCT 2026
Specifications
- Type
- CMOS digital integrated circuit
- Function
- programmable synchronous 4-bit counter
- Logic family
- CMOS (4000 series)
Sources: [1]
Variants (4)
| Note | Compare | |
|---|---|---|
| MMC40160 | decade, asynchronous CLEAR | |
| MMC40161 | binary, asynchronous CLEAR | |
| MMC40162 | decade, synchronous CLEAR | |
| MMC40163 | binary, synchronous CLEAR |
Click a column heading to sort. „+” adds a variant to the comparison (MMC40160).
Description

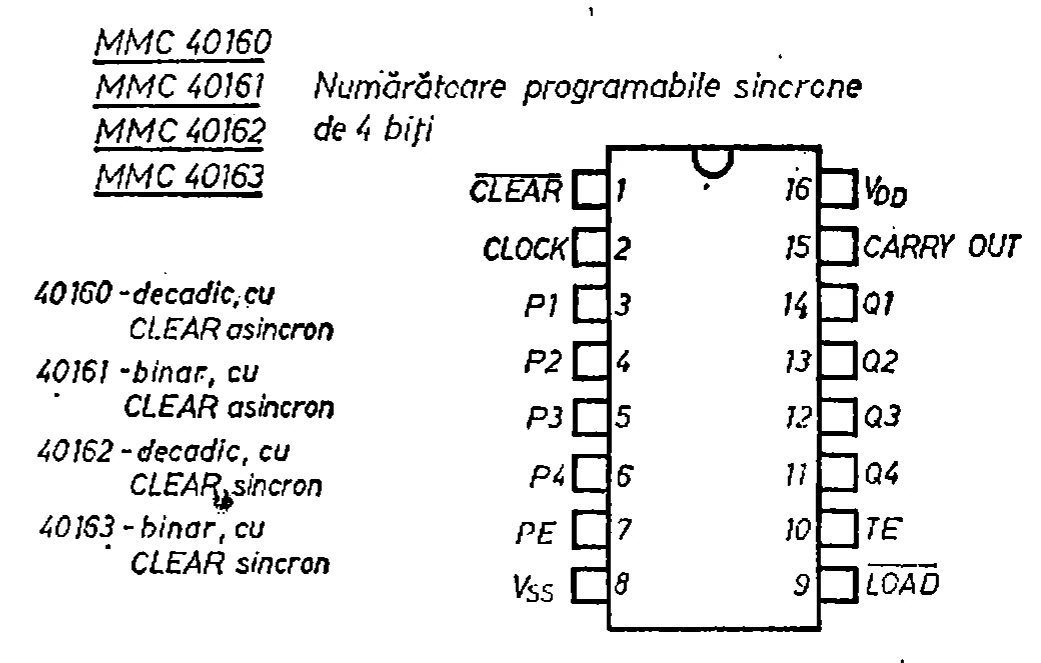

The MMC40160 is a CMOS logic integrated circuit of the 4000 series, a programmable synchronous 4-bit counter, listed in the Agenda radioelectronistului (2nd edition, 1989) among the logic integrated circuits made in Romania by Microelectronica [1]. Its codes (MMC40160, MMC40161, MMC40162 and MMC40163) are in the Variants table; the pinout is in the Gallery.
The panel is headed „MMC 40160”, „MMC 40161”, „MMC 40162” and „MMC 40163”, with the differences: 40160 decade, with asynchronous CLEAR; 40161 binary, with asynchronous CLEAR; 40162 decade, with synchronous CLEAR; 40163 binary, with synchronous CLEAR [1].
Coded as (code of Întreprinderea Microelectronica for logic integrated circuits) [2]:
| Part | Meaning |
|---|---|
| M | characteristic prefix of Întreprinderea Microelectronica |
| MC | technology: CMOS (MC = CMOS, MN = NMOS, MP = PMOS) |
| 4 | circuit series: 4 = series 4XXX(X) (CMOS) |
| 0160, 0161, 0162, 0163 | circuit type (serial number of 3–4 digits) |
| –E, –F, –G, –H | DIL package and operating temperature range (series 4XXX(X)): E = plastic (−40…+85 °C), F = ceramic „frit seal” (−40…+85 °C), G = multilayer ceramic (−55…+125 °C), H = ceramic „frit seal” (−55…+125 °C); the letter is not printed in the panels |
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 36.2.1 „Circuite integrate CMOS – seria 4000” (36.2 „Circuite integrate logice MOS – produse de Întreprinderea Microelectronica”), p. 651
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 34.5 „Coduri românești”, p. 582
