MMC4069
Microelectronica
- Manufacturer
- Microelectronica
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Integrated circuits
- Documentation score
- 1/5
- Last edited
- 08 OCT 2026
Specifications
- Type
- CMOS digital integrated circuit
- Function
- hex inverter (without buffers at the inputs and outputs)
- Logic family
- CMOS (4000 series)
Sources: [1]
Description

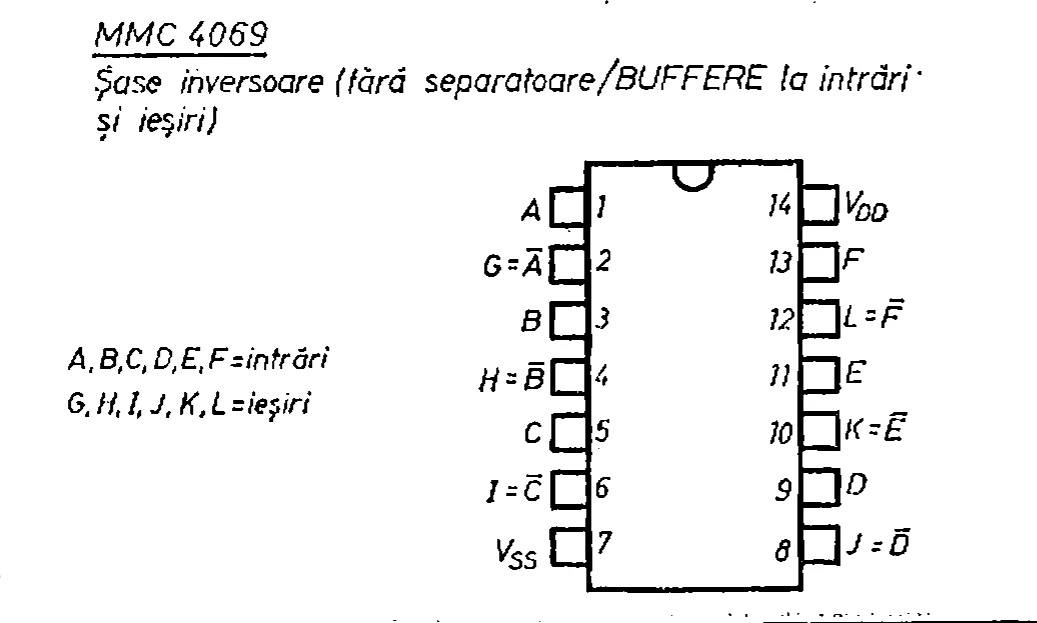

The MMC4069 is a CMOS logic integrated circuit of the 4000 series, a hex inverter (without buffers at the inputs and outputs), listed in the Agenda radioelectronistului (2nd edition, 1989) among the logic integrated circuits made in Romania by Microelectronica [1]. Its pinout is in the Gallery.
Coded as (code of Întreprinderea Microelectronica for logic integrated circuits) [2]:
| Part | Meaning |
|---|---|
| M | characteristic prefix of Întreprinderea Microelectronica |
| MC | technology: CMOS (MC = CMOS, MN = NMOS, MP = PMOS) |
| 4 | circuit series: 4 = series 4XXX(X) (CMOS) |
| 069 | circuit type (serial number of 3–4 digits) |
| –E, –F, –G, –H | DIL package and operating temperature range (series 4XXX(X)): E = plastic (−40…+85 °C), F = ceramic „frit seal” (−40…+85 °C), G = multilayer ceramic (−55…+125 °C), H = ceramic „frit seal” (−55…+125 °C); the letter is not printed in the panels |
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 36.2.1 „Circuite integrate CMOS – seria 4000” (36.2 „Circuite integrate logice MOS – produse de Întreprinderea Microelectronica”), p. 643
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 34.5 „Coduri românești”, p. 582
