MMC7106
Microelectronica
- Manufacturer
- Microelectronica
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Integrated circuits
- Documentation score
- 1/5
- Last edited
- 08 OCT 2026
Specifications
- Type
- CMOS integrated circuit
- Function
- 3 1/2-digit A/D converter (digital voltmeter)
- Logic family
- CMOS
Sources: [1]
Variants (2)
| Note | Compare | |
|---|---|---|
| MMC7106 | for liquid-crystal displays (LCD) | |
| MMC7107 | for LED displays |
Click a column heading to sort. „+” adds a variant to the comparison (MMC7106).
Description

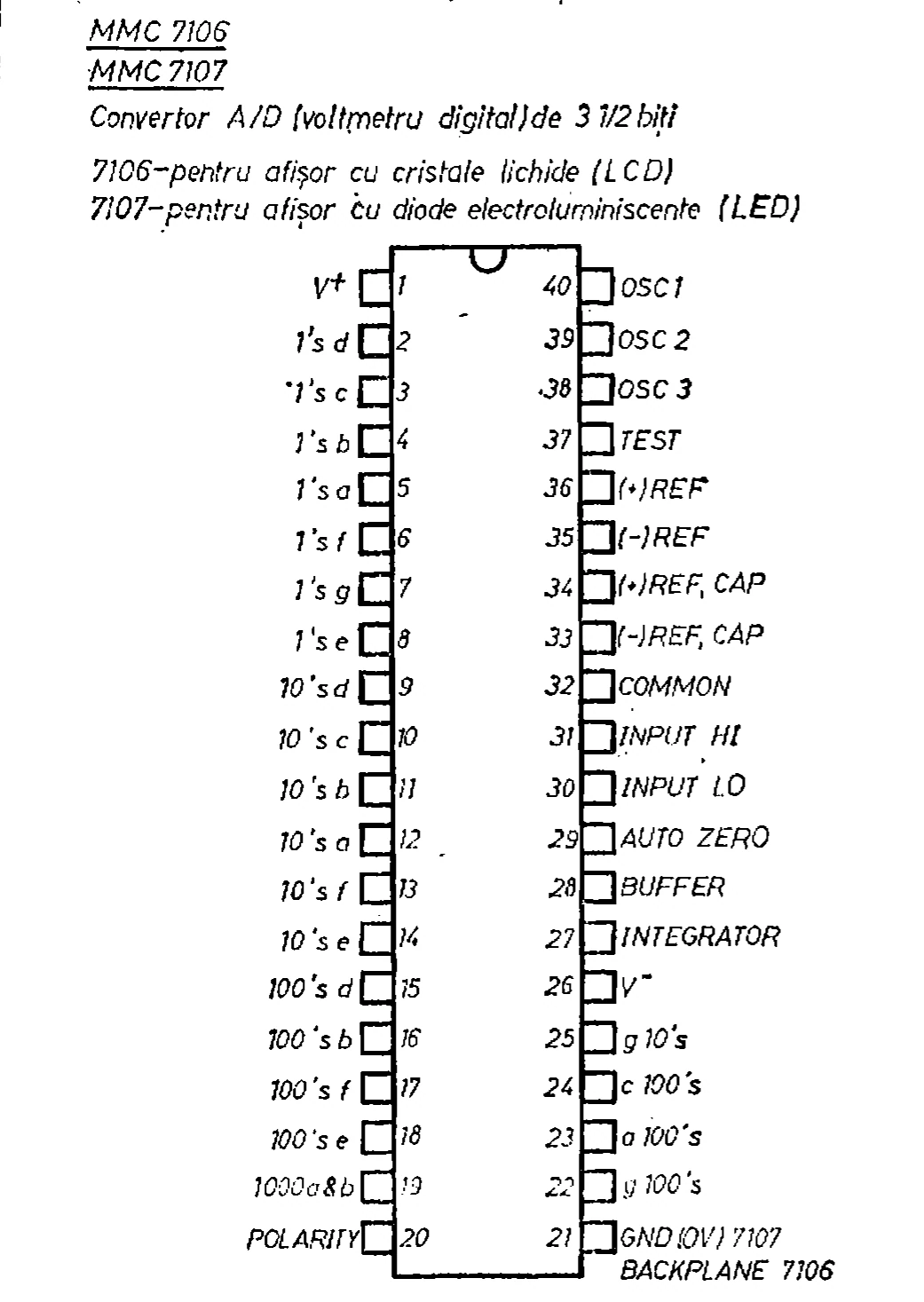

The MMC7106 is a 3 1/2-digit A/D converter (digital voltmeter), a CMOS logic integrated circuit listed in the Agenda radioelectronistului (2nd edition, 1989) among the dedicated (special-purpose) CMOS integrated circuits made in Romania by Microelectronica [1]. Its codes (MMC7106 and MMC7107) are in the Variants table; the pinout is in the Gallery.
The panel adds: „7106 – pentru afișor cu cristale lichide (LCD); 7107 – pentru afișor cu diode electroluminiscente (LED)” (the MMC 7106 drives a liquid-crystal display, the MMC 7107 a LED display); the converter is described as „de 3 1/2 biți” (as printed, for 3 1/2 digits) [1].
Coded as (code of Întreprinderea Microelectronica for logic integrated circuits) [2]:
| Part | Meaning |
|---|---|
| M | characteristic prefix of Întreprinderea Microelectronica |
| MC | technology: CMOS (MC = CMOS, MN = NMOS, MP = PMOS) |
| 7106, 7107 | series and type of the circuit |
Gallery
No image availableDocuments
No documents available yet.
Used in (1)
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 36.2.2 „Circuite integrate CMOS dedicate/speciale” (36.2 „Circuite integrate logice MOS – produse de Întreprinderea Microelectronica”), p. 659
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 34.5 „Coduri românești”, p. 582
