MMP02
Microelectronica
- Manufacturer
- Microelectronica
- Country
- Romania
- Year
- Unknown
- Category
- Components
- Type
- Integrated circuits
- Documentation score
- 1/5
- Last edited
- 08 OCT 2026
Specifications
- Type
- PMOS integrated circuit
- Function
- dual 16-bit static shift register
- Logic family
- PMOS
Sources: [1]
Description
The MMP02 is a dual 16-bit static shift register, a PMOS logic integrated circuit listed in the Agenda radioelectronistului (2nd edition, 1989) among the PMOS integrated circuits made in Romania by Microelectronica [1]. Its pinout is in the Gallery.

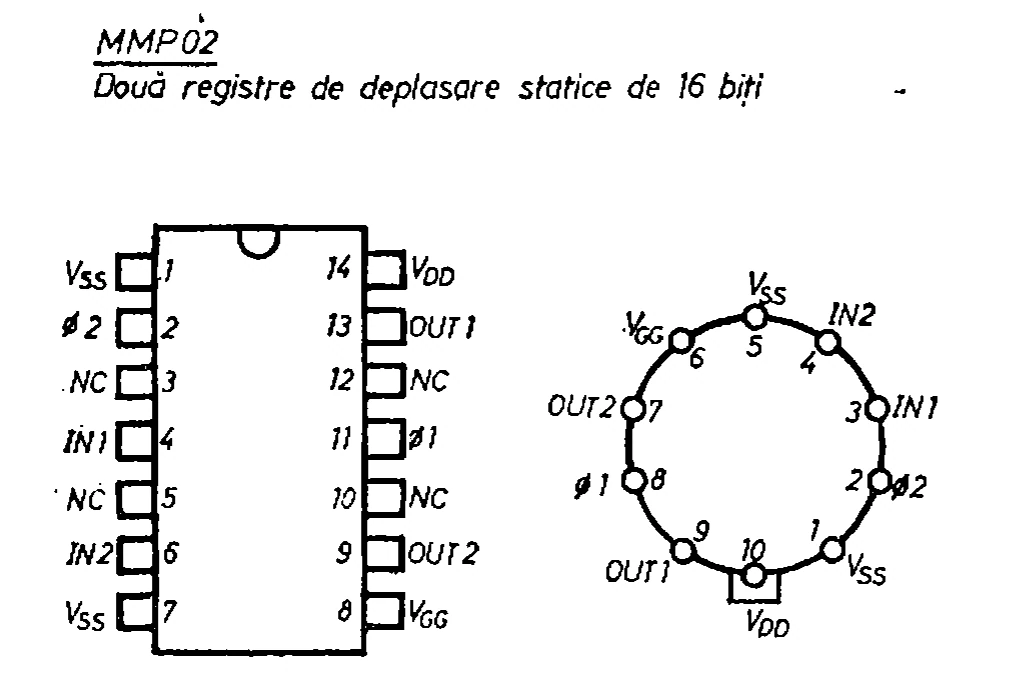

The panel shows the pinout in two packages: a 14-pin dual-in-line package and a round package with 10 leads [1].
Coded as (code of Întreprinderea Microelectronica for logic integrated circuits) [2]:
| Part | Meaning |
|---|---|
| M | characteristic prefix of Întreprinderea Microelectronica |
| MP | technology: PMOS (MC = CMOS, MN = NMOS, MP = PMOS) |
| 02 | series and type of the circuit |
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 36.2.4 „Circuite integrate PMOS” (36.2 „Circuite integrate logice MOS – produse de Întreprinderea Microelectronica”), p. 662
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 34.5 „Coduri românești”, p. 582
