Specifications
- Function
- hearing-aid amplifier
- Package
- TO-86
- Supply voltage (VS)
- 3 V (see Variants)
- Max. internal power dissipation (Pdi)
- 100 mW (see Variants)
- Output voltage range (VOR)
- <0.7 V (see Variants)
- Voltage gain (Avd, G)
- 54…57 dB (see Variants)
- Bandwidth at −3 dB (B−3dB)
- 15 kHz (see Variants)
- Distortion (d)
- 5 % (see Variants)
- Noise figure (NF)
- 6 dB (see Variants)
Variants (2)
| Note | Compare | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| ROB01 | 3 V | 100 | <0.7 V | 54…57 dB | 15 | 5 | 6 | ||
| ROB02 | — | — | — | — | — | — | — | only in the 1st edition (1983) |
Click a column heading to sort. „+” adds a variant to the comparison (ROB01).
Description

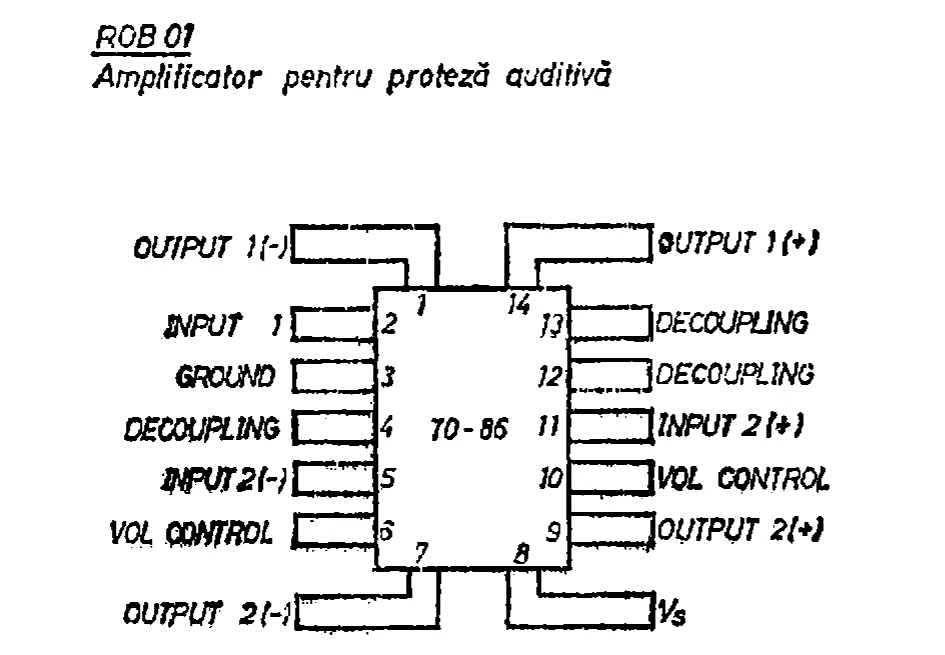

The ROB01 is a series of hearing-aid amplifiers, analog integrated circuits listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by ICCE (CCSIT-CE), in a TO-86 package [1]. Its codes (ROB01 and ROB02) are in the Variants table; the pinout is in the Gallery.
The 1st edition of the Agenda (1983) lists it in one row with the ROB02, „ROB 01*; 02*”, as a hearing-aid amplifier in a TO-86 package; the 2nd edition lists only the ROB01 [3].
Coded as (Romanian system, internal CCSIT-CE code) [2]:
| Part | Meaning |
|---|---|
| RO | manufacturer’s code: RO (Romania) |
| B | bipolar integrated circuit |
| 01 | identification number |
The Agenda radioelectronistului (2nd edition, 1989) gives the parameters of the ROB01 in the table of audio-, low- and video-frequency (AF/JF/VF) amplifiers made in Romania by IPRS Băneasa and CCSIT-CE (section 35.3) [4]: absolute maximum ratings and electrical characteristics over the full temperature range; they are in the Variants table.
Notes on the table of section 35.3 [4]: Values printed with „<” (maximum) or „>” (minimum) are given here without the sign: „<” for the distortion (d).
Gallery
No image availableDocuments
No documents available yet.
References
- [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.2 „Circuite integrate analogice – producător: CCSIT-CE”, p. 598
- [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 26.7 „Sistemul românesc (codul intern CCSIT-CE)”, p. 486
- [3]N. Drăgulănescu – „Agenda radioelectronistului”, 1st edition, Editura Tehnică, 1983, section 3.10.2.2 „Circuite integrate analogice (liniare)”, B) „Produse I.C.C.E.”, p. 524
- [4]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.3 „Parametrii caracteristici ai unor circuite integrate analogice”, table C „Amplificatoare de AF/JF/VF produse în R.S.R.”, p. 622
