General view

ROB1468

ICCE

Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
06 OCT 2026

Specifications

Function
dual voltage regulator
Package
TO-100 and TO-116
Max. internal power dissipation (Pdi)
670/500 mW
Max. input voltage (VI)
±30 V
Input voltage range (VIR)
±30 V
Output voltage range (VOR)
±14.5…±15.5 (±8…±20) V
Input–output voltage differential (VI − VO)
2 V
Line regulation (KU)
10…20 mV
Load regulation (KL)
10…30 mV
Temperature stability (KT)
1%
Quiescent current (IB)
4/3 mA
Short-circuit current limit (Ios)
<60 (<100) mA
Output noise voltage (VNO)
100 µV rms
Ripple rejection (RR)
75 dB

Sources: [1][3]

Description

The ROB1468 is a dual voltage regulator, an analog integrated circuit listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by ICCE (CCSIT-CE), in TO-100 and TO-116 packages [1]. Its pinout is in the Gallery.

Coded as (Romanian system, internal CCSIT-CE code) [2]:

Part Meaning
RO manufacturer’s code: RO (Romania)
B bipolar integrated circuit
1468 identification number

The Agenda radioelectronistului (2nd edition, 1989) gives the parameters of the ROB1468 in the table of DC voltage stabilizers made in Romania by IPRS Băneasa and CCSIT-CE (section 35.3) [3]: absolute maximum ratings and electrical characteristics over the full temperature range; they are in the specifications.

Notes on the table of section 35.3 [3]: KU, KL and KT are given with the units printed in the table (the column headings give % VO). The column of the minimum output current gives, where marked with a footnote, the quiescent current IB.

Gallery

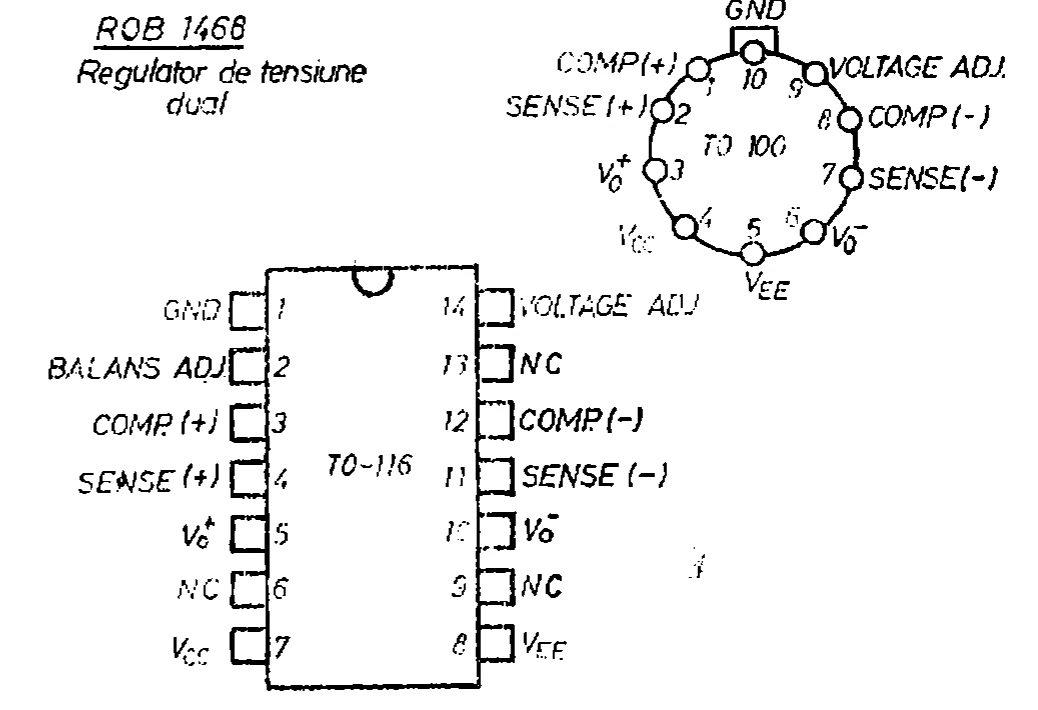

ICCE ROB1468: PinoutNo image available
Pinout

Documents

No documents available yet.

References

  1. [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.2 „Circuite integrate analogice – producător: CCSIT-CE”, p. 605
  2. [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 26.7 „Sistemul românesc (codul intern CCSIT-CE)”, p. 486
  3. [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.3 „Parametrii caracteristici ai unor circuite integrate analogice”, table C „Stabilizatoare de tensiune continuă produse în R.S.R.”, p. 618
