Specifications
- Function
- positive voltage stabilizer
- Package
- TO-99
- Max. internal power dissipation (Pdi)
- 500 mW
- Max. input voltage (VI)
- 40 V
- Max. input–output voltage differential (VI − VO max)
- 30 V
- Input voltage range (VIR)
- 8.5…40 V
- Output voltage range (VOR)
- 4.5…30 V
- Input–output voltage differential (VI − VO)
- 3…30 V
- Line regulation (KU)
- 0.015…0.06%/V
- Load regulation (KL)
- 0.02…0.1%
- Temperature stability (KT)
- 0.3…1%
- Quiescent current (IB)
- 0.8…2 mA
- Output noise voltage (VNO)
- 0.002…0.005% VO
- Ripple rejection (RR)
- 0.003…0.01% VO
Description

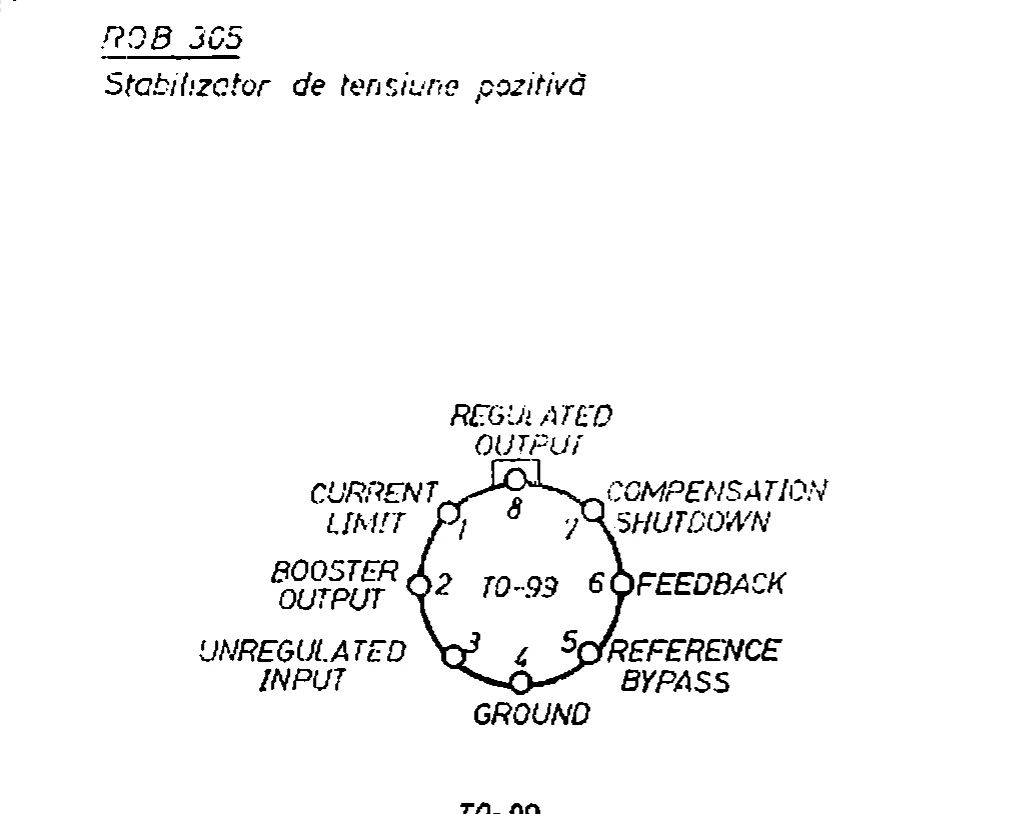

The ROB305 is a positive voltage stabilizer, an analog integrated circuit listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by ICCE (CCSIT-CE), in a TO-99 package [1]. Its pinout is in the Gallery.
Coded as (Romanian system, internal CCSIT-CE code) [2]:
| Part | Meaning |
|---|---|
| RO | manufacturer’s code: RO (Romania) |
| B | bipolar integrated circuit |
| 305 | identification number |
The Agenda radioelectronistului (2nd edition, 1989) gives the parameters of the ROB305 in the table of DC voltage stabilizers made in Romania by IPRS Băneasa and CCSIT-CE (section 35.3) [3]: absolute maximum ratings and electrical characteristics over the full temperature range; they are in the specifications.
Notes on the table of section 35.3 [3]: KU, KL and KT are given with the units printed in the table (the column headings give % VO). The column of the minimum output current gives, where marked with a footnote, the quiescent current IB.
