General view

ROB3080

ICCE

Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
06 OCT 2026

Specifications

Function
operational transconductance amplifier
Package
TO-116, TO-99 and MP-48
Supply voltage (VS)
±18 V
Max. internal power dissipation (Pdi)
425 mW
Max. differential input voltage (VID)
±5 V
Input offset voltage (VIO)
5 mV
Input offset current (IIO)
600 nA
Input bias current (IIB)
5000 nA
Input resistance (Ri)
0.026 MΩ
Large-signal transconductance (gm)
13000 µA/V
Supply current (IS)
1.2 mA
Common-mode rejection ratio (CMRR)
110 dB

Sources: [1][3]

Description

The ROB3080 is an operational transconductance amplifier, an analog integrated circuit listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by ICCE (CCSIT-CE), in TO-116, TO-99 and MP-48 packages [1]. Its pinout is in the Gallery.

Coded as (Romanian system, internal CCSIT-CE code) [2]:

Part Meaning
RO manufacturer’s code: RO (Romania)
B bipolar integrated circuit
3080 identification number

The Agenda radioelectronistului (2nd edition, 1989) gives the parameters of the ROB3080 in the table of operational amplifiers and voltage comparators made in Romania by IPRS Băneasa and CCSIT-CE (section 35.3) [3]: absolute maximum ratings and electrical characteristics over the full temperature range; they are in the specifications.

Notes on the table of section 35.3 [3]: Values printed with „<” (maximum) or „>” (minimum) are given here without the sign: „<” for VIO, IIO and IIB. The gain column gives, with a footnote, the large-signal transconductance gm (13·10³ µA/V).

Gallery

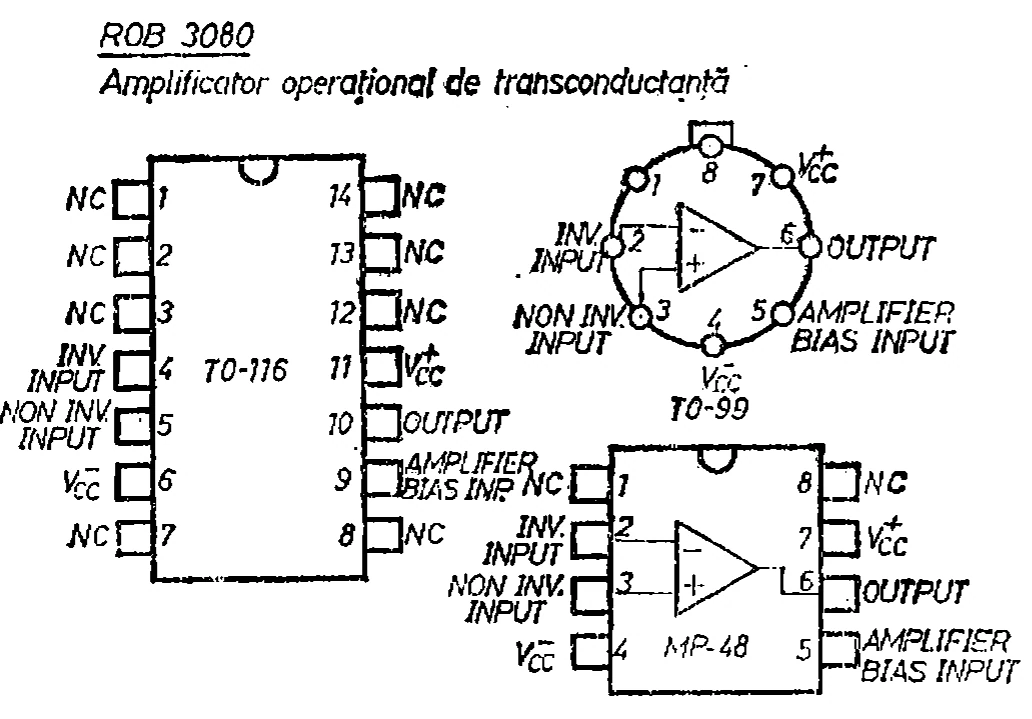

ICCE ROB3080: PinoutNo image available
Pinout

Documents

No documents available yet.

References

  1. [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.2 „Circuite integrate analogice – producător: CCSIT-CE”, p. 607
  2. [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 26.7 „Sistemul românesc (codul intern CCSIT-CE)”, p. 486
  3. [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.3 „Parametrii caracteristici ai unor circuite integrate analogice”, table C „Amplificatoare operaționale și comparatoare de tensiune produse în R.S.R.”, p. 615
