General view

ROB311

ICCE

Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
06 OCT 2026

Specifications

Function
precision voltage comparator
Package
TO-116, TO-99 and MP-48
Supply voltage (VS)
36 V
Max. internal power dissipation (Pdi)
680/625 mW
Max. differential input voltage (VID)
±30 V
Max. input voltage (VI)
±15 V
Input offset voltage (VIO)
7.5 mV
Input offset current (IIO)
30 nA
Input bias current (IIB)
250 nA
Open-loop voltage gain (AV)
200000
Output voltage swing (VOS)
40 V
Supply current (IS)
7.5/5 mA
Response time
200 ns

Sources: [1][3]

Description

The ROB311 is a precision voltage comparator, an analog integrated circuit listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by ICCE (CCSIT-CE), in TO-116, TO-99 and MP-48 packages [1]. Its pinout is in the Gallery.

Coded as (Romanian system, internal CCSIT-CE code) [2]:

Part Meaning
RO manufacturer’s code: RO (Romania)
B bipolar integrated circuit
311 identification number

The Agenda radioelectronistului (2nd edition, 1989) gives the parameters of the ROB311 in the table of operational amplifiers and voltage comparators made in Romania by IPRS Băneasa and CCSIT-CE, among the voltage comparators (section 35.3) [3]: absolute maximum ratings and electrical characteristics over the full temperature range; they are in the specifications.

Notes on the table of section 35.3 [3]: Values printed with „<” (maximum) or „>” (minimum) are given here without the sign: „<” for VIO, IIO and IIB. The response time is measured with VI = 100 mV and a 5 mV overdrive.

Gallery

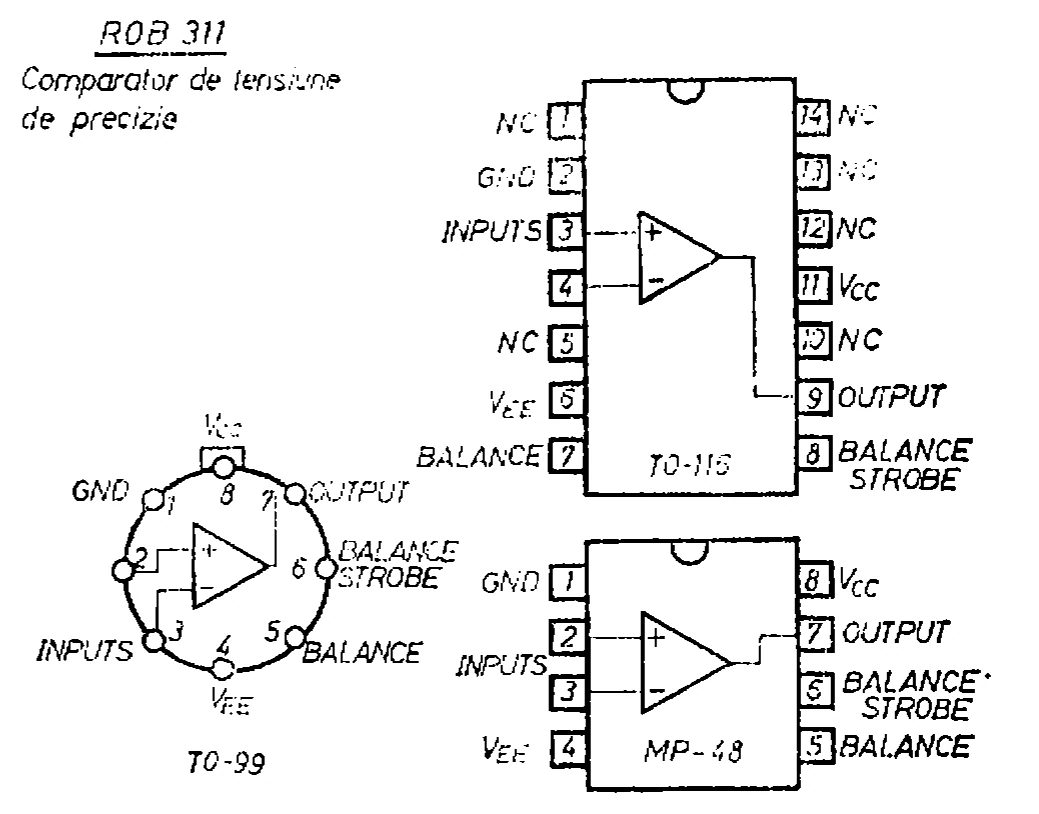

ICCE ROB311: PinoutNo image available
Pinout

Documents

No documents available yet.

References

  1. [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.2 „Circuite integrate analogice – producător: CCSIT-CE”, p. 601
  2. [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 26.7 „Sistemul românesc (codul intern CCSIT-CE)”, p. 486
  3. [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.3 „Parametrii caracteristici ai unor circuite integrate analogice”, table C „Amplificatoare operaționale și comparatoare de tensiune produse în R.S.R.”, p. 615
