Specifications
- Function
- adjustable three-terminal voltage stabilizer
- Package
- TO-39 and TO-3
- Max. input–output voltage differential (VI − VO max)
- 40 V
- Output voltage range (VOR)
- 1.25…37 V
- Line regulation (KU)
- 0.02…0.07%/V
- Load regulation (KL)
- 20…70 mV (0.1…1.5%)
- Temperature stability (KT)
- 1%
- Minimum output current (IO min)
- 5…10 mA
- Short-circuit current limit (Ios)
- 500…1500 mA
- Ripple rejection (RR)
- 66…80 dB
Description

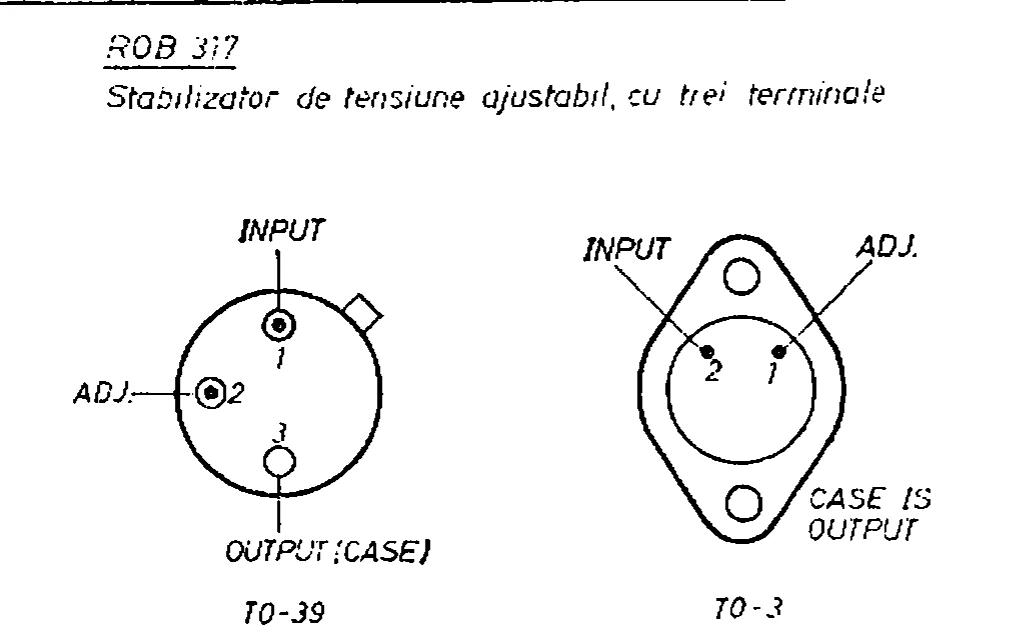

The ROB317 is an adjustable three-terminal voltage stabilizer, an analog integrated circuit listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by ICCE (CCSIT-CE), in TO-39 and TO-3 packages [1]. Its pinout is in the Gallery.
Coded as (Romanian system, internal CCSIT-CE code) [2]:
| Part | Meaning |
|---|---|
| RO | manufacturer’s code: RO (Romania) |
| B | bipolar integrated circuit |
| 317 | identification number |
The Agenda radioelectronistului (2nd edition, 1989) gives the parameters of the ROB317 in the table of DC voltage stabilizers made in Romania by IPRS Băneasa and CCSIT-CE (section 35.3) [3]: absolute maximum ratings and electrical characteristics over the full temperature range; they are in the specifications.
Notes on the table of section 35.3 [3]: KU, KL and KT are given with the units printed in the table (the column headings give % VO).
