General view

ROB709

ICCE

Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
06 OCT 2026

Specifications

Function
general-purpose operational amplifier
Package
TO-116
Supply voltage (VS)
±18 V
Max. internal power dissipation (Pdi)
300 mW
Max. differential input voltage (VID)
±5 V
Max. input voltage (VI)
±5 V
Input offset voltage (VIO)
5 mV
Input offset current (IIO)
500 nA
Input bias current (IIB)
2000 nA
Input resistance (Ri)
0.035 MΩ
Open-loop voltage gain (AV)
30000
Output voltage swing (VOS)
±13 V
Common-mode rejection ratio (CMRR)
90 dB
Supply voltage rejection ratio (SVRR)
200 µV/V

Sources: [1][3]

Description

The ROB709 is a general-purpose operational amplifier, an analog integrated circuit listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by ICCE (CCSIT-CE), in a TO-116 package [1]. Its pinout is in the Gallery.

Coded as (Romanian system, internal CCSIT-CE code) [2]:

Part Meaning
RO manufacturer’s code: RO (Romania)
B bipolar integrated circuit
709 identification number

The Agenda radioelectronistului (2nd edition, 1989) gives the parameters of the ROB709 in the table of operational amplifiers and voltage comparators made in Romania by IPRS Băneasa and CCSIT-CE (section 35.3) [3]: absolute maximum ratings and electrical characteristics over the full temperature range; they are in the specifications.

Notes on the table of section 35.3 [3]: Values printed with „<” (maximum) or „>” (minimum) are given here without the sign: „<” for VIO, IIO and IIB.

Gallery

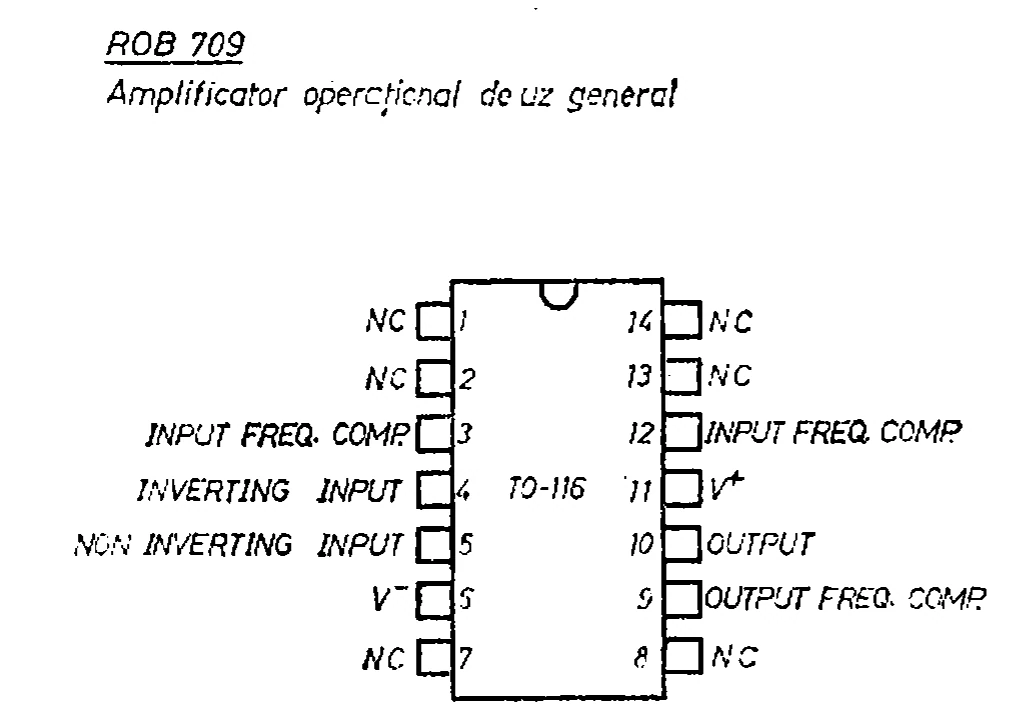

ICCE ROB709: PinoutNo image available
Pinout

Documents

No documents available yet.

References

  1. [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.2 „Circuite integrate analogice – producător: CCSIT-CE”, p. 604
  2. [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 26.7 „Sistemul românesc (codul intern CCSIT-CE)”, p. 486
  3. [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.3 „Parametrii caracteristici ai unor circuite integrate analogice”, table C „Amplificatoare operaționale și comparatoare de tensiune produse în R.S.R.”, p. 615
