General view

ROB74

ICCE

Year
Unknown
Category
Components
Type
Integrated circuits
Documentation score
1/5
Last edited
06 OCT 2026

Specifications

Function
operational amplifier with JFET inputs
Package
TO-116, TO-99 and MP-48
Supply voltage (VS)
±18 V
Max. internal power dissipation (Pdi)
500 mW
Max. differential input voltage (VID)
±30 V
Max. input voltage (VI)
±15 V
Input bias current (IIB)
2 nA
Output voltage swing (VOS)
±13 V
Supply current (IS)
8 mA
Slew rate (SR)
6 V/µs
Common-mode rejection ratio (CMRR)
80 dB

Sources: [1][3]

Description

The ROB74 is an operational amplifier with JFET inputs, an analog integrated circuit listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by ICCE (CCSIT-CE), in TO-116, TO-99 and MP-48 packages [1]. Its pinout is in the Gallery.

Coded as (Romanian system, internal CCSIT-CE code) [2]:

Part Meaning
RO manufacturer’s code: RO (Romania)
B bipolar integrated circuit
74 identification number

The Agenda radioelectronistului (2nd edition, 1989) gives the parameters of the ROB74 in the table of operational amplifiers and voltage comparators made in Romania by IPRS Băneasa and CCSIT-CE (section 35.3) [3]: absolute maximum ratings and electrical characteristics over the full temperature range; they are in the specifications.

Notes on the table of section 35.3 [3]: Values printed with „<” (maximum) or „>” (minimum) are given here without the sign: „<” for IIB and IS. VIO and IIO read „<130” and „<0.3” or „<190” and „<0.9” (the digit is damaged in the scan) and are left out. Ri and AV are printed as powers of ten whose exponents are unclear in the scan, and are left out.

Gallery

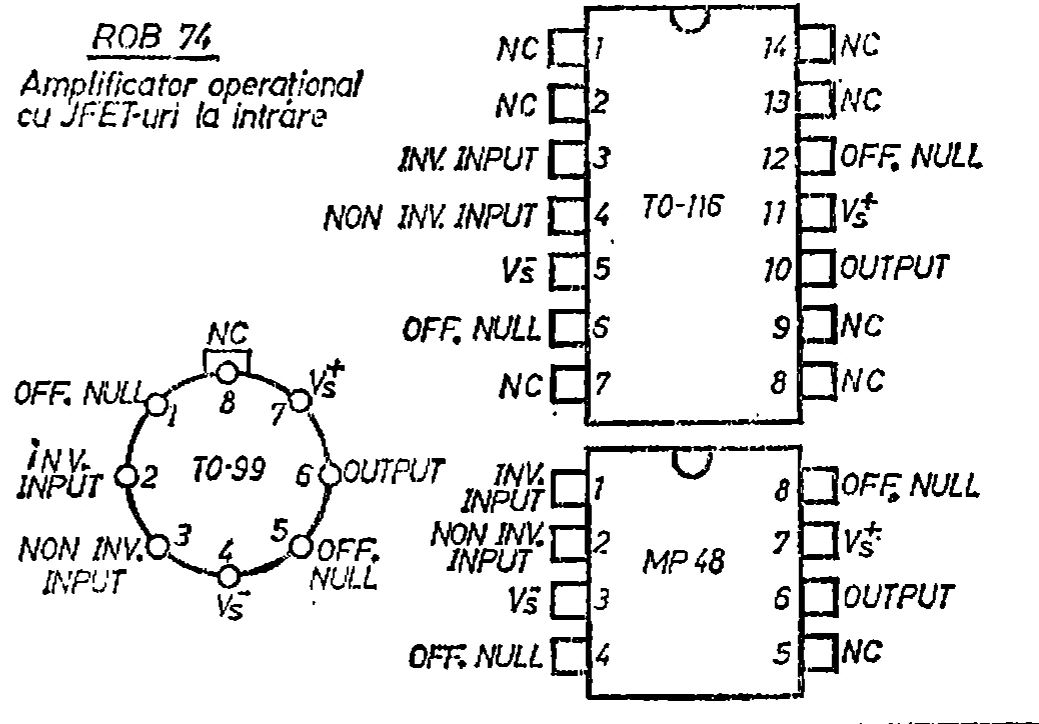

ICCE ROB74: PinoutNo image available
Pinout

Documents

No documents available yet.

References

  1. [1]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.2 „Circuite integrate analogice – producător: CCSIT-CE”, p. 599
  2. [2]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 26.7 „Sistemul românesc (codul intern CCSIT-CE)”, p. 486
  3. [3]N. Drăgulănescu – „Agenda radioelectronistului”, 2nd edition, Editura Tehnică, 1989, section 35.3 „Parametrii caracteristici ai unor circuite integrate analogice”, table C „Amplificatoare operaționale și comparatoare de tensiune produse în R.S.R.”, p. 615
