Specifications
- Function
- dual operational amplifier
- Package
- TO-116
- Supply voltage (VS)
- ±9 V
- Max. internal power dissipation (Pdi)
- 500 mW
- Max. differential input voltage (VID)
- ±5 V
- Input offset voltage (VIO)
- 7.5 mV
- Input offset current (IIO)
- 1500 nA
- Input bias current (IIB)
- 10000 nA
- Open-loop voltage gain (AV)
- 7000
- Output voltage swing (VOS)
- ±2.7 V
- Supply current (IS)
- 15 mA
Description

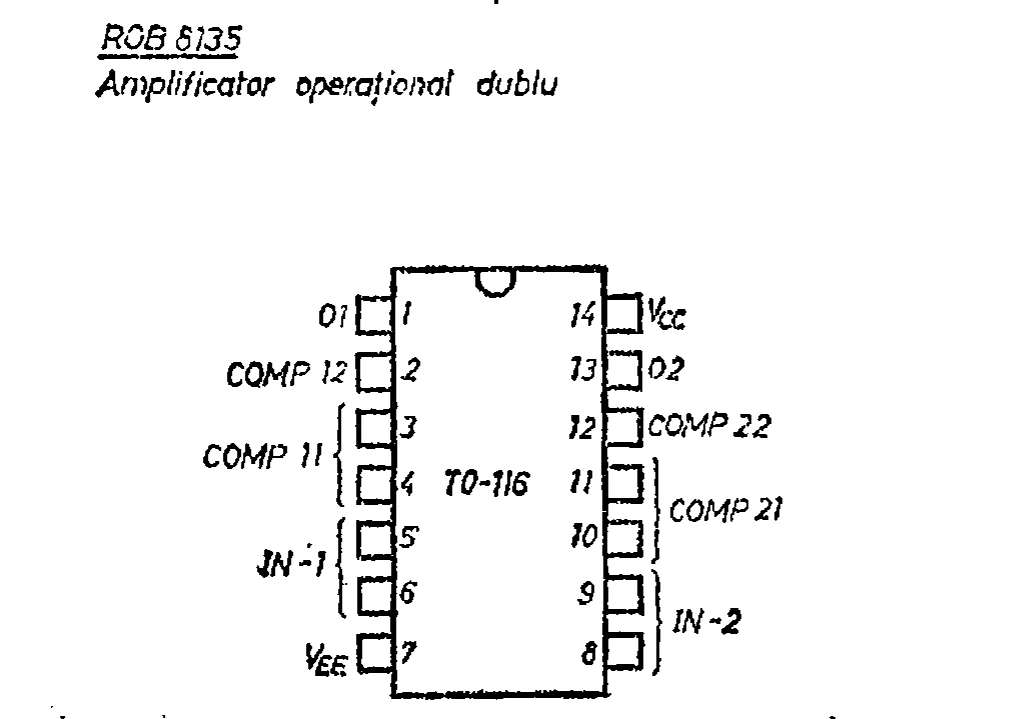

The ROB8135 is a dual operational amplifier, an analog integrated circuit listed in the Agenda radioelectronistului (2nd edition, 1989) among the integrated circuits made in Romania by ICCE (CCSIT-CE), in a TO-116 package [1]. Its pinout is in the Gallery.
Coded as (Romanian system, internal CCSIT-CE code) [2]:
| Part | Meaning |
|---|---|
| RO | manufacturer’s code: RO (Romania) |
| B | bipolar integrated circuit |
| 8135 | identification number |
The Agenda radioelectronistului (2nd edition, 1989) gives the parameters of the ROB8135 in the table of operational amplifiers and voltage comparators made in Romania by IPRS Băneasa and CCSIT-CE (section 35.3) [3]: absolute maximum ratings and electrical characteristics over the full temperature range; they are in the specifications.
Notes on the table of section 35.3 [3]: Values printed with „<” (maximum) or „>” (minimum) are given here without the sign: „<” for VIO, IIO and IIB.
